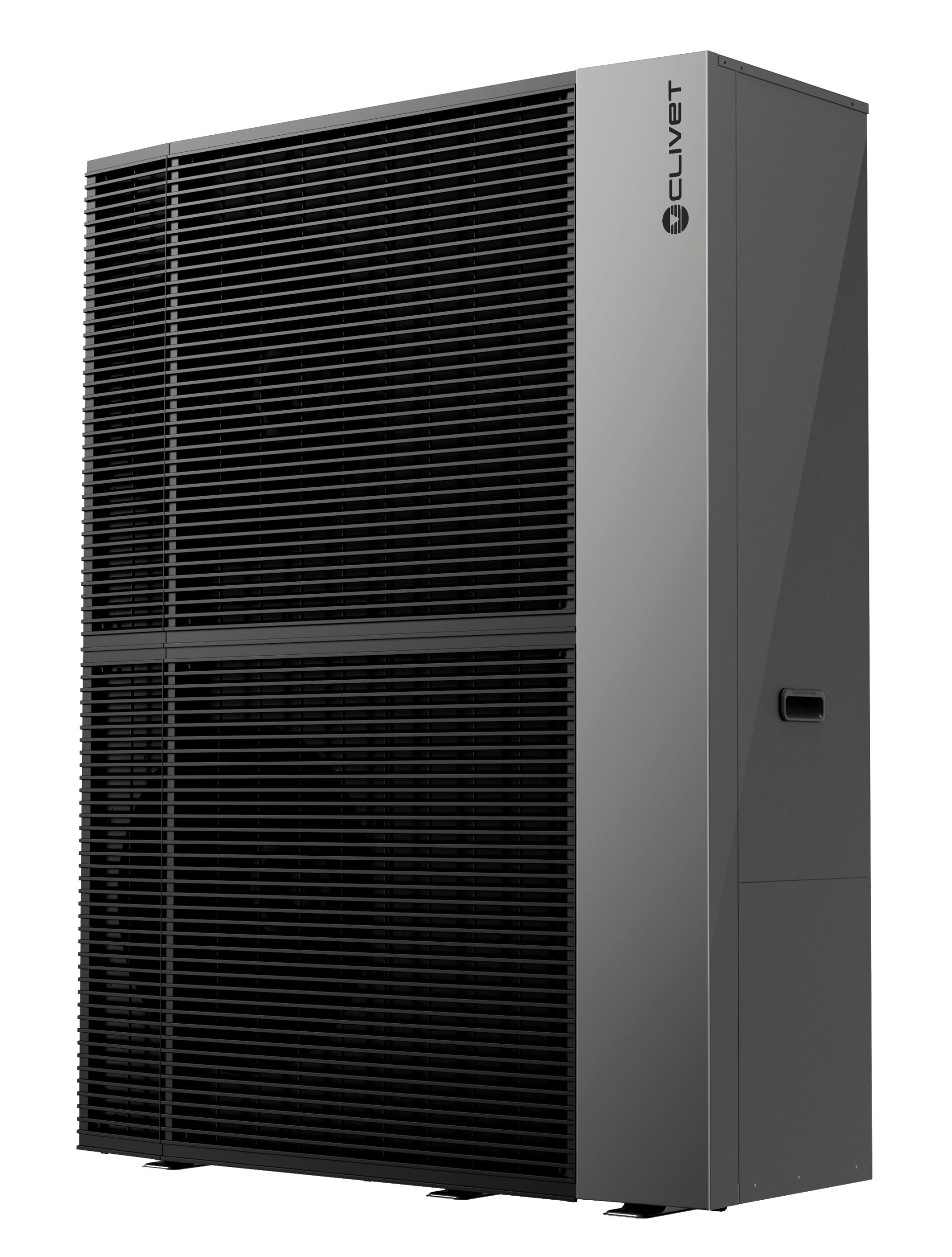

Image courtesy of Clivet · click photo to enlarge

Clivet Edge Pro L 12.1

Specifications and technical data

ASHP (Monobloc)ResidentialR29025 kW

Manufacturer	Clivet
Model	Edge Pro L 12.1
Model code	WiSAN-PMP 1 S 12.1
Heat pump type	ASHP (Monobloc)
Application	Residential All Residential heat pumps →
Refrigerant	R290 All R290 heat pumps →
Mode	Heating & cooling
Heating capacity	25 kW
Max heating output (low temp)	25 kW at A7/W35
COP (heating)	4.77 at A7/W35
SCOP (heating)	3.84 at W35
Operating range (air)	from -25 °C
Heating flow temperature	up to 85 °C
Electrical supply	380-415V (Three Phase)
Cooling capacity	26 kW
Max cooling output (high temp)	26 kW at A35/W7
EER (cooling)	3.1 at A35/W7
SEER (cooling)	5.21 at W7
Dimensions (H×W×D)	1816 × 1388 × 556 mm
Operational Weight	279 kg
Sound power level	68 dB(A) (Sound Power LW(A))
Data added	2026-07-22
Data source	Manufacturer Data Sheet
Verification	Verified by a human

Free data sheet (PDF) →

View manufacturer page →

Clivet Edge Pro L 12.1 is a 25.0 kW air source heat pump, providing heating and cooling, using R290 refrigerant.
