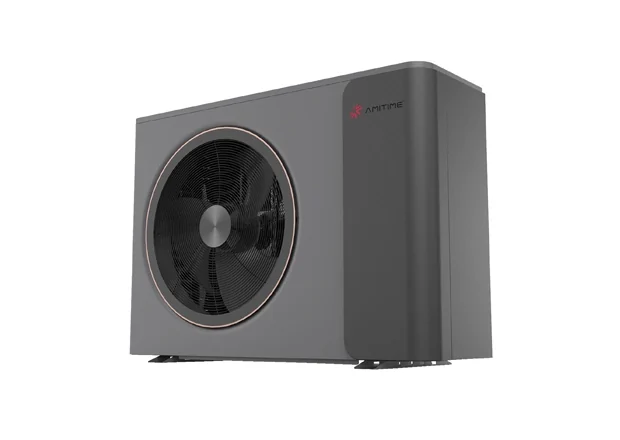

Amitime HeatLITE M-FM Range (5–9.7 kW)

Specifications and technical data

Air Source (ASHP)ResidentialR325–9.7 kW

Manufacturer	Amitime
Model	HeatLITE M-FM Range
Model code	HeatLITE09M-FM
Heat pump type	Air Source (ASHP) All Air Source heat pumps →
Application	Residential All Residential heat pumps →
Refrigerant	R32 All R32 heat pumps →
Mode	Heating & cooling
Heating capacity	5–9.7 kW
Max heating output (low temp)	8.9 kW at A7/W45
COP (heating)	4.04 at A7/W35
SCOP (heating)	4.53 at W35
Operating range (air)	-25 to 43 °C
Heating flow temperature	25–58 °C
Electrical supply	220-240V (Single Phase)
Cooling capacity	3.1–9.1 kW
Max cooling output (high temp)	7.9 kW at A35/W7
Cooling flow temperature	7–20 °C
EER (cooling)	2.47 at A35/W7
Dimensions (H×W×D)	845 × 1175 × 380 mm
Operational Weight	79 kg
Sound power level	61 dB(A) (Sound Power LW(A))
Data added	2026-08-30
Data source	Manufacturer website
Verification	Verified by a human

Free data sheet (PDF) →

Check noise at a neighbour’s window (MCS 020 a) →

View manufacturer page →

Amitime HeatLITE09M-FM air-to-water heat pump, monobloc unit with a frame-mounted outdoor unit only, no indoor unit. 9.7 kW heating at A7/W35 with a COP of 4.04 and SCOP of 4.53 at W35. R32 refrigerant, DC inverter rotary compressor modulating from 5.0 to 9.7 kW. Maximum flow temperature 58 C, operation from -25 to 43 C ambient.
