Amitime PowerSTAR Series (27.4–89.6 kW)

Specifications and technical data

Air Source (ASHP)CommercialR410A27.4–89.6 kW

Manufacturer	Amitime
Model	PowerSTAR Series
Model code	PowerSTAR 90M
Heat pump type	Air Source (ASHP) All Air Source heat pumps →
Application	Commercial All Commercial heat pumps →
Refrigerant	R410A All R410A heat pumps →
Mode	Heating & cooling
Heating capacity	27.4–89.6 kW
Max heating output (low temp)	89.5 kW at A7/W45
COP (heating)	3.69 at A7/W35
SCOP (heating)	4.2 at W35
Heating flow temperature	20–60 °C
Electrical supply	380-415V (Three Phase)
Cooling capacity	23.4–66 kW
Max cooling output (high temp)	61.2 kW at A35/W7
Cooling flow temperature	7–18 °C
EER (cooling)	2.61 at A35/W7
Dimensions (H×W×D)	1650 × 2160 × 1200 mm
Operational Weight	600 kg
Sound power level	69 dB(A) (Sound Power LW(A))
Data added	2026-08-30
Data source	Manufacturer website
Verification	Verified by a human

Free data sheet (PDF) →

Check noise at a neighbour’s window (MCS 020 a) →

View manufacturer page →

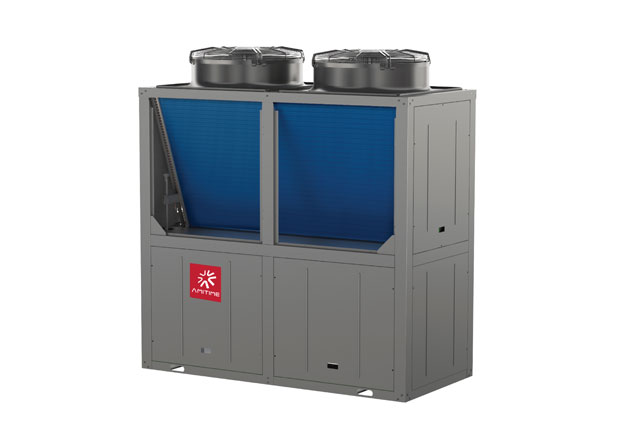

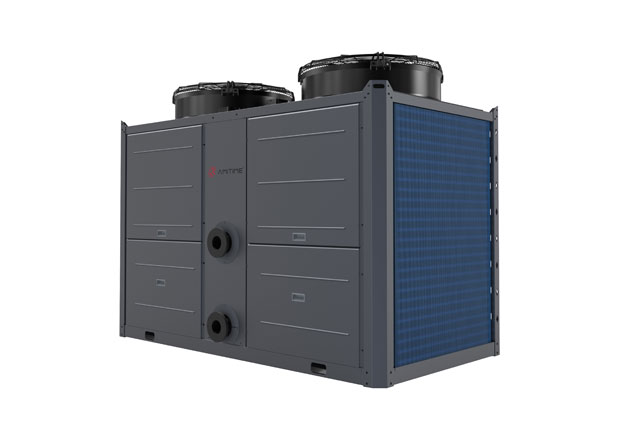

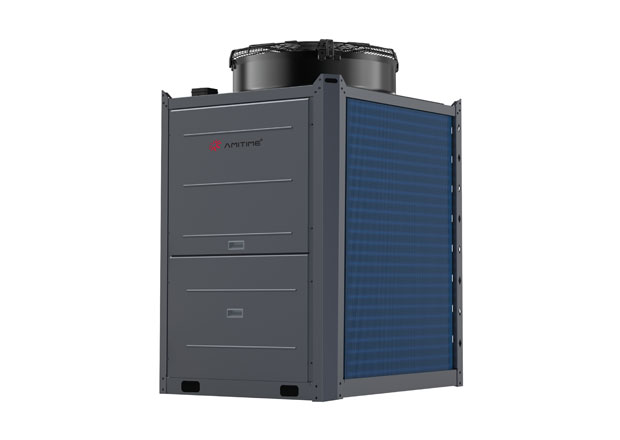

Amitime PowerSTAR 90M air-to-water commercial heat pump, monobloc unit with a wall-mounted control box. 89.6 kW heating at A7/W35 with a COP of 3.69 and SCOP of 4.2 at low temperature. R410A refrigerant, Mitsubishi Electric scroll, inverter + EVI. Maximum flow temperature 60 C.
