Amitime PowerSTAR+ Series Commercial Heat Pumps (12.7–38.6 kW)

Specifications and technical data

Air Source (ASHP)CommercialR29012.7–38.6 kW

Manufacturer	Amitime
Model	PowerSTAR+ Series Commercial Heat Pumps
Model code	PowerSTAR+ 40M
Heat pump type	Air Source (ASHP)
Application	Commercial
Refrigerant	R290
Mode	Heating & cooling
Heating capacity	12.7–38.6 kW
Max heating output (low temp)	38.2 kW at A7/W45
COP (heating)	3.14 at A7/W35
SCOP (heating)	4.86 at W35
Operating range (air)	-25 to 43 °C
Heating flow temperature	20–75 °C
Electrical supply	380-415V (Three Phase)
Cooling capacity	4.5–34.2 kW
Max cooling output (high temp)	25.1 kW at A35/W7
Cooling flow temperature	7–25 °C
EER (cooling)	2.67 at A35/W7
Dimensions (H×W×D)	1620 × 1170 × 970 mm
Operational Weight	320 kg
Data added	2026-08-30
Data source	Manufacturer website

View manufacturer page →

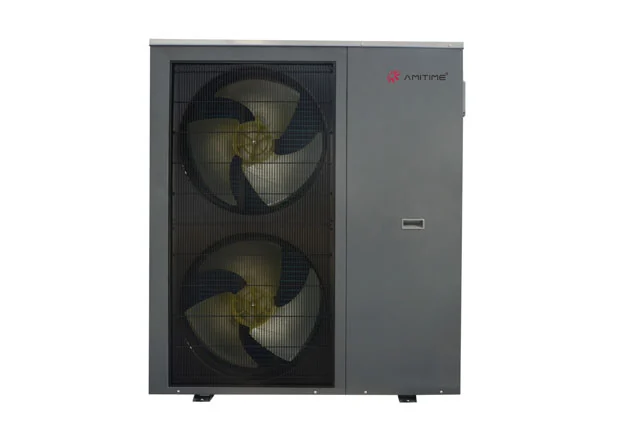

Amitime PowerSTAR+ 40M air-to-water heat pump, monobloc unit with a supplied with a wall-mounted control box. 38.6 kW heating at A7/W35 with a COP of 3.14 and SCOP of 4.86 at W35. R290 refrigerant, DC inverter scroll compressor modulating from 12.7 to 38.6 kW. Maximum flow temperature 75 C, operation from -25 to 43 C ambient.
