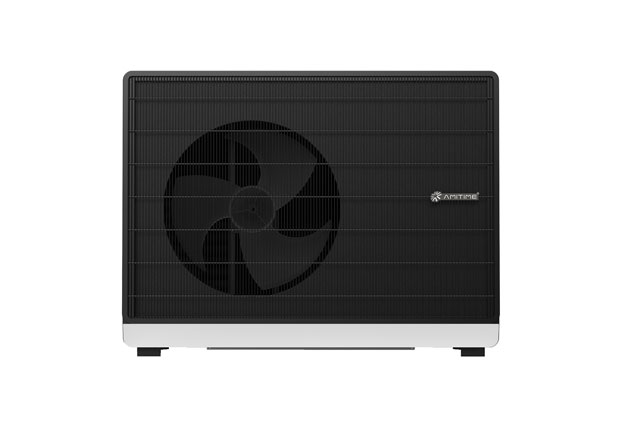

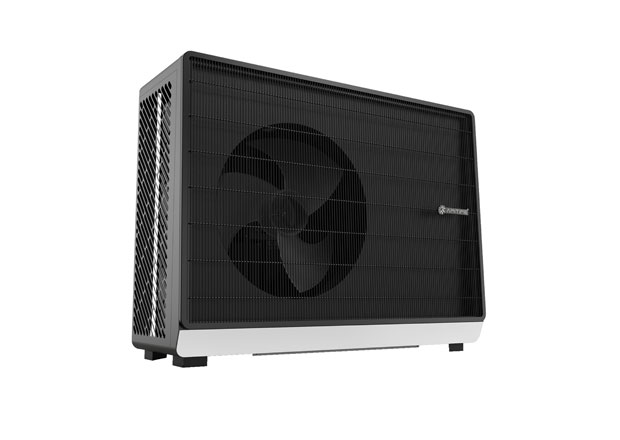

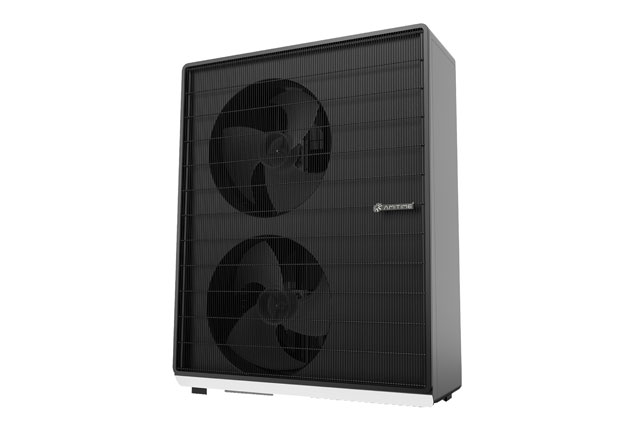

Amitime R290 EcoSTAR M-HB Range (2.56–6.76 kW)

Image courtesy of Amitime · click photo to enlarge

Amitime R290 EcoSTAR M-HB Range (2.56–6.76 kW)

Specifications and technical data

Air Source (ASHP)ResidentialR2902.56–6.76 kW

Manufacturer	Amitime
Model	R290 EcoSTAR M-HB Range
Model code	EcoSTAR06M-HB
Heat pump type	Air Source (ASHP) All Air Source heat pumps →
Application	Residential All Residential heat pumps →
Refrigerant	R290 All R290 heat pumps →
Mode	Heating & cooling
Heating capacity	2.56–6.76 kW
Max heating output (low temp)	6.57 kW at A7/W45
COP (heating)	4.45 at A7/W35
SCOP (heating)	4.81 at W35
Operating range (air)	-25 to 43 °C
Heating flow temperature	25–70 °C
Electrical supply	220-240V (Single Phase)
Cooling capacity	1.27–5.43 kW
Max cooling output (high temp)	3.71 kW at A35/W7
Cooling flow temperature	7–20 °C
EER (cooling)	2.85 at A35/W7
Dimensions (H×W×D)	860 × 1255 × 460 mm
Operational Weight	95 kg
Sound power level	54 dB(A) (Sound Power LW(A))
Data added	2026-08-30
Data source	Manufacturer website
Verification	Verified by a human

Free data sheet (PDF) →

Check noise at a neighbour’s window (MCS 020 a) →

View manufacturer page →

Amitime EcoSTAR06M-HB air-to-water heat pump, monobloc unit with a hydro box (wall-mounted indoor hydraulic module). 6.76 kW heating at A7/W35 with a COP of 4.45 and SCOP of 4.81 at W35. R290 refrigerant, DC inverter rotary compressor modulating from 2.56 to 6.76 kW. Maximum flow temperature 70 C, operation from -25 to 43 C ambient.
