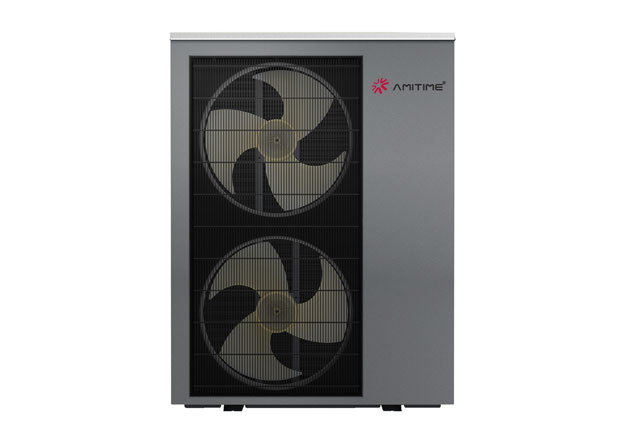

Amitime R32 HeatSTAR+ M-AIO Range (2.86–7.45 kW) photo 1

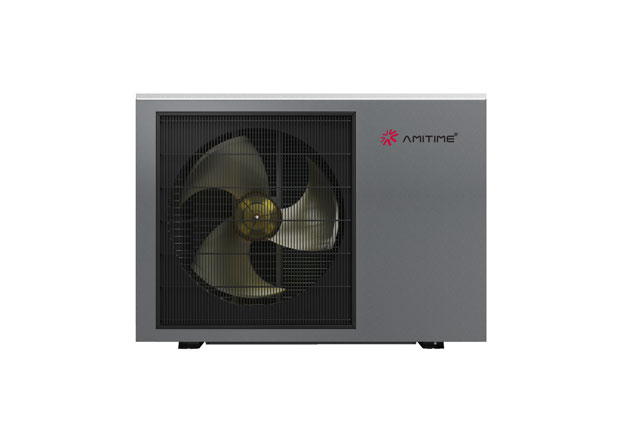

Amitime R32 HeatSTAR+ M-AIO Range (2.86–7.45 kW) photo 2

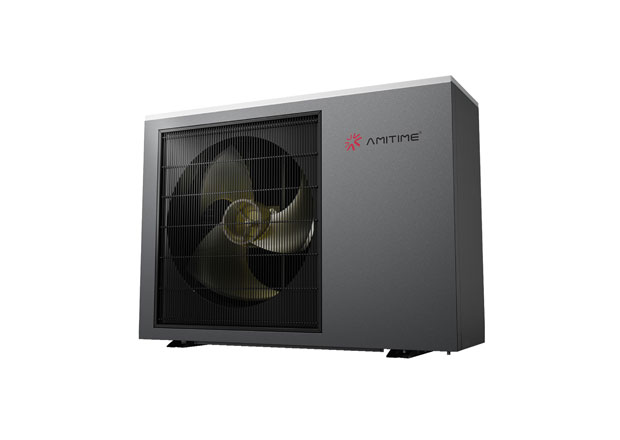

Amitime R32 HeatSTAR+ M-AIO Range (2.86–7.45 kW) photo 3

Image courtesy of Amitime · click photo to enlarge

Amitime R32 HeatSTAR+ M-AIO Range (2.86–7.45 kW)

Specifications and technical data

Air Source (ASHP)ResidentialR322.86–7.45 kW

Manufacturer	Amitime
Model	R32 HeatSTAR+ M-AIO Range
Model code	HeatSTAR06M-AIO
Heat pump type	Air Source (ASHP)
Application	Residential
Refrigerant	R32
Mode	Heating & cooling
Heating capacity	2.86–7.45 kW
Max heating output (low temp)	6.8 kW at A7/W35
COP (heating)	4.28 at A7/W35
SCOP (heating)	4.58 at W35
Operating range (air)	-25 to 43 °C
Heating flow temperature	25–58 °C
Electrical supply	220-240V (Single Phase)
Cooling capacity	1.96–7.41 kW
Max cooling output (high temp)	4.26 kW at A35/W7
Cooling flow temperature	7–20 °C
EER (cooling)	2.41 at A35/W7
Dimensions (H×W×D)	700 × 1010 × 370 mm
Operational Weight	65 kg
Sound power level	54 dB(A) (Sound Power LW(A))
Data added	2026-08-30
Data source	Manufacturer website

View manufacturer page →

Amitime HeatSTAR06M-AIO air-to-water heat pump, monobloc unit with a all-in-one indoor tower with integrated DHW cylinder. 7.45 kW heating at A7/W35 with a COP of 4.28 and SCOP of 4.58 at W35. R32 refrigerant, DC inverter rotary compressor modulating from 2.86 to 7.45 kW. Maximum flow temperature 58 C, operation from -25 to 43 C ambient.

✓ Manually verified by Heat Pump Database

✎ Suggest a correction to this data

Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
