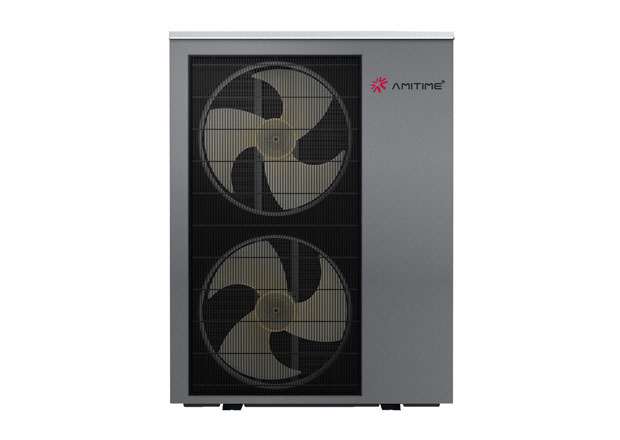

Amitime R32 HeatSTAR+ M-HB Range (3.52–9.22 kW) photo 1

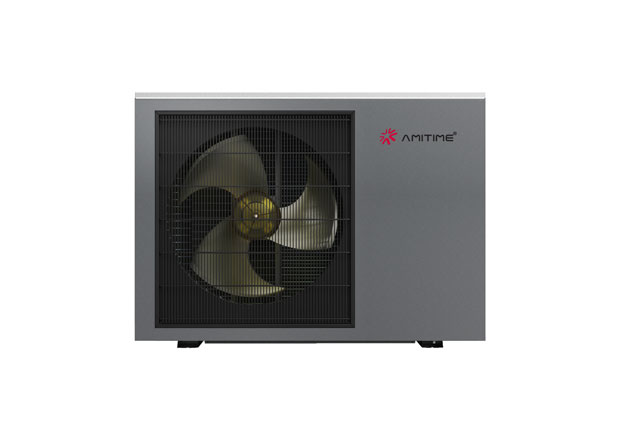

Amitime R32 HeatSTAR+ M-HB Range (3.52–9.22 kW) photo 2

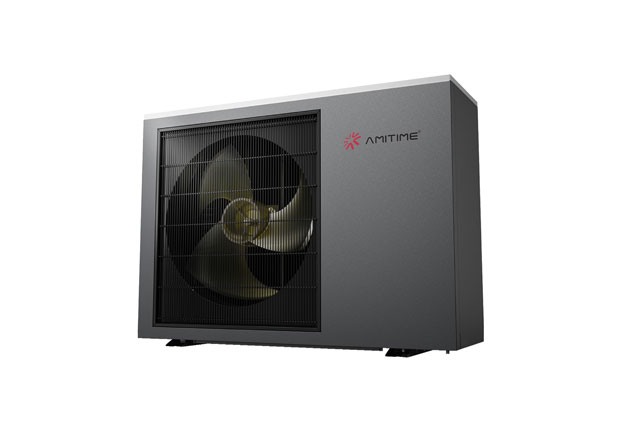

Amitime R32 HeatSTAR+ M-HB Range (3.52–9.22 kW) photo 3

Image courtesy of Amitime · click photo to enlarge

Amitime R32 HeatSTAR+ M-HB Range (3.52–9.22 kW)

Specifications and technical data

Air Source (ASHP)ResidentialR323.52–9.22 kW

Manufacturer	Amitime
Model	R32 HeatSTAR+ M-HB Range
Model code	HeatSTAR09M-HB
Heat pump type	Air Source (ASHP)
Application	Residential
Refrigerant	R32
Mode	Heating & cooling
Heating capacity	3.52–9.22 kW
Max heating output (low temp)	8.68 kW at A7/W35
COP (heating)	4.31 at A7/W35
SCOP (heating)	4.61 at W35
Operating range (air)	-25 to 43 °C
Heating flow temperature	25–58 °C
Electrical supply	220-240V (Single Phase)
Cooling capacity	2.21–9.49 kW
Max cooling output (high temp)	6.4 kW at A35/W7
Cooling flow temperature	7–20 °C
EER (cooling)	3 at A35/W7
Dimensions (H×W×D)	845 × 1165 × 370 mm
Operational Weight	78 kg
Sound power level	54 dB(A) (Sound Power LW(A))
Data added	2026-08-30
Data source	Manufacturer website

View manufacturer page →

Amitime HeatSTAR09M-HB air-to-water heat pump, monobloc unit with a hydro box (wall-mounted indoor hydraulic module). 9.22 kW heating at A7/W35 with a COP of 4.31 and SCOP of 4.61 at W35. R32 refrigerant, DC inverter rotary compressor modulating from 3.52 to 9.22 kW. Maximum flow temperature 58 C, operation from -25 to 43 C ambient.
