Image courtesy of Atlantic · click photo to enlarge

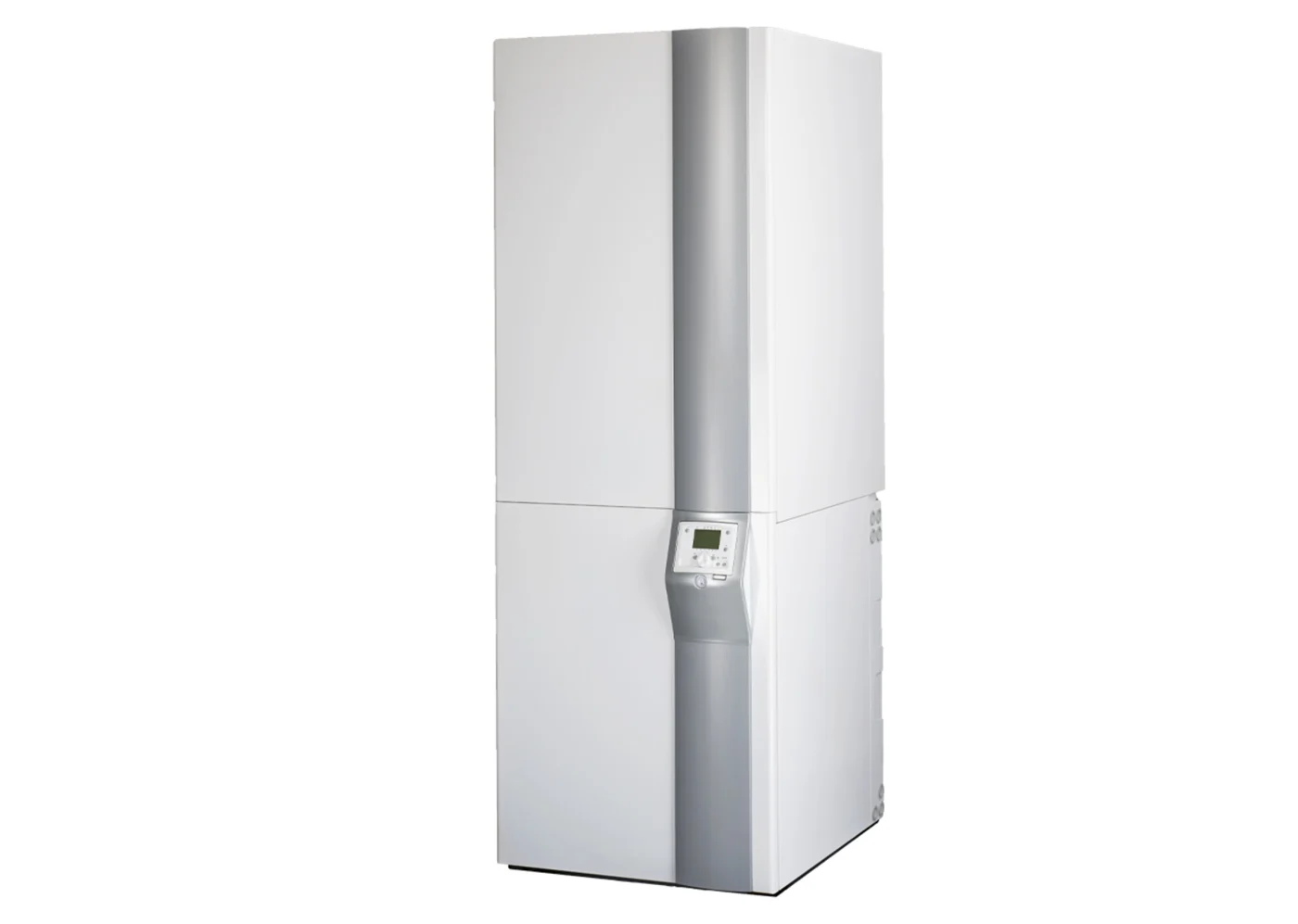

Atlantic Geolia (8 kW)
Specifications and technical data
Ground Source (GSHP)ResidentialR410A8 kW
| Manufacturer | Atlantic |
|---|---|
| Model | Geolia |
| Model code | Geolia 5 |
| Heat pump type | Ground Source (GSHP) All Ground Source heat pumps → |
| Application | Residential All Residential heat pumps → |
| Refrigerant | R410A All R410A heat pumps → |
| Mode | Heating only |
| Heating capacity | 8 kW |
| Max heating output (low temp) | 5.13 kW at B0/W55 |
| COP (heating) | 4.86 at B7/W35 |
| Heating flow temperature | up to 55 °C |
| Electrical supply | 220-240V (Single Phase) |
| Dimensions (H×W×D) | 820 × 650 × 790 mm |
| Operational Weight | 145 kg |
| Sound power level | 56 dB(A) (Sound Power LW(A)) |
| Data added | 2026-07-12 |
| Data source | Manufacturer Data Sheet |
| Verification | Verified by a human |
Atlantic Geolia is a 8 kW ground source heat pump, using R410A refrigerant.
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
