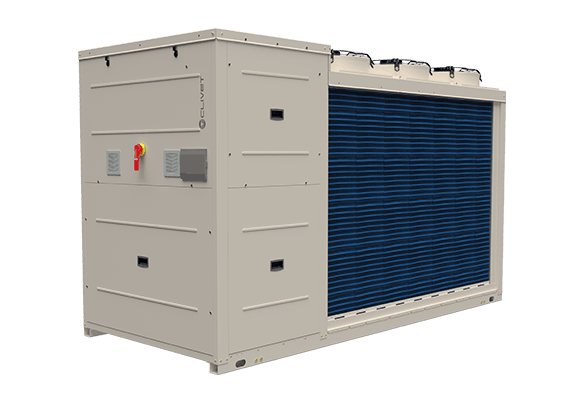

Image courtesy of Clivet · click photo to enlarge

Clivet LARGE EVO PL 20.2

Specifications and technical data

Air Source (ASHP)CommercialR3270.4 kW

Manufacturer	Clivet
Model	LARGE EVO PL 20.2
Model code	WiSAN-YEE1 PL 20.2
Heat pump type	Air Source (ASHP)
Application	Commercial
Refrigerant	R32
Mode	Heating & cooling
Heating capacity	70.4 kW
Max heating output (low temp)	70.4 kW at A7/W45
COP (heating)	3.12 at A7/W45
SCOP (heating)	4.16 at W35
Operating range (air)	-20 to 48 °C
Heating flow temperature	up to 60 °C
Electrical supply	380-415V (Three Phase)
Cooling capacity	51.7 kW
Max cooling output (high temp)	51.7 kW at A35/W7
EER (cooling)	3.07 at A35/W7
SEER (cooling)	4.25 at W7
Dimensions (H×W×D)	1919 × 2461 × 1380 mm
Operational Weight	975 kg
Sound power level	83 dB(A) (Sound Power LW(A))
Data added	2026-07-22
Data source	Manufacturer Data Sheet

View manufacturer page →

Clivet LARGE EVO PL 20.2 is a 64.5 kW air source polyvalent heat pump, providing simultaneous heating and cooling, using R32 refrigerant.

Where to buy (UK)

UK Supplier	Plumbing Superstore
UK Supplier	Mr Central Heating
UK Supplier	Beet BG

✓ Manually verified by Heat Pump Database

✎ Suggest a correction to this data

Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
