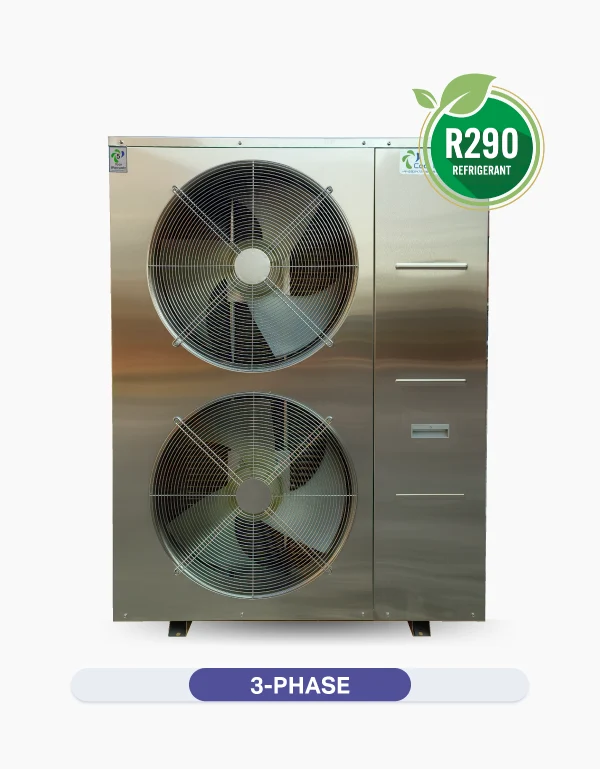

Image courtesy of Cool Energy · click photo to enlarge
Cool Energy ProInverter iH24+ 3PH
Specifications and technical data
Air Source (ASHP)ResidentialR2906.88–24 kW
| Manufacturer | Cool Energy |
|---|---|
| Model | ProInverter iH24+ 3PH |
| Model code | CE-iH24+ 3PH |
| Heat pump type | Air Source (ASHP) |
| Application | Residential |
| Refrigerant | R290 |
| Mode | Heating & cooling |
| Heating capacity | 6.88–24 kW |
| Max heating output (low temp) | 24 kW at A7/W35 |
| COP (heating) | 5.83 at A7/W35 |
| Operating range (air) | -35 to 43 °C |
| Heating flow temperature | up to 75 °C |
| Electrical supply | 380-415V (Three Phase) |
| Cooling capacity | 17.6 kW |
| Max cooling output (high temp) | 17.6 kW at A35/W7 |
| EER (cooling) | 4.41 at A35/W7 |
| Dimensions (H×W×D) | 1335 × 415 × 1030 mm |
| Operational Weight | 122 kg |
| Price (unit only) | ~£3,695 (checked 2026-07-23) |
| Data added | 2026-07-23 |
| Data source | Manufacturer Data Sheet |
Cool Energy ProInverter iH24+ 3PH is a 6.88-24.0 kW air source heat pump / chiller, providing heating and cooling, using R290 refrigerant.
Where to buy (UK)
| UK Supplier | SNH Trade Centre |
|---|
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
