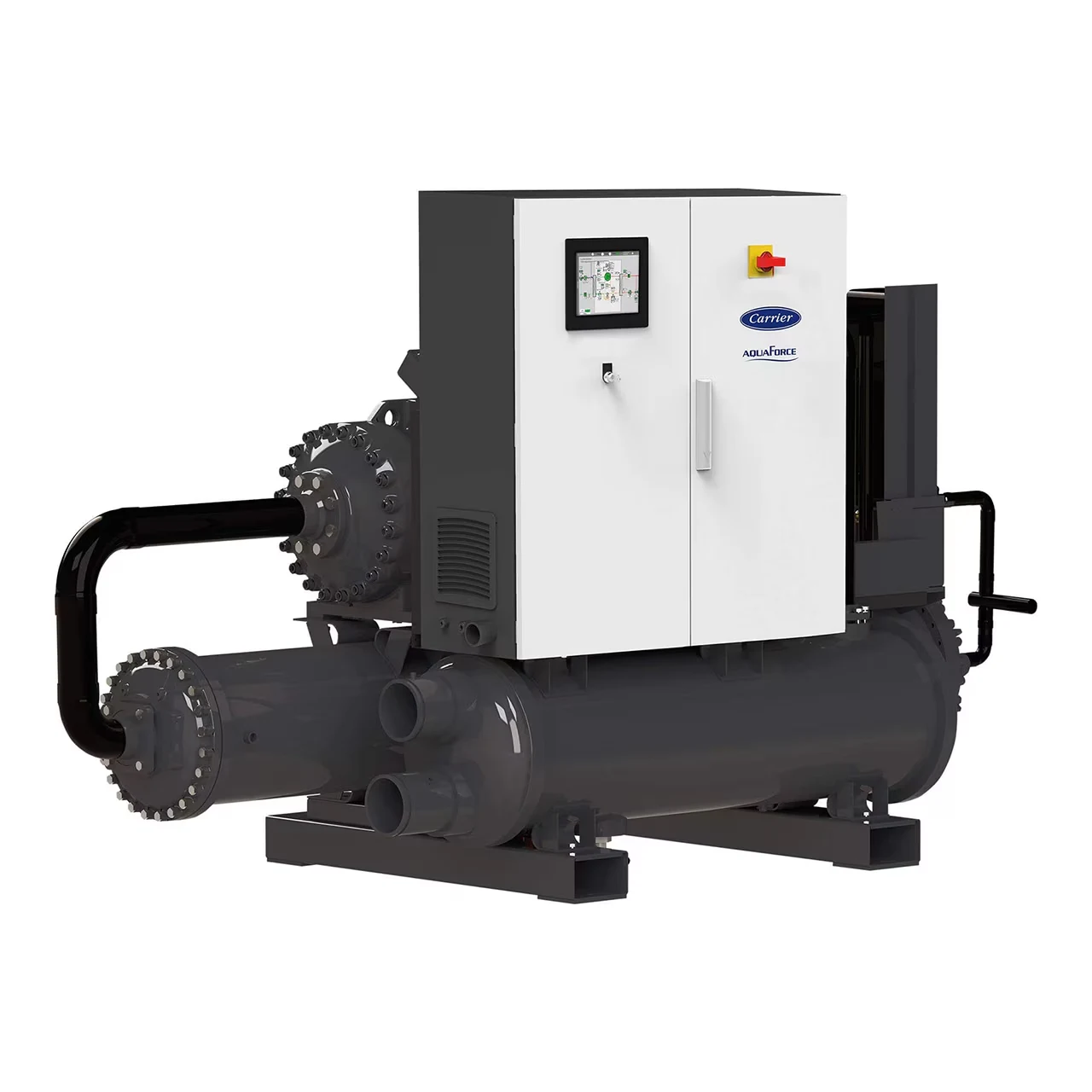

Carrier 61CW-D

Specifications and technical data

Water Source (WSHP)CommercialR1233zd129 kW

Manufacturer	Carrier
Model	61CW-D
Model code	61CW-D130
Heat pump type	Water Source (WSHP)
Application	Commercial
Refrigerant	R1233zd
Mode	Heating only
Heating capacity	129 kW
COP	4.8 at W45/W85
Operating range (air)	35 to 60 °C
Flow temperature	up to 95 °C
Power input	26.9 kW
Dimensions (H×W×D)	1800 × 1400 × 3700 mm
Weight	2000 kg
Data added	2026-06-11
Data source	Carrier PSD

Notes

Very high temperature industrial water-source heat pump up to 95°C.

W45/W85 data used. W45/W95 alternative capacity 121 kW and COP 3.5 also published. Cooling/source-side capacity 112 kW. R1233zd charge 65 kg. Dimensions/weight are reference values and depend on operating point and heat exchangers.
