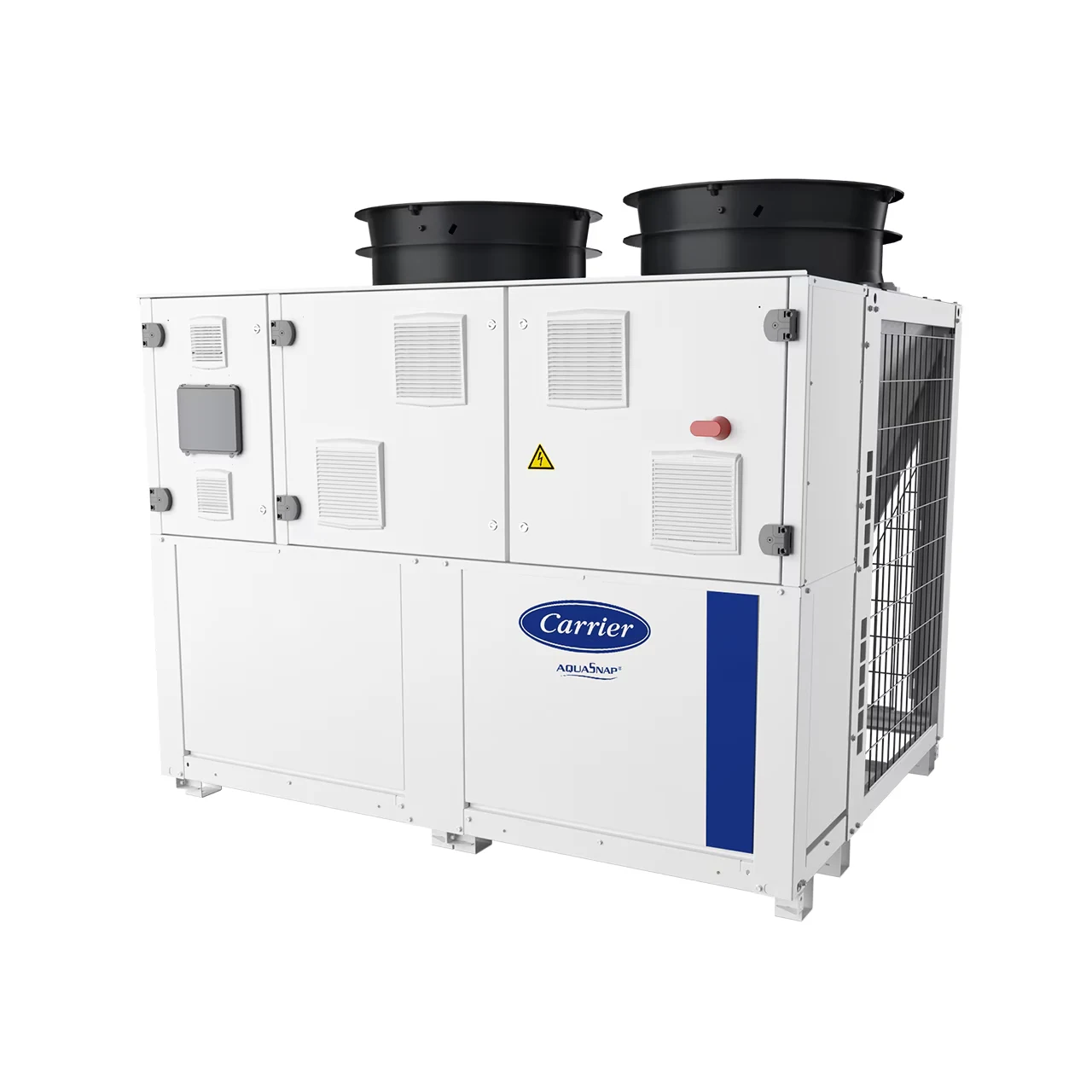

Carrier AquaSnap 61AQ (38 kW)
Specifications and technical data
Air Source (ASHP)CommercialR29038 kW
| Manufacturer | Carrier |
|---|---|
| Model | AquaSnap 61AQ |
| Model code | 61AQ 040P |
| Heat pump type | Air Source (ASHP) |
| Application | Commercial |
| Refrigerant | R290 |
| Mode | Heating & cooling |
| Heating capacity | 38 kW |
| Max heating output (low temp) | 38 kW at A7/W55 |
| COP (heating) | 3.97 at A7/W35 |
| SCOP (heating) | 4.1 at W35 |
| Operating range (air) | -25 to 50 °C |
| Heating flow temperature | 20–75 °C |
| Power input | 9.57 kW |
| Electrical supply | 380-415V (Three Phase) |
| Cooling capacity | 32 kW |
| Max cooling output (high temp) | 32 kW at A35/W7 |
| EER (cooling) | 2.47 at A35/W7 |
| SEER (cooling) | 4.31 at W7 |
| Dimensions (H×W×D) | 2045 × 1145 × 1815 mm |
| Operational Weight | 527 kg |
| Sound power level | 73 dB(A) (Sound Power LW(A)) |
| Data added | 21/06/2026 |
| Data source | Manufacturer Data Sheet |
Carrier AquaSnap 61AQ is a 38 kW air source heat pump, providing heating and cooling, using R290 refrigerant.
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
