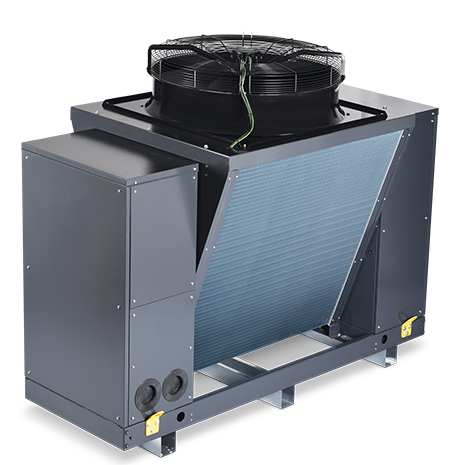

Image courtesy of Global Energy Systems · click photo to enlarge
Global Energy Systems Leeds Quattro
Specifications and technical data
ASHP (4-unit cascade)CommercialR290106–190 kW
| Manufacturer | Global Energy Systems |
|---|---|
| Model | Leeds Quattro |
| Model code | GE40501-004-00 |
| Heat pump type | ASHP (4-unit cascade) |
| Application | Commercial |
| Refrigerant | R290 |
| Mode | None |
| Heating capacity | 106–190 kW |
| Max heating output (low temp) | 106 kW at A-3/W35 |
| COP (heating) | 3.3 at A-3/W35 |
| SCOP (heating) | 3.85 at W35 |
| Operating range (air) | -25 to 45 °C |
| Heating flow temperature | 7–70 °C |
| Electrical supply | 380-415V (Three Phase) |
| Cooling capacity | 142.8 kW |
| EER (cooling) | 3.29 at A35/W18 |
| Dimensions (H×W×D) | 1770 × 5600 × 2280 mm |
| Operational Weight | 2400 kg |
| Sound power level | 68 dB(A) (Sound Power LW(A)) |
| Data added | 16/07/2026 |
| Data source | Manufacturer Data Sheet |
Global Energy Systems Leeds Quattro is a 106.0kW heat pump, using R290 refrigerant.
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
