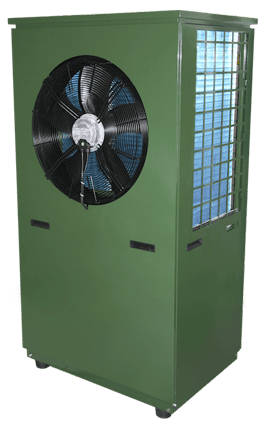

Image courtesy of Global Energy Systems · click photo to enlarge
Global Energy Systems Caernarfon
Specifications and technical data
✓ BUS eligibleAir Source (ASHP)Residential8–14.5 kW
| Manufacturer | Global Energy Systems |
|---|---|
| Model | Caernarfon |
| Model code | CAER410MOD1 |
| Heat pump type | Air Source (ASHP) All Air Source heat pumps → |
| Application | Residential All Residential heat pumps → |
| Mode | Heating only |
| Heating capacity | 8–14.5 kW |
| Max heating output (low temp) | 13.7 kW at A-3/W35 |
| COP (heating) | 3 at A-3/W35 |
| SCOP (heating) | 4.11 at W35 |
| Operating range (air) | -20 to 30 °C |
| Heating flow temperature | up to 65 °C |
| Electrical supply | 220-240V (Single Phase) |
| Dimensions (H×W×D) | 1818 × 1002 × 732 mm |
| Operational Weight | 230 kg |
| Sound power level | 61.5 dB(A) (Sound Power LW(A)) |
| Data added | 16/07/2026 |
| Data source | Manufacturer Data Sheet |
| Verification | Verified by a human |
| Boiler Upgrade Scheme | ✓ BUS eligible — Listed on the Ofgem BUS Product Eligibility List (24 Sep 2026). Grant also needs an MCS-certified installer and a qualifying system design. Funding guide |
| PEL certificate no. | MCS HP0010/04 |
| MCS certification | ✓ MCS listed |
| MCS certificate no. | MCS HP0010/04 |
| MCS listing | View on MCS ↗ |
Check noise at a neighbour’s window (MCS 020 a) →
Global Energy Systems Caernarfon is a 8kW heat pump (refrigerant not stated in source).
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
