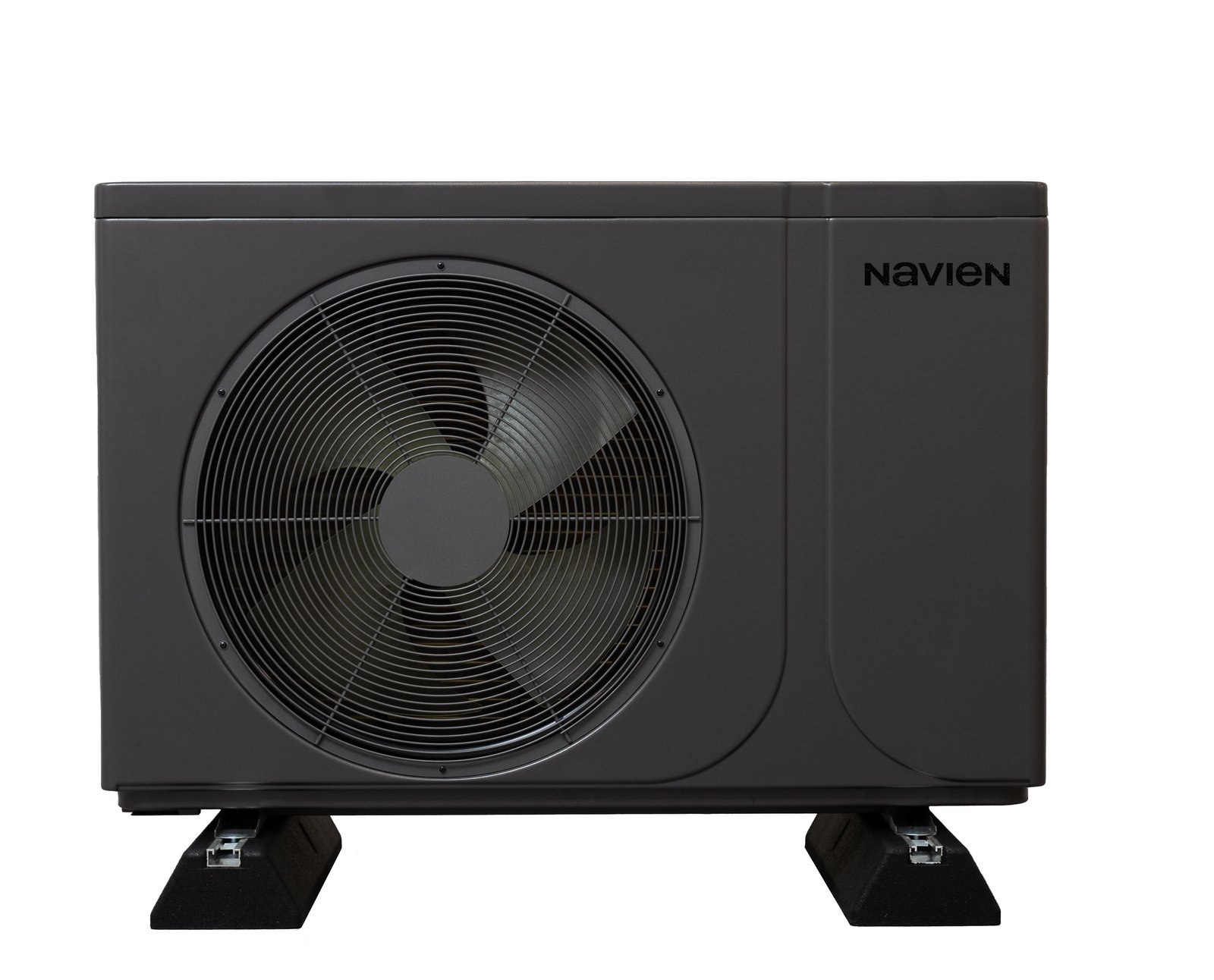

Navien PEM750
Specifications and technical data
Air Source (ASHP)ResidentialR2904 kW
| Manufacturer | Navien |
|---|---|
| Model | PEM750 |
| Model code | PEM750V004PGKC |
| Heat pump type | Air Source (ASHP) |
| Application | Residential |
| Refrigerant | R290 |
| Mode | Heating only |
| Heating capacity | 4 kW |
| Max heating output (low temp) | 4 kW at A7/W35 |
| COP (heating) | 4.7 at A7/W35 |
| SCOP (heating) | 4.86 at W35 |
| Operating range (air) | -25 to 43 °C |
| Heating flow temperature | 15–70 °C |
| Electrical supply | 230V/1P/50Hz |
| Dimensions (H×W×D) | 800 × 1166 × 445 mm |
| Operational Weight | 105 kg |
| Sound power level | 55 dB(A) (Sound Power LW(A)) |
| Data added | 2026-07-15 |
| Data source | Manufacturer Data Sheet |
Navien PEM750 PEM750V004PGKC is a 4 kW air source heat pump, using R290 refrigerant.
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
