Panasonic Aquarea All in One K Series (WH-UDZ16KE5)
Specifications and technical data
Air Source (ASHP)ResidentialR3216 kW
| Manufacturer | Panasonic |
|---|---|
| Model | Aquarea All in One K Series |
| Model code | WH-UDZ16KE5 |
| Heat pump type | Air Source (ASHP) All Air Source heat pumps → |
| Application | Residential All Residential heat pumps → |
| Refrigerant | R32 All R32 heat pumps → |
| Mode | Heating & cooling |
| Heating capacity | 16 kW |
| Max heating output (low temp) | 11.7 kW at A-7/W35 |
| COP (heating) | 4.31 at A7/W35 |
| SCOP (heating) | 4.46 at W35 |
| Operating range (air) | -25 to 35 °C |
| Heating flow temperature | 20–60 °C |
| Electrical supply | 220-240V (Single Phase) |
| Cooling capacity | 12.2 kW |
| Cooling flow temperature | 5–20 °C |
| EER (cooling) | 2.68 at A35/W7 |
| Dimensions (H×W×D) | 1340 × 900 × 320 mm |
| Operational Weight | 88 kg |
| Sound power level | 65 dB(A) (Sound Power LW(A)) |
| Data added | 2026-07-10 |
| Data source | Manufacturer Data Sheet |
| Verification | Verified by a human |
Check noise at a neighbour’s window (MCS 020 a) →
Panasonic Aquarea All in One K Series is a 16.0 kW air source heat pump, providing heating and cooling, using R32 refrigerant (model WH-UDZ16KE5).
Where to buy (UK)
| UK Supplier | The Heat Pump Warehouse |
|---|---|
| UK Supplier | Secon Renewables |
| UK Supplier | OceanAir |
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
Reviews & further reading
- Manufacturer Aquarea K and L Series — Panasonic
- Review Panasonic Heat Pumps UK | Air Source Review & Price Guide — Heat Pumps UK
- Review Panasonic Aquarea Heat Pump Review (UK 2026) — Heat Pump HQCovers the wider Panasonic range

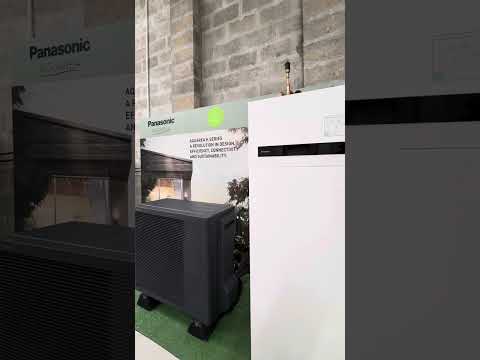

►Panasonic Aquarea All-in-One with K Series Heat PumpYouTube
