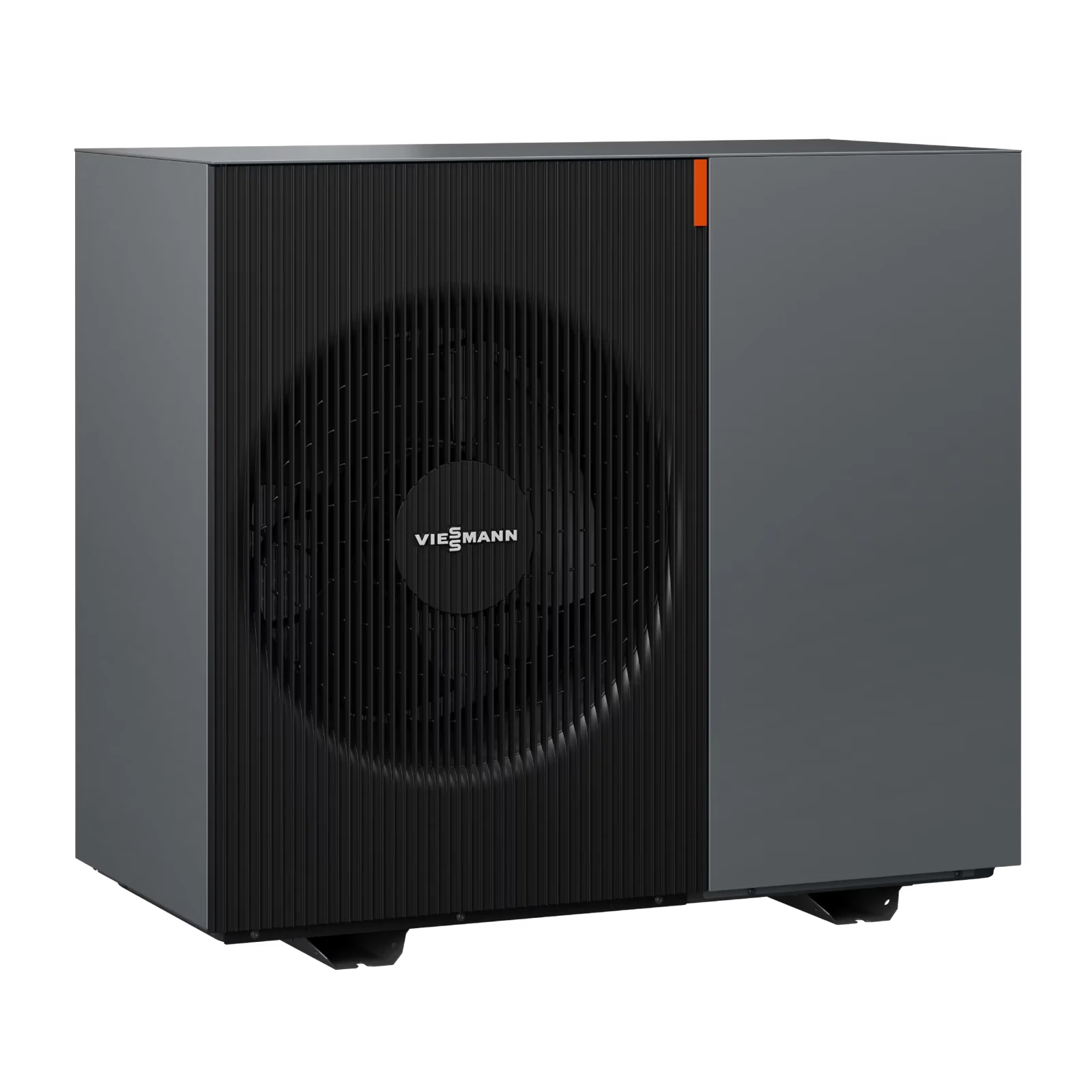

Viessmann Vitocal 200-A ie 10kW
Specifications and technical data
Also known as: AWMOF-201.A1.10-230-V005
Air Source (ASHP)ResidentialR2908.7 kW
| Manufacturer | Viessmann |
|---|---|
| Model | Vitocal 200-A ie 10kW |
| Model code | AWMOF-201.A1.10-230-V004 |
| Heat pump type | Air Source (ASHP) |
| Application | Residential |
| Refrigerant | R290 |
| Mode | Heating & cooling |
| Heating capacity | 8.7 kW |
| Max heating output (low temp) | 8.7 kW at A-7/W35 |
| Operating range (air) | -25 to 45 °C |
| Heating flow temperature | up to 75 °C |
| Electrical supply | 220-240V (Single Phase) |
| Dimensions (H×W×D) | 1008 × 1140 × 530 mm |
| Operational Weight | 118 kg |
| Sound power level | 54 dB(A) (Sound Power LW(A)) |
| Data added | 2026-09-10 |
| Data source | Manufacturer installation and service manual (6260605, July 2026) |
Monobloc air-to-water heat pump for outdoor installation, using R290 refrigerant. Supplied with a wall-mounted indoor controller. Provides heating, cooling and domestic hot water, with flow temperatures up to 75 C.
Where to buy (UK)
| UK Supplier | Secon Renewables |
|---|---|
| UK Supplier | Pirate Heating Supplies |
| UK Supplier | Beet BG |
| UK Supplier | GetPlumb |
| UK Supplier | Solar Trading |
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
