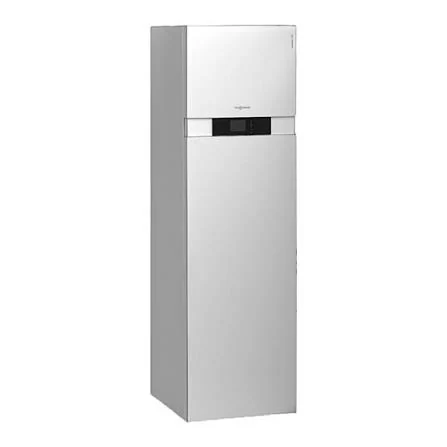

Image courtesy of Viessmann · click photo to enlarge
Viessmann Vitocal 242-G (BWT-M 241.A10)
Specifications and technical data
Ground Source (GSHP)ResidentialR410A10.4 kW
| Manufacturer | Viessmann |
|---|---|
| Model | Vitocal 242-G |
| Model code | BWT-M 241.A10 |
| Heat pump type | Ground Source (GSHP) All Ground Source heat pumps → |
| Application | Residential All Residential heat pumps → |
| Refrigerant | R410A All R410A heat pumps → |
| Mode | Heating only |
| Heating capacity | 10.4 kW |
| Max heating output (low temp) | 10.1 kW at B0/W35 |
| COP (heating) | 4.3 at B0/W35 |
| Heating flow temperature | up to 60 °C |
| Electrical supply | 220-240V (Single Phase) |
| Dimensions (H×W×D) | 2075 × 600 × 680 mm |
| Operational Weight | 266 kg |
| Sound power level | 43 dB(A) (Sound Power LW(A)) |
| Data added | 2026-10-21 |
| Data source | Viessmann Vitocal 242-G BWT 241.A installation and service instructions 5601 598 GB (via Manualslib) |
| Verification | Verified by a human |
Viessmann Vitocal 242-G BWT-M 241.A10 compact brine-to-water heat pump with integral 220 L solar DHW cylinder, 10.1 kW at B0/W35, R410A, 230 V.
Where to buy (UK)
| UK Supplier | Secon Renewables |
|---|---|
| UK Supplier | Pirate Heating Supplies |
| UK Supplier | Beet BG |
| UK Supplier | GetPlumb |
| UK Supplier | Solar Trading |
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
