Image courtesy of Viessmann · click photo to enlarge

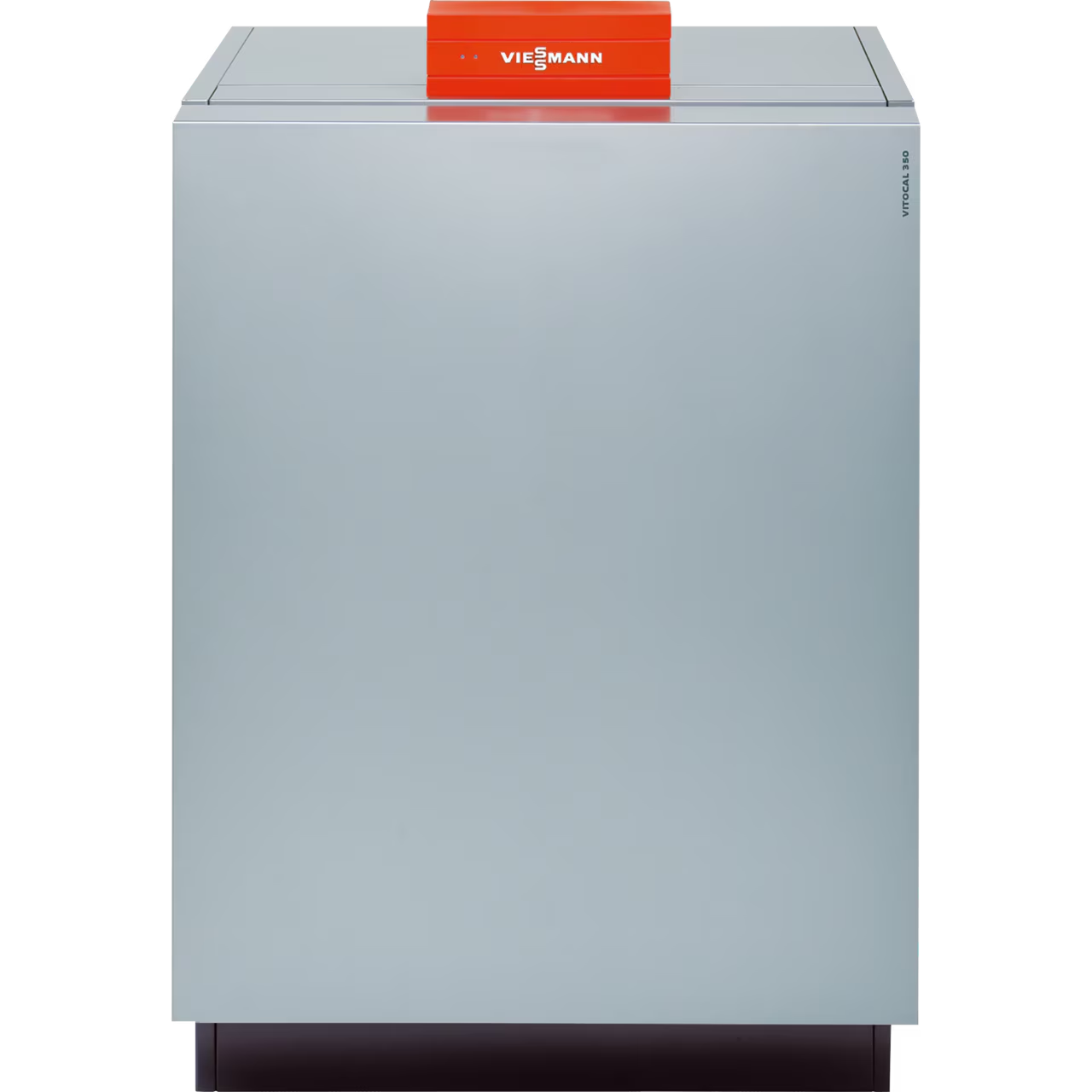

Viessmann Vitocal 350-G Pro BW (27.2 kW)
Specifications and technical data
Ground Source (GSHP)CommercialR410A27.2 kW
| Manufacturer | Viessmann |
|---|---|
| Model | Vitocal 350-G Pro BW |
| Model code | Vitocal 350-G Pro BW 352.A027 |
| Heat pump type | Ground Source (GSHP) |
| Application | Commercial |
| Refrigerant | R410A |
| Mode | Heating only |
| Heating capacity | 27.2 kW |
| Max heating output (low temp) | 27.2 kW at B0/W35 |
| COP (heating) | 4.2 at B0/W35 |
| Power input | 6.48 kW |
| Electrical supply | 380-415V (Three Phase) |
| Data added | 2026-06-14 |
| Data source | Manufacturer Data Sheet |
| MCS certification | ✓ MCS listed — eligible for Boiler Upgrade Scheme (MCS-certified install required) |
| MCS listing | View on MCS ↗ |
Viessmann Vitocal 350-G Pro BW is a 27.2 kW ground source heat pump, using R410A refrigerant.
Where to buy (UK)
| UK Supplier | Secon Renewables |
|---|---|
| UK Supplier | Pirate Heating Supplies |
| UK Supplier | Beet BG |
| UK Supplier | GetPlumb |
| UK Supplier | Solar Trading |
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
