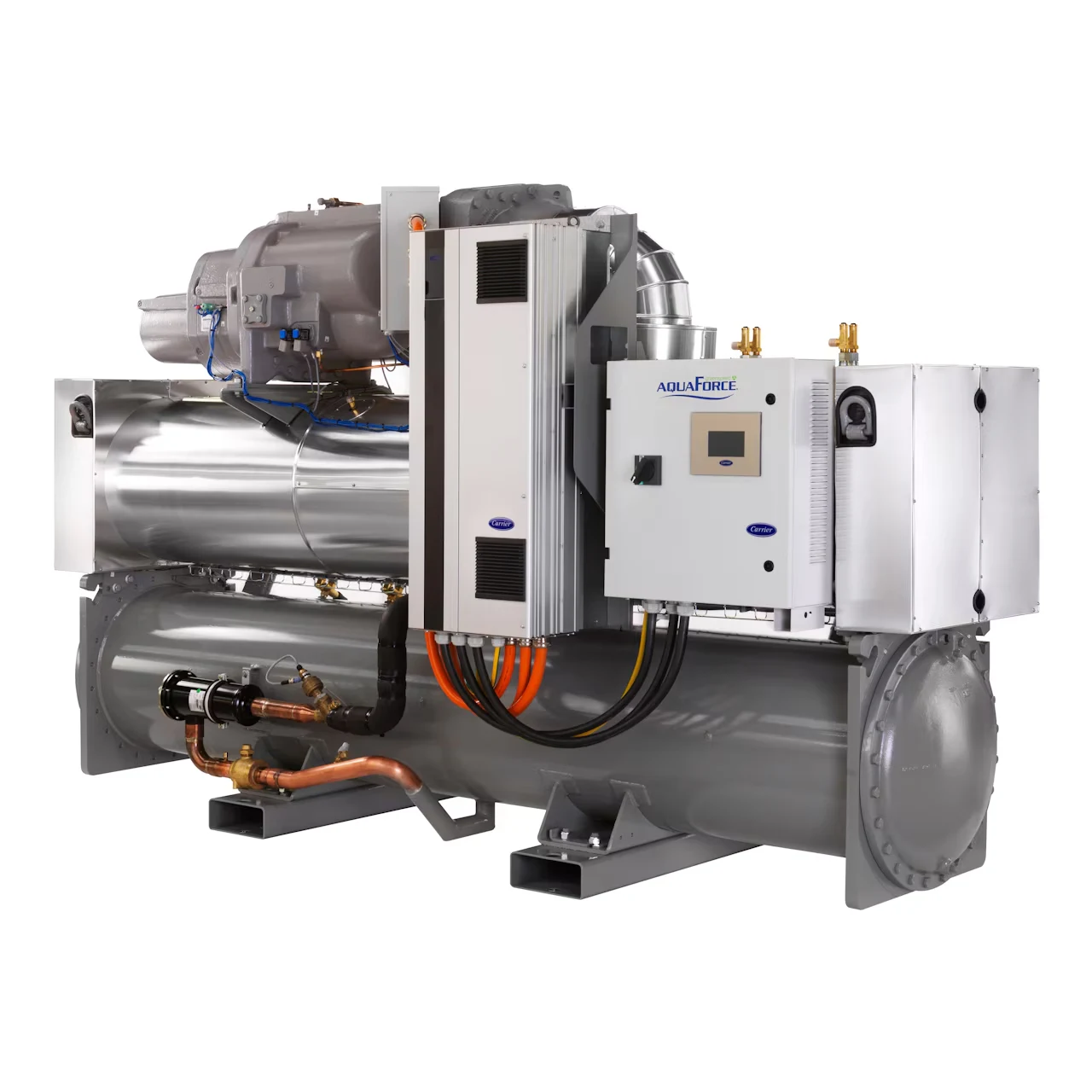

Carrier 30XW-V (687 kW)

Specifications and technical data

Also known as: AquaForce 30XW-V

Water Source (WSHP)CommercialR134a687 kW

Manufacturer	Carrier
Model	30XW-V
Model code	30XWHV 580
Heat pump type	Water Source (WSHP)
Application	Commercial
Refrigerant	R134a
Mode	Heating & cooling
Heating capacity	687 kW
Max heating output (low temp)	649 kW at W10/W45
COP (heating)	4.64 at W10/W45
SCOP (heating)	7.32 at W35
Heating flow temperature	3.3–50 °C
Power input	139.87 kW
Electrical supply	380-415V (Three Phase)
Cooling capacity	704 kW
Max cooling output (high temp)	587 kW at W35/W7
EER (cooling)	5.44 at W35/W7
SEER (cooling)	7.94 at W7
Dimensions (H×W×D)	1743 × 1087 × 3059 mm
Operational Weight	3152 kg
Sound power level	105 dB(A) (Sound Power LW(A))
Data added	2026-06-24
Data source	Manufacturer Data Sheet

View manufacturer page →

Carrier 30XW-V is a 649 kW water source heat pump, providing heating and cooling, using R134a refrigerant.

✓ Manually verified by Heat Pump Database

✎ Suggest a correction to this data

Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
