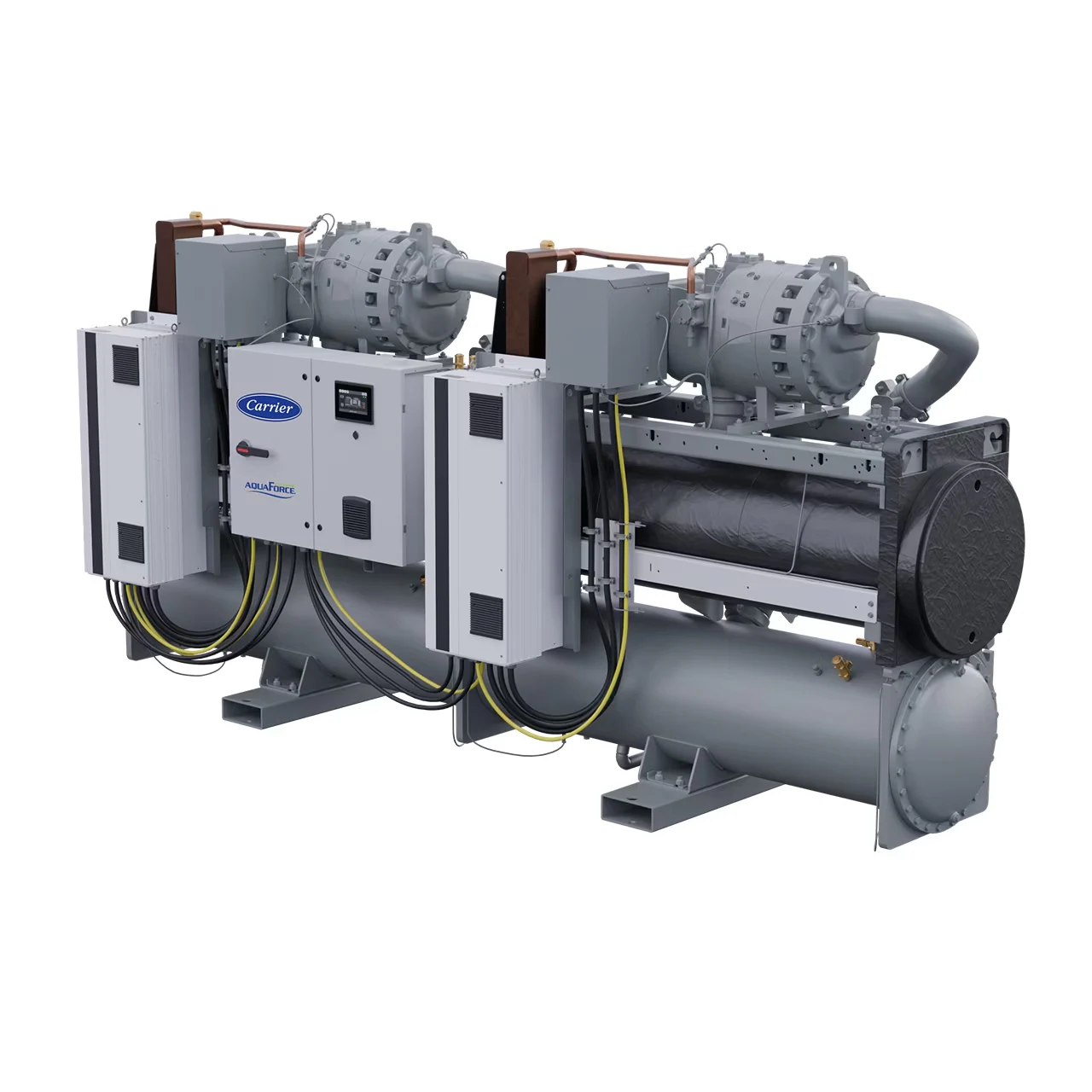

Carrier 30XW-VZE (211.86–1926 kW)

Specifications and technical data

Also known as: AquaForce 30XW-VZE

Water Source (WSHP)CommercialR1234ze211.86–1926 kW

Manufacturer	Carrier
Model	30XW-VZE
Model code	30XWHVZE 1601A
Heat pump type	Water Source (WSHP)
Application	Commercial
Refrigerant	R1234ze
Mode	Heating & cooling
Heating capacity	211.86–1926 kW
Max heating output (low temp)	1860 kW at W10/W55
COP (heating)	5.63 at W10/W35
SCOP (heating)	7.03 at W35
Heating flow temperature	-3–60 °C
Power input	342.1 kW
Electrical supply	380-415V (Three Phase)
Cooling capacity	2216 kW
Max cooling output (high temp)	1635 kW at W35/W7
EER (cooling)	5.01 at W35/W7
SEER (cooling)	8.58 at W7
Dimensions (H×W×D)	2425 × 1474 × 5293 mm
Operational Weight	9233 kg
Sound power level	103 dB(A) (Sound Power LW(A))
Data added	21/06/2026
Data source	Manufacturer Data Sheet

View manufacturer page →

Carrier 30XW-VZE is a 1926 kW water source heat pump, providing heating and cooling, using R1234ze refrigerant.

✓ Manually verified by Heat Pump Database

✎ Suggest a correction to this data

Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
