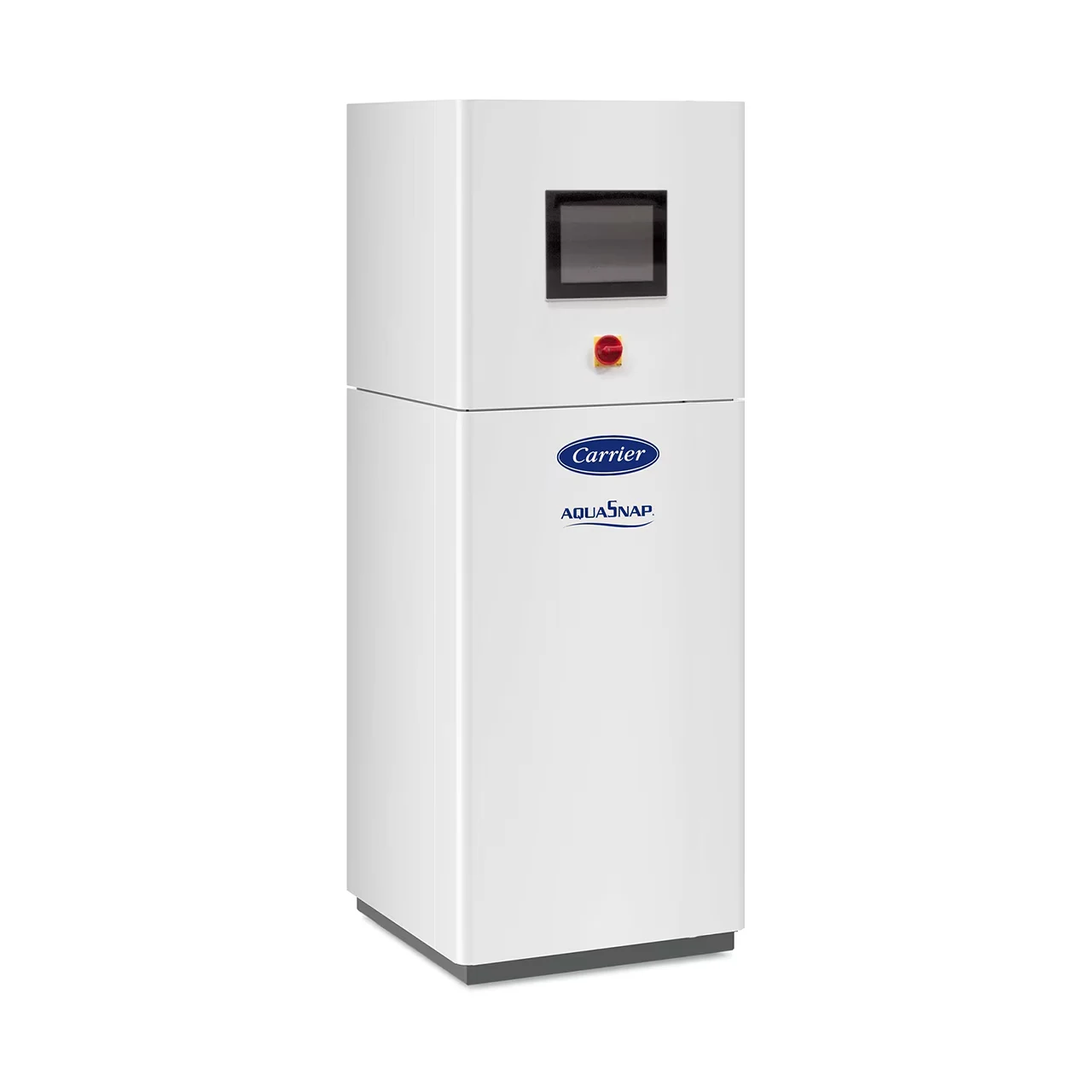

Carrier 61CG

Specifications and technical data

Water Source (WSHP)CommercialR134a98.5 kW

Manufacturer	Carrier
Model	61CG
Model code	61CG-A100
Heat pump type	Water Source (WSHP)
Application	Commercial
Refrigerant	R134a
Mode	Heating only
Heating capacity	98.5 kW
COP	3.5 at W40/W80
Operating range (air)	11 to 42 °C
Flow temperature	up to 80 °C
Power input	28.1 kW
Dimensions (H×W×D)	1900 × 890 × 680 mm
Weight	490 kg
Data added	2026-06-11
Data source	Carrier PSD

Notes

High temperature water-source heat pump with scroll compressor for heat recovery and booster applications.

W40/W80 data used. W20/W70 alternative capacity 63.6 kW and COP 2.8. Source water/brine inlet +11/+42°C; condenser outlet +28/+80°C. R134a charge 17 kg.
