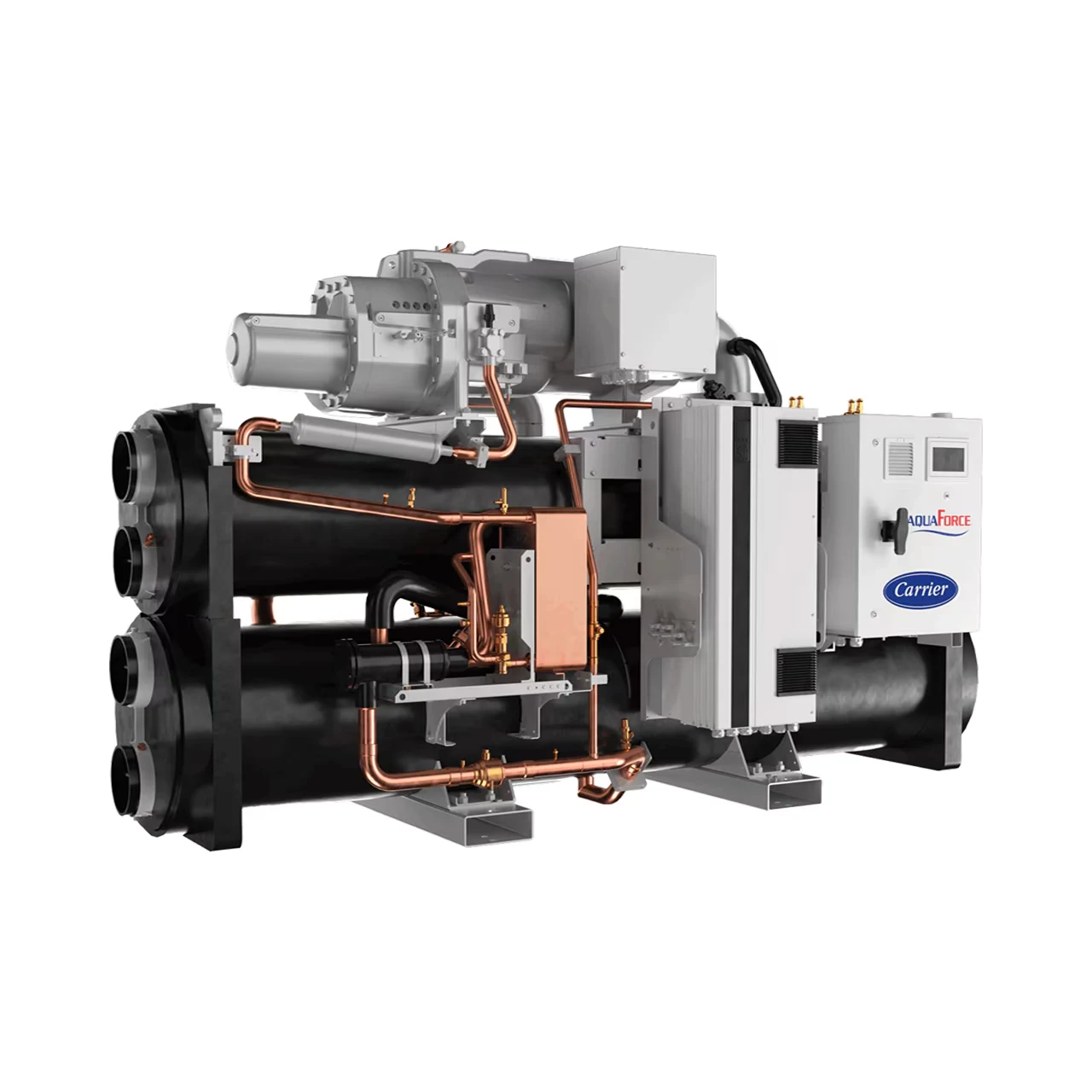

Image courtesy of Carrier · click photo to enlarge
Carrier 61XWH-VZE (739 kW)
Specifications and technical data
Also known as: AquaForce 61XWH-VZE
Water Source (WSHP)CommercialR1234ze739 kW
| Manufacturer | Carrier |
|---|---|
| Model | 61XWH-VZE |
| Model code | 61XWH-VZE 7 |
| Heat pump type | Water Source (WSHP) All Water Source heat pumps → |
| Application | Commercial All Commercial heat pumps → |
| Refrigerant | R1234ze All R1234ze heat pumps → |
| Mode | Heating only |
| Heating capacity | 739 kW |
| COP (heating) | 2.92 at W20/W75 |
| Operating range (air) | -6 to 55 °C |
| Heating flow temperature | up to 85 °C |
| Power input | 347 kW |
| Electrical supply | 380-415V (Three Phase) |
| Dimensions (H×W×D) | 1968 × 1317 × 3290 mm |
| Operational Weight | 4557 kg |
| Sound power level | 100 dB(A) (Sound Power LW(A)) |
| Data added | 2026-06-24 |
| Data source | Manufacturer Data Sheet |
| Verification | Verified by a human |
Carrier 61XWH-VZE is a 739 kW water source heat pump, using R1234ze refrigerant.
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
