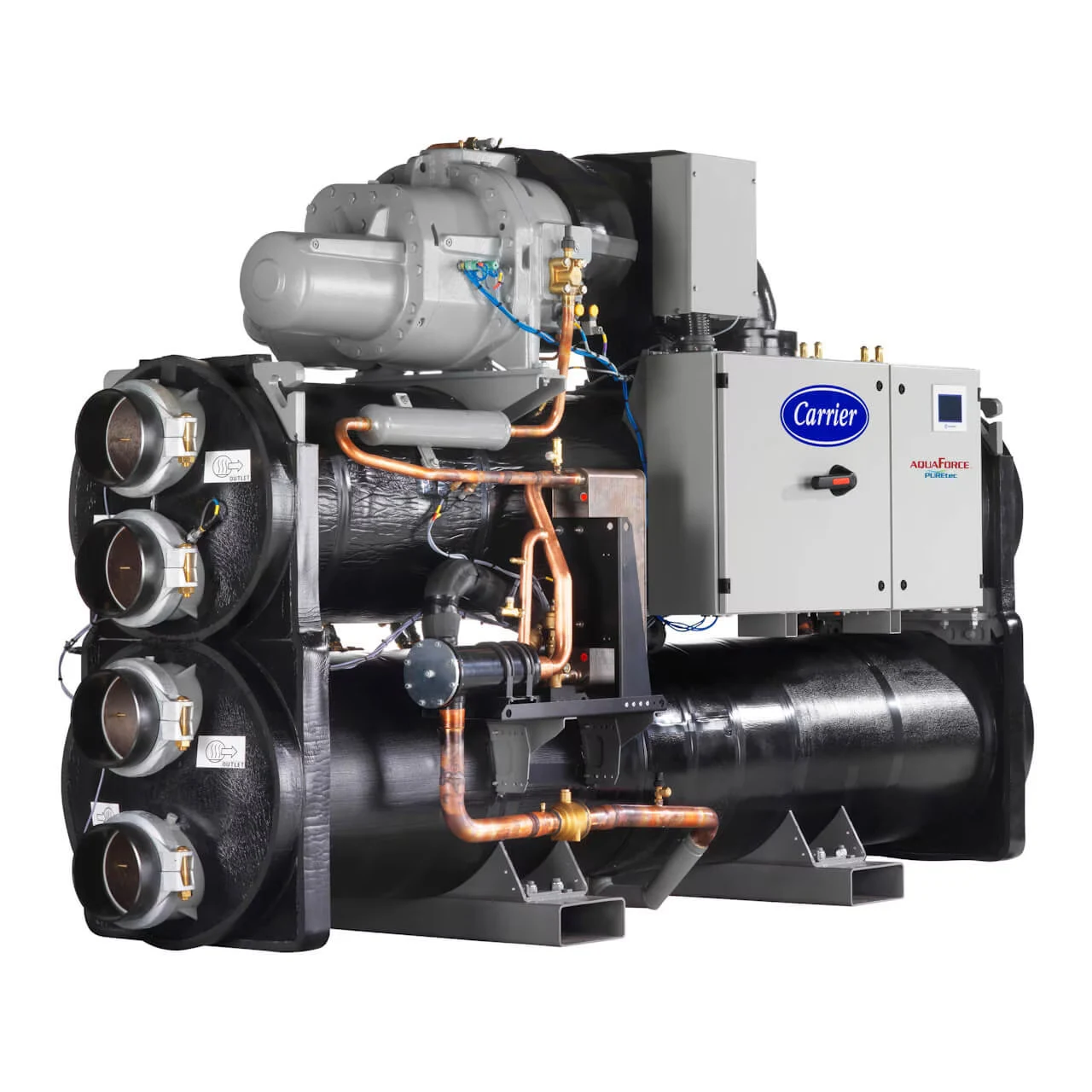

Carrier 61XWHHZE (300 kW)
Specifications and technical data
Also known as: AquaForce 61XWHHZE
Water Source (WSHP)CommercialR1234ze300 kW
| Manufacturer | Carrier |
|---|---|
| Model | 61XWHHZE |
| Model code | 61XWHHZE 3 |
| Heat pump type | Water Source (WSHP) |
| Application | Commercial |
| Refrigerant | R1234ze |
| Mode | Heating only |
| Heating capacity | 300 kW |
| Operating range (air) | -5 to 15 °C |
| Heating flow temperature | 55–85 °C |
| Power input | 137 kW |
| Electrical supply | 380-415V (Three Phase) |
| Dimensions (H×W×D) | 1594 × 981 × 2724 mm |
| Operational Weight | 2054 kg |
| Data added | 2026-06-24 |
| Data source | Manufacturer Data Sheet |
Carrier 61XWHHZE is a 300 kW water source heat pump, using R1234ze refrigerant.
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
