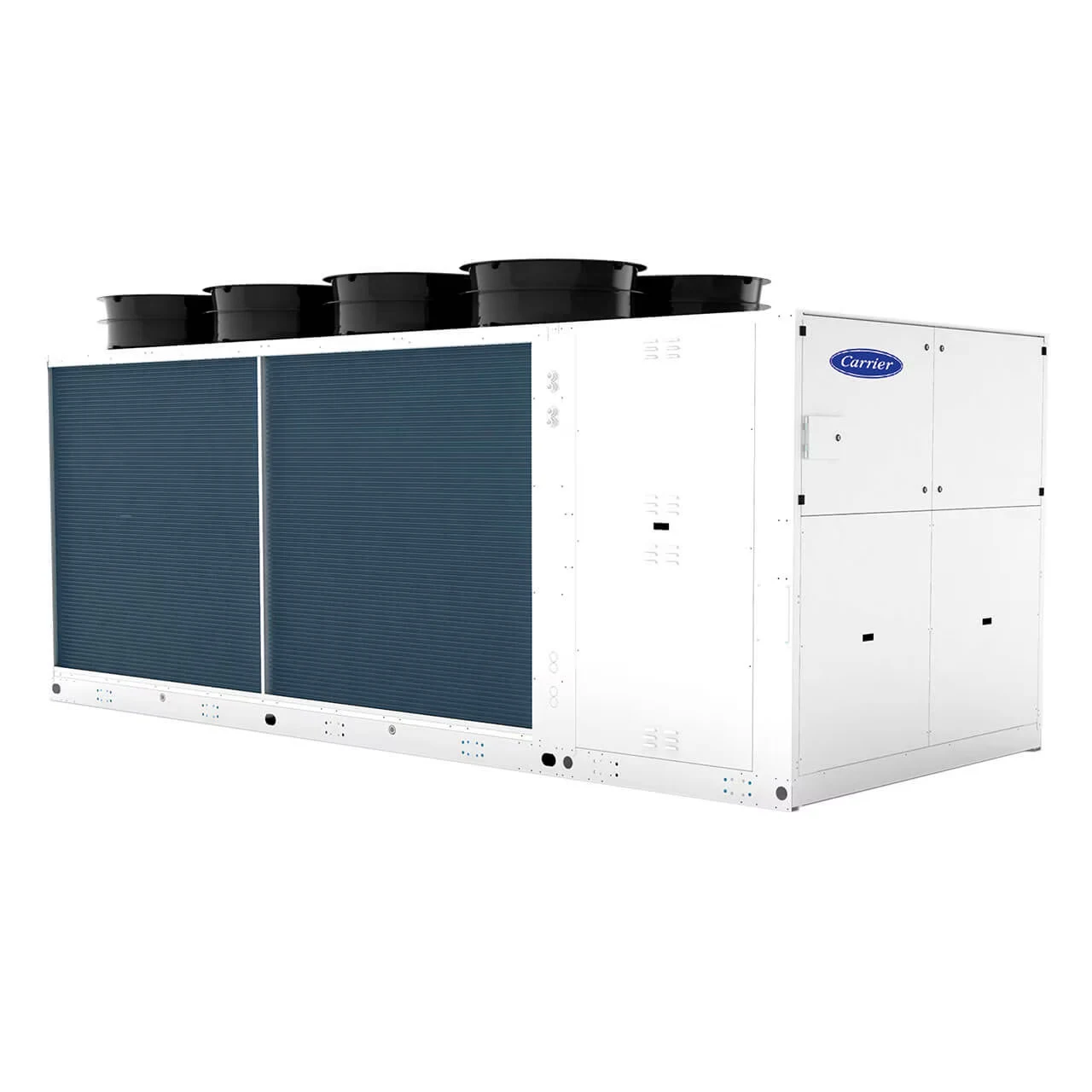

Carrier AquaSnap 30FQ (67.5 kW)

Specifications and technical data

Air Source (ASHP)CommercialR454B67.5 kW

Manufacturer	Carrier
Model	AquaSnap 30FQ
Model code	30FQ 068 HALSRVP4U
Heat pump type	Air Source (ASHP) All Air Source heat pumps →
Application	Commercial All Commercial heat pumps →
Refrigerant	R454B All R454B heat pumps →
Mode	Heating & cooling
Heating capacity	67.5 kW
Max heating output (low temp)	67.5 kW at A7/W45
COP (heating)	3.5 at A7/W45
SCOP (heating)	4.02 at Not stated
Operating range (air)	from -20 °C
Heating flow temperature	up to 60 °C
Power input	19.3 kW
Electrical supply	380-415V (Three Phase)
Cooling capacity	57.8 kW
Max cooling output (high temp)	57.8 kW at A35/W7
EER (cooling)	2.7 at A35/W7
Dimensions (H×W×D)	1920 × 3060 × 1265 mm
Operational Weight	938 kg
Sound power level	77 dB(A) (Sound Power LW(A))
Data added	21/06/2026
Data source	Manufacturer Data Sheet
Verification	Verified by a human

Free data sheet (PDF) →

Check noise at a neighbour’s window (MCS 020 a) →

View manufacturer page →

Carrier AquaSnap 30FQ is a 67.5 kW air source heat pump, providing heating and cooling, using R454B refrigerant.
