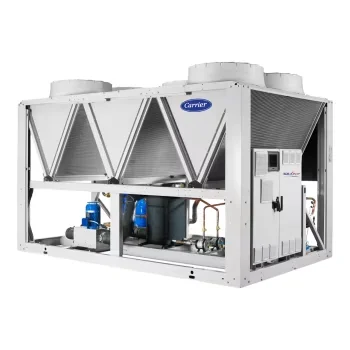

Carrier AquaSnap 30RQ (336 kW)
Specifications and technical data
Air Source (ASHP)CommercialR32336 kW
| Manufacturer | Carrier |
|---|---|
| Model | AquaSnap 30RQ |
| Model code | 30RQP 330R |
| Heat pump type | Air Source (ASHP) |
| Application | Commercial |
| Refrigerant | R32 |
| Mode | Heating & cooling |
| Heating capacity | 336 kW |
| Max heating output (low temp) | 329 kW at A7/W45 |
| COP (heating) | 3.81 at A7/W35 |
| SCOP (heating) | 3.81 at W35 |
| Operating range (air) | -20 to 48 °C |
| Heating flow temperature | up to 45 °C |
| Power input | 88.19 kW |
| Electrical supply | 380-415V (Three Phase) |
| Cooling capacity | 324 kW |
| Max cooling output (high temp) | 324 kW at A35/W7 |
| EER (cooling) | 2.8 at A35/W7 |
| SEER (cooling) | 4.21 at W7 |
| Dimensions (H×W×D) | 2324 × 2253 × 3604 mm |
| Operational Weight | 2452 kg |
| Sound power level | 93.5 dB(A) (Sound Power LW(A)) |
| Data added | 21/06/2026 |
| Data source | Manufacturer Data Sheet |
Carrier AquaSnap 30RQ is a 336 kW air source heat pump, providing heating and cooling, using R32 refrigerant.
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
