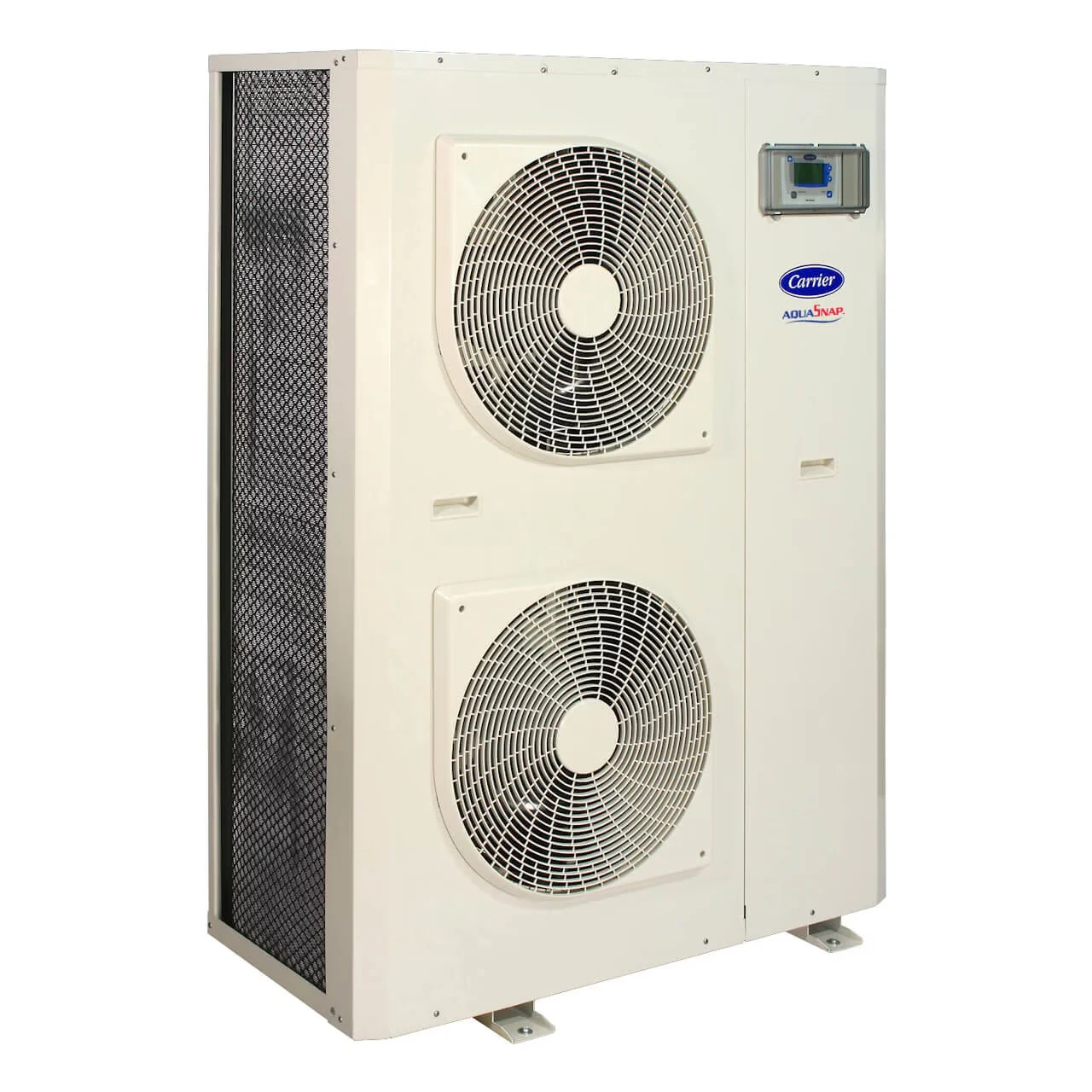

Carrier AquaSnap 30RQ

Specifications and technical data

Air Source (ASHP)CommercialR410A17.6 kW

Manufacturer	Carrier
Model	AquaSnap 30RQ
Model code	30RQ 017
Heat pump type	Air Source (ASHP)
Application	Commercial
Refrigerant	R410A
Mode	Heating & cooling
Heating capacity	17.6 kW
COP	4.03 at A7/W35
SCOP	3.23 (conditions not stated)
EER (cooling)	3.1
Flow temperature	up to 45 °C
Dimensions (H×W×D)	1579 × 584 × 1136 mm
Weight	206 kg
Sound power level	72 dB(A) (Sound power Lw standard unit)
Data added	2026-06-11
Data source	Carrier PSD

Notes

Air-cooled AquaSnap scroll heat pump for small commercial heating and cooling applications.

HA1 heating capacity 17.6 kW at A7/W35; HA2 A7/W45 capacity 17.0 kW, COP 3.21. Cooling CA1 capacity 15.8 kW and EER 3.1; SEER 12/7°C 3.42. R410A charge 6.4 kg. Weight with hydraulic module used; without hydraulic module 191 kg.

○ Awaiting verification

✎ Suggest a correction to this data

Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
