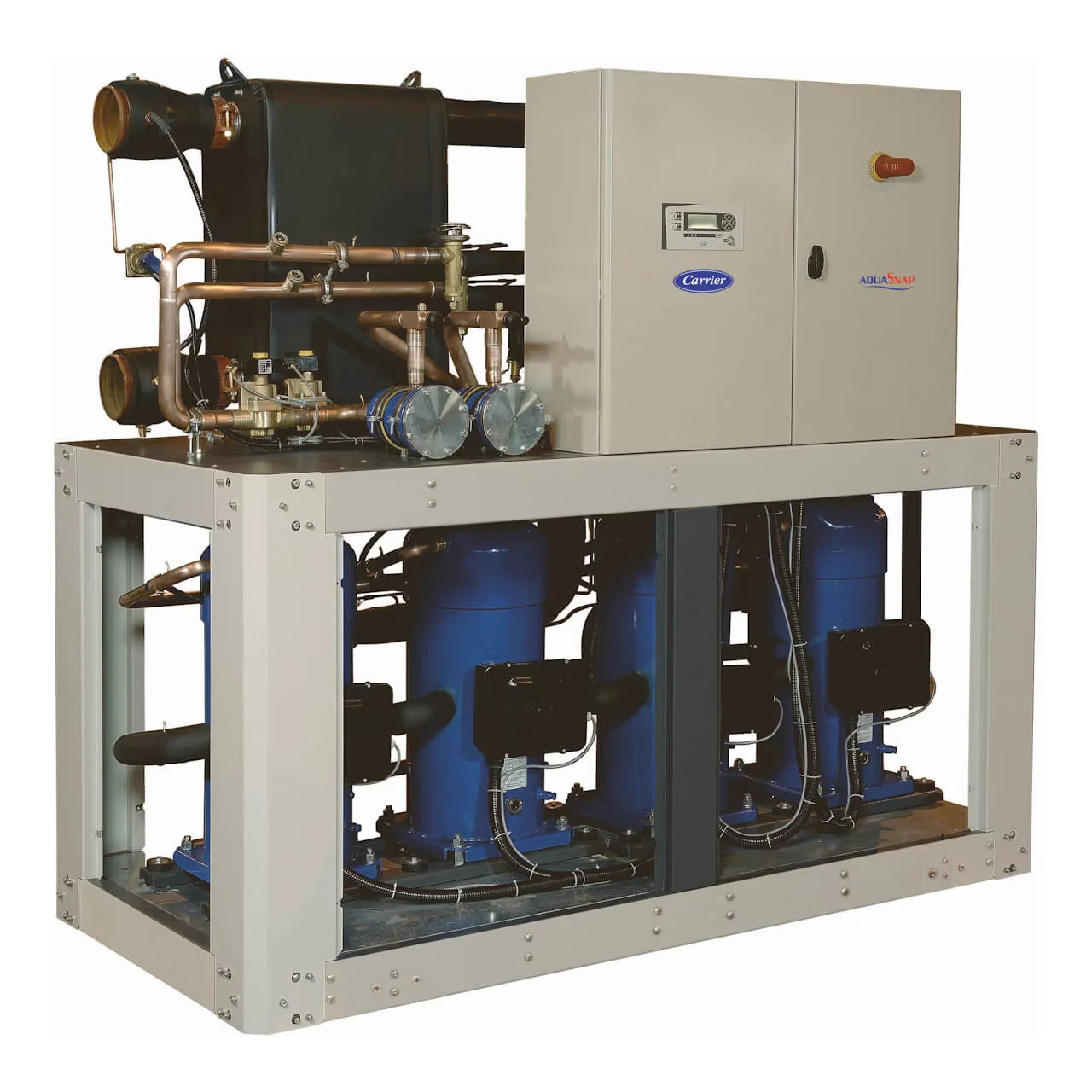

Carrier AquaSnap 30WI (384 kW)
Specifications and technical data
Water Source (WSHP)CommercialR410A384 kW
| Manufacturer | Carrier |
|---|---|
| Model | AquaSnap 30WI |
| Model code | 30WI 1000 V |
| Heat pump type | Water Source (WSHP) |
| Application | Commercial |
| Refrigerant | R410A |
| Mode | Heating & cooling |
| Heating capacity | 384 kW |
| Max heating output (low temp) | 384 kW at W7/W35 |
| SCOP (heating) | 5.47 at W35 |
| Operating range (air) | -12 to 18 °C |
| Heating flow temperature | 20–50 °C |
| Electrical supply | 380-415V (Three Phase) |
| Cooling capacity | 320 kW |
| Max cooling output (high temp) | 320 kW at W35/W7 |
| EER (cooling) | 4.5 at W35/W7 |
| SEER (cooling) | 4.96 at W7 |
| Dimensions (H×W×D) | 1869 × 996 × 2099 mm |
| Operational Weight | 1378 kg |
| Sound power level | 89 dB(A) (Sound Power LW(A)) |
| Data added | 21/06/2026 |
| Data source | Manufacturer Data Sheet |
Carrier AquaSnap 30WI is a 384 kW water source heat pump, providing heating and cooling, using R410A refrigerant.
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
