Clivet Spinchiller4 Large Premium (700 kW)

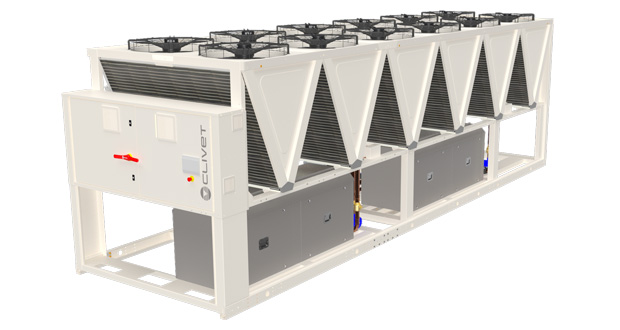

Image courtesy of Clivet · click photo to enlarge

Clivet Spinchiller4 Large Premium (700 kW)

Specifications and technical data

Air Source (ASHP)CommercialR32700 kW

Manufacturer	Clivet
Model	Spinchiller4 Large Premium
Model code	WSAN-YSC4 260.8
Heat pump type	Air Source (ASHP) All Air Source heat pumps →
Application	Commercial All Commercial heat pumps →
Refrigerant	R32 All R32 heat pumps →
Mode	Heating & cooling
Heating capacity	700 kW
Max heating output (low temp)	700 kW at A7/W45
COP (heating)	3.12 at A7/W45
Operating range (air)	from -15 °C
Heating flow temperature	up to 55 °C
Electrical supply	380-415V (Three Phase)
Cooling capacity	670 kW
Max cooling output (high temp)	670 kW at A35/W7
EER (cooling)	2.82 at A35/W7
SEER (cooling)	4.56 at W7
Dimensions (H×W×D)	2520 × 8200 × 2250 mm
Operational Weight	5856 kg
Sound power level	93 dB(A) (Sound Power LW(A))
Data added	2026-07-12
Data source	Manufacturer Data Sheet
Verification	Verified by a human

Free data sheet (PDF) →

Check noise at a neighbour’s window (MCS 020 a) →

View manufacturer page →

Clivet Spinchiller4 Large Premium is a 700 kW air source heat pump, providing heating and cooling, using R32 refrigerant.

Where to buy (UK)

UK Supplier	Plumbing Superstore
UK Supplier	Mr Central Heating
UK Supplier	Beet BG

✎ Suggest a correction to this data

Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
