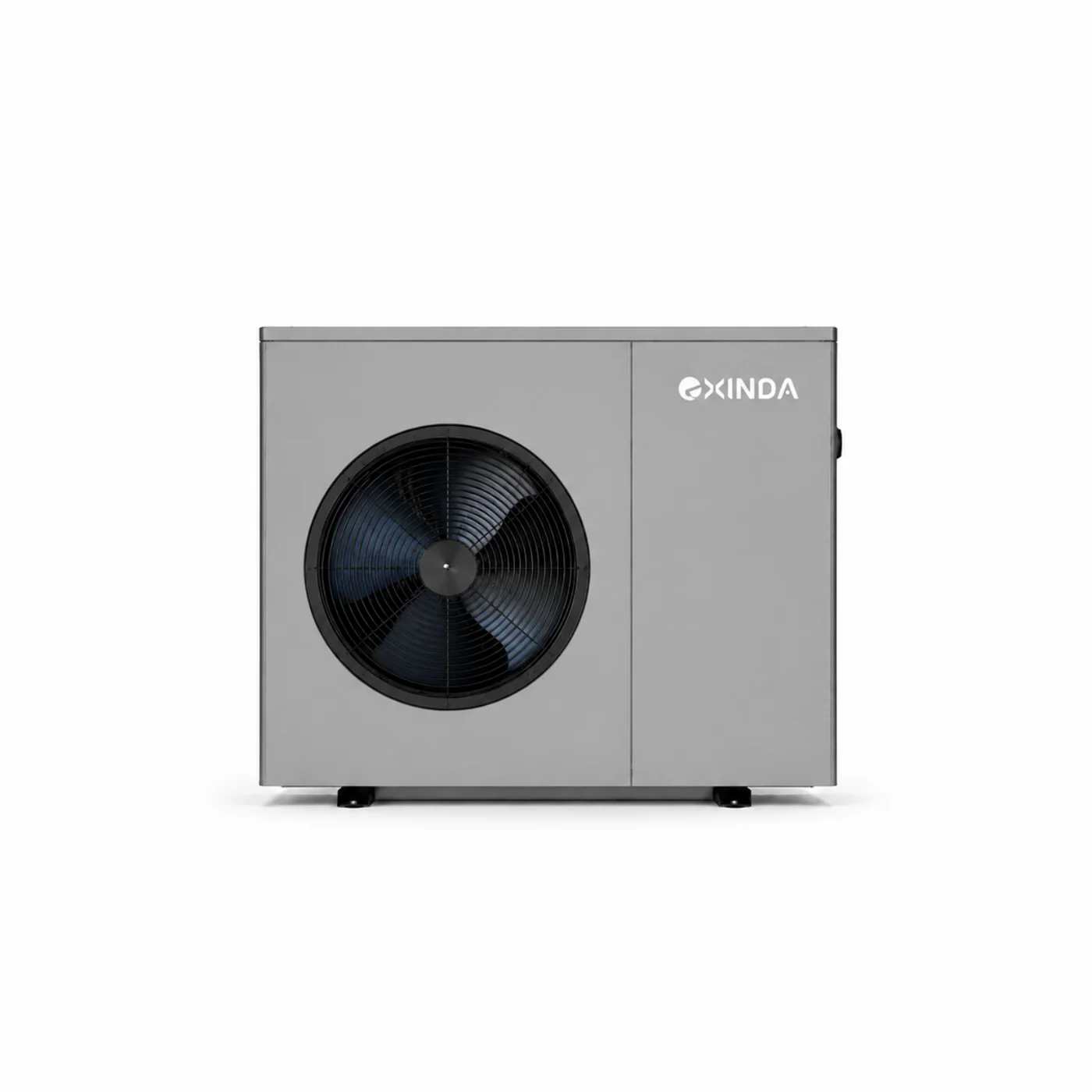

Exinda Air to Water Heat Pump

Specifications and technical data

Air Source (ASHP)CommercialR3216.45 kW

Manufacturer	Exinda
Model	Air to Water Heat Pump
Model code	FBMBHFT3B1
Heat pump type	Air Source (ASHP) All Air Source heat pumps →
Application	Commercial All Commercial heat pumps →
Refrigerant	R32 All R32 heat pumps →
Mode	Heating & cooling
Heating capacity	16.45 kW
Max heating output (low temp)	16.45 kW at A8/W35
COP (heating)	3.67 at A8/W35
Operating range (air)	-25 to 43 °C
Heating flow temperature	35–60 °C
Cooling capacity	10.16 kW
Max cooling output (high temp)	10.16 kW at A35/W7
Cooling flow temperature	7–27 °C
EER (cooling)	2.72 at A35/W7
Data added	2026-09-14
Data source	Manufacturer submittal data sheet (Exinda)
Verification	Verified by a human

Free data sheet (PDF) →

View manufacturer page →

Exinda air-to-water heat pump, North American specification. Rated heating 56,118 Btu/h (16.45 kW) at 47 °F ambient and 95 °F leaving water; rated cooling 34,660 Btu/h (10.16 kW) at 95 °F ambient and 45 °F leaving water. Nominal heating 48,000 Btu/h. R32 refrigerant, 3.97 lb charge. Ambient range -13 to 110 °F.
