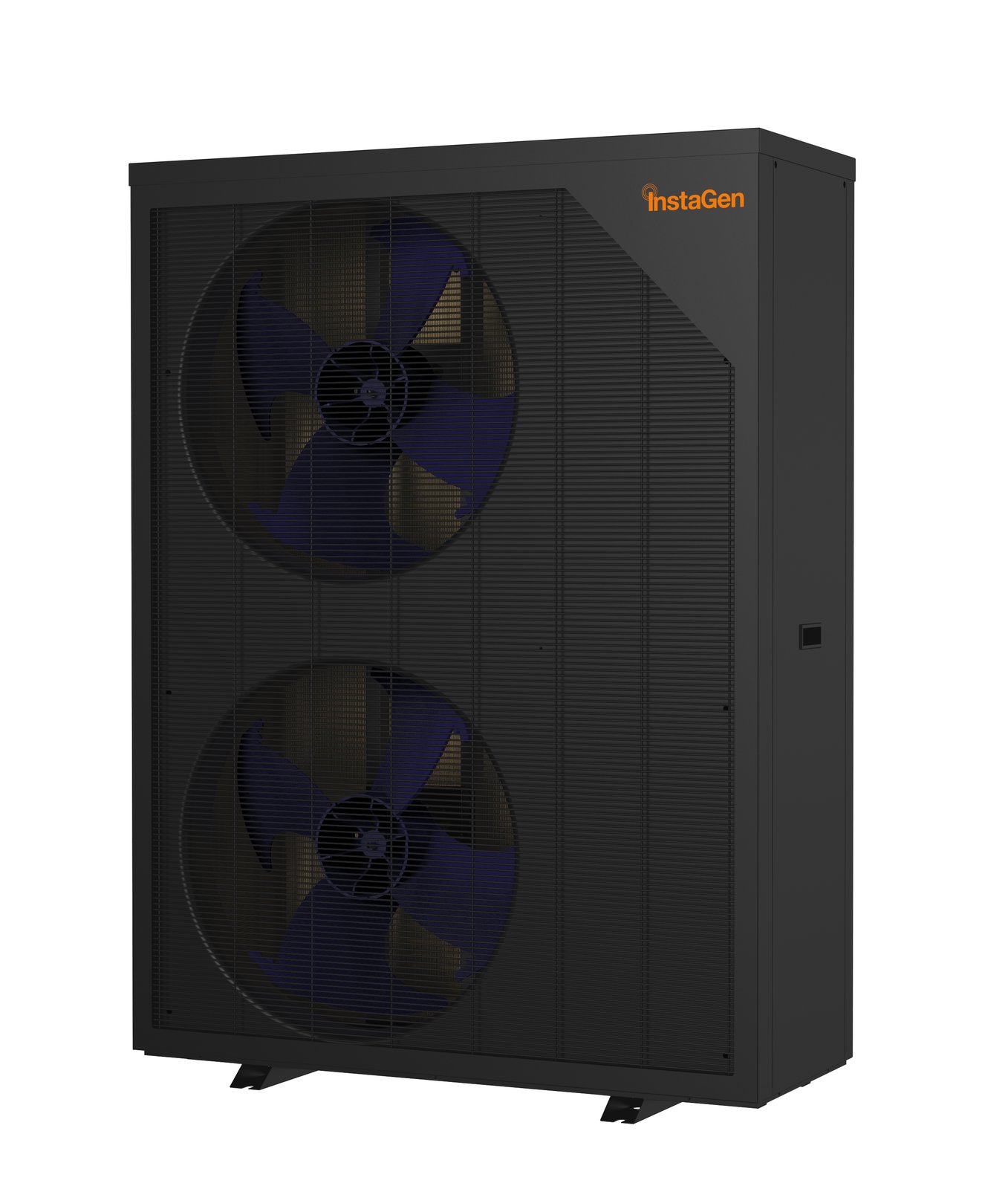

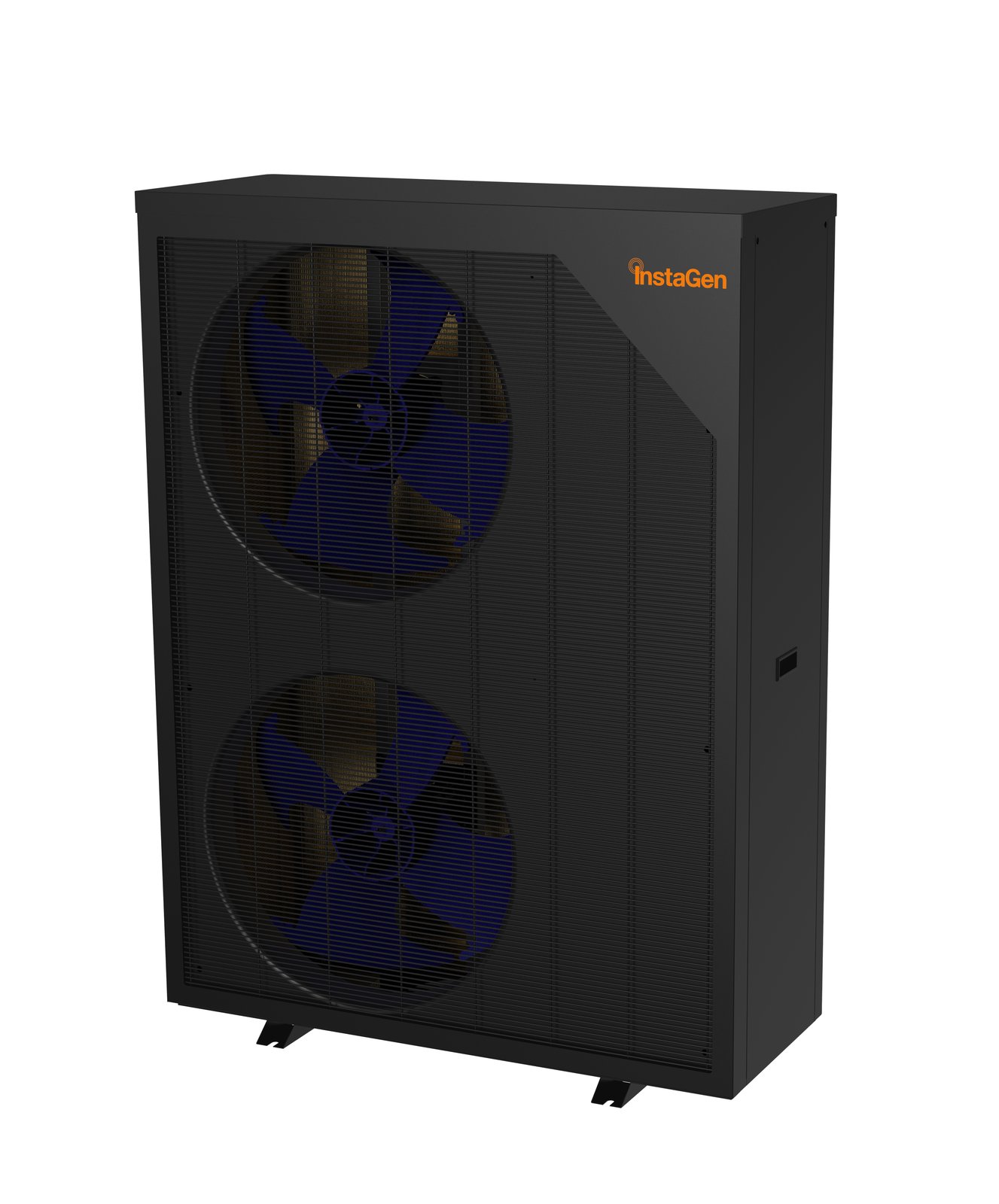

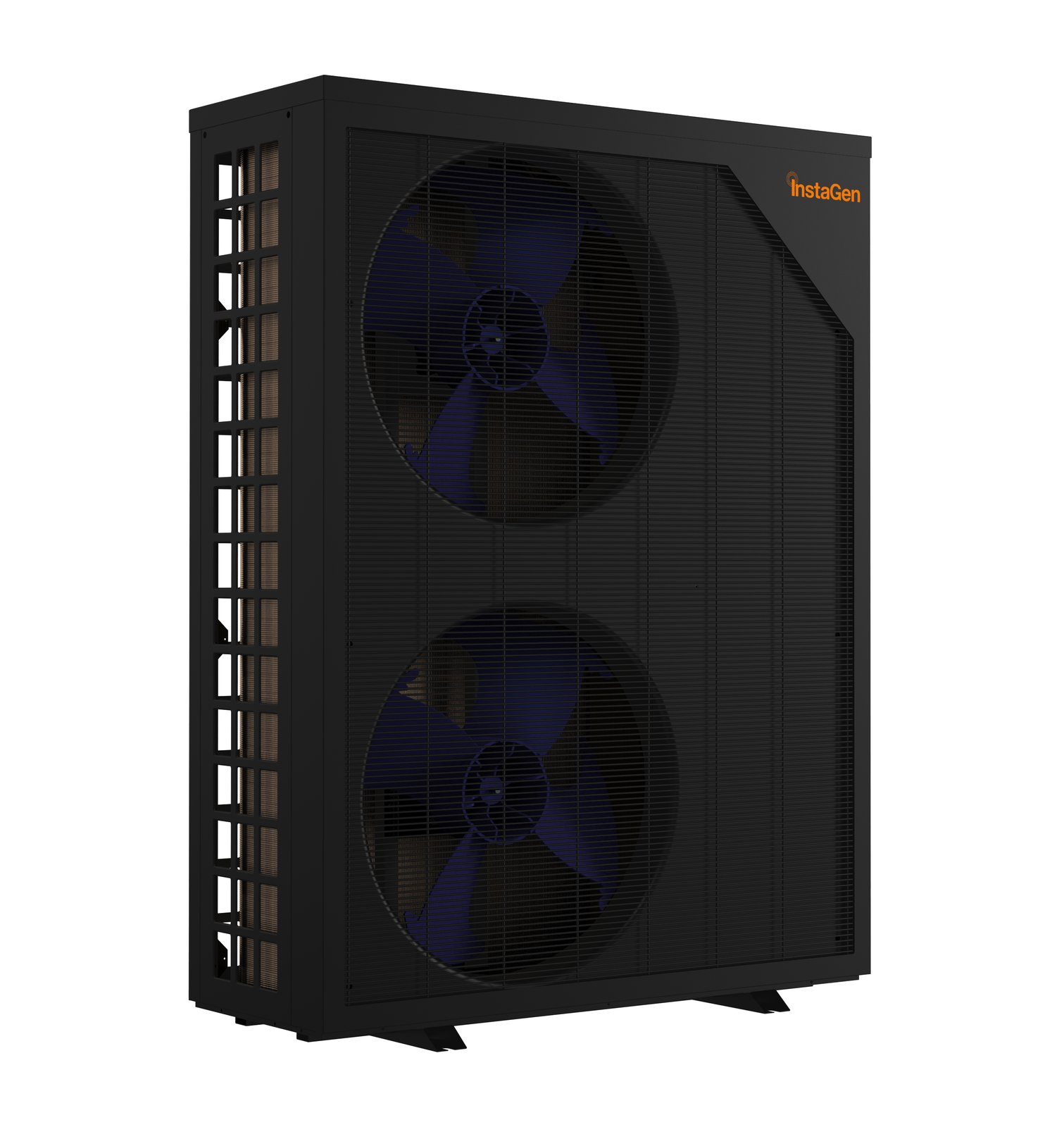

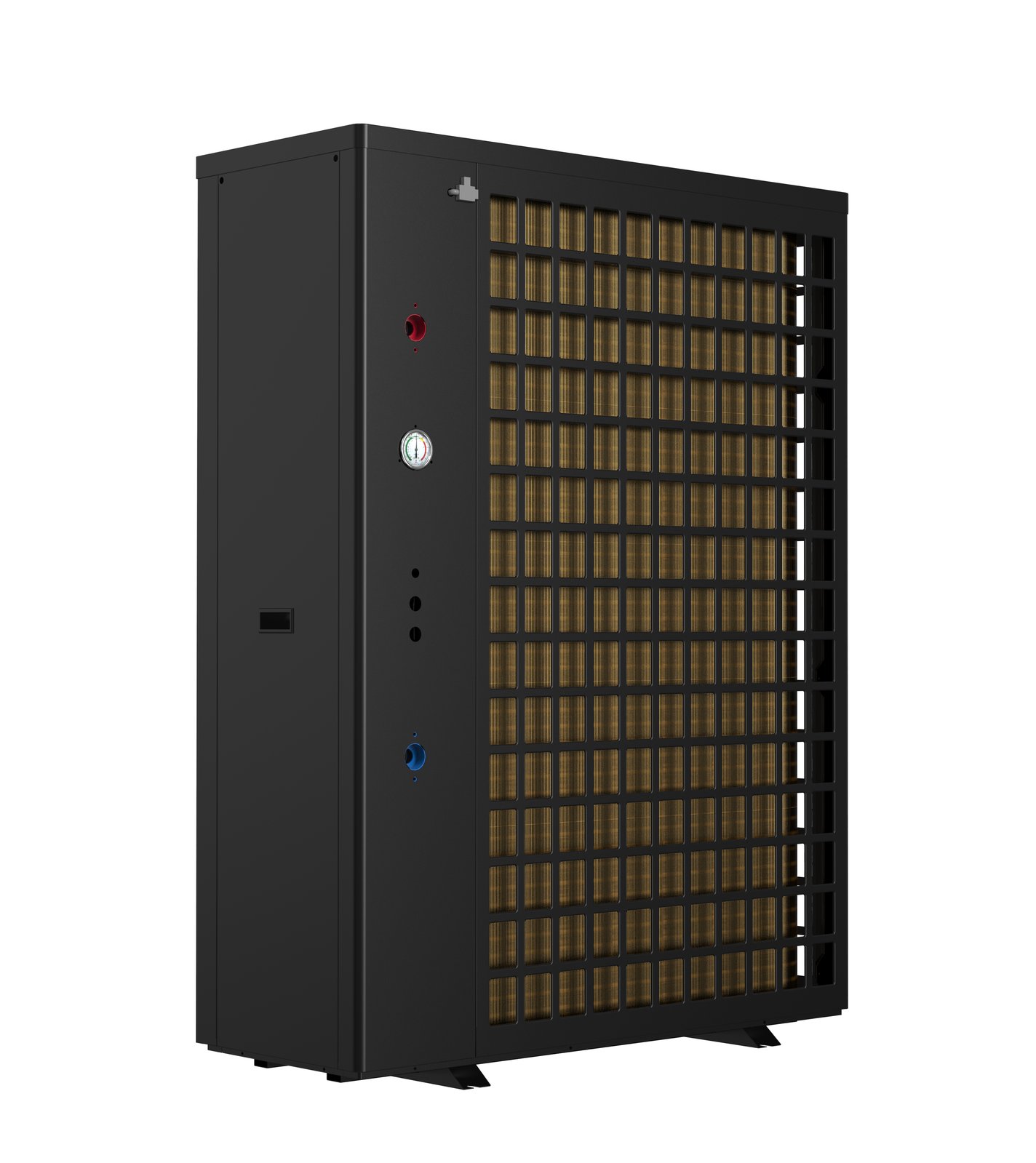

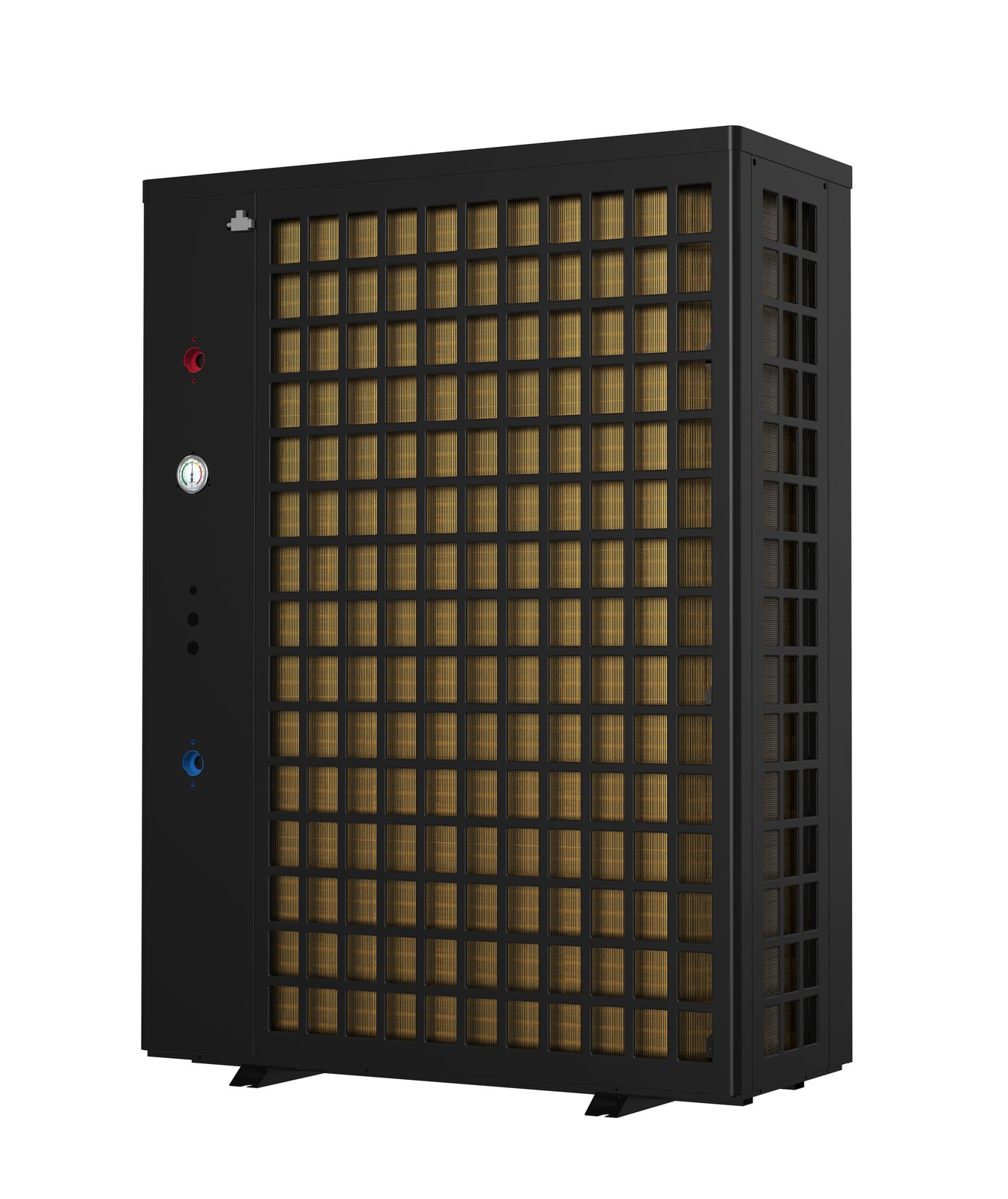

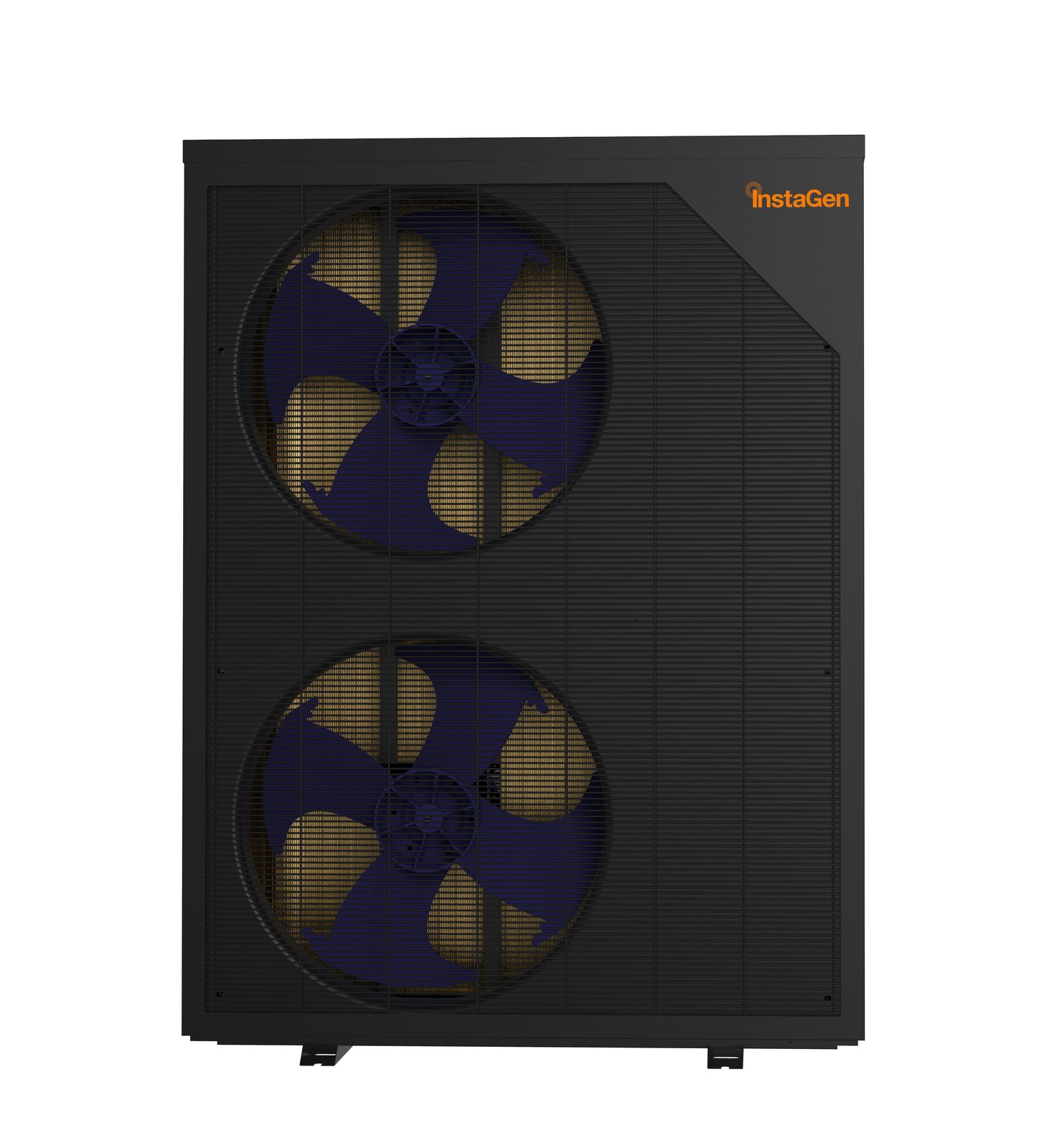

InstaGen IG16-MP1-A1
Specifications and technical data
Air Source (ASHP)ResidentialR2909.6–24 kW
| Manufacturer | InstaGen |
|---|---|
| Model | IG16-MP1-A1 |
| Model code | IG16-MP1-A1 |
| Heat pump type | Air Source (ASHP) |
| Application | Residential |
| Refrigerant | R290 |
| Mode | Heating & cooling |
| Heating capacity | 9.6–24 kW |
| Max heating output (low temp) | 19.6 kW at A7/W55 |
| COP (heating) | 5.24 at A7/W35 |
| Operating range (air) | -25 to 45 °C |
| Heating flow temperature | 15–75 °C |
| Electrical supply | 230V/1P/50Hz |
| Cooling capacity | 6.9–17 kW |
| Max cooling output (high temp) | 17 kW at A35/W7 |
| EER (cooling) | 3.12 at A35/W7 |
| Dimensions (H×W×D) | 1580 × 1160 × 480 mm |
| Operational Weight | 220 kg |
| Sound power level | 58 dB(A) (Sound Power LW(A)) |
| Data added | 17/07/2026 |
| Data source | Manufacturer Data Sheet (InstaGen-ASHP-Data-Sheet-July-2026.pdf) |
| MCS certification | ✓ MCS listed — eligible for Boiler Upgrade Scheme (MCS-certified install required) |
| MCS certificate no. | MCS HP0411/06 |
| MCS listing | View on MCS ↗ |
Where to buy (UK)
| Availability | Direct sales from manufacturer: InstaGen |
|---|
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
