Image courtesy of InstaGen · click photo to enlarge

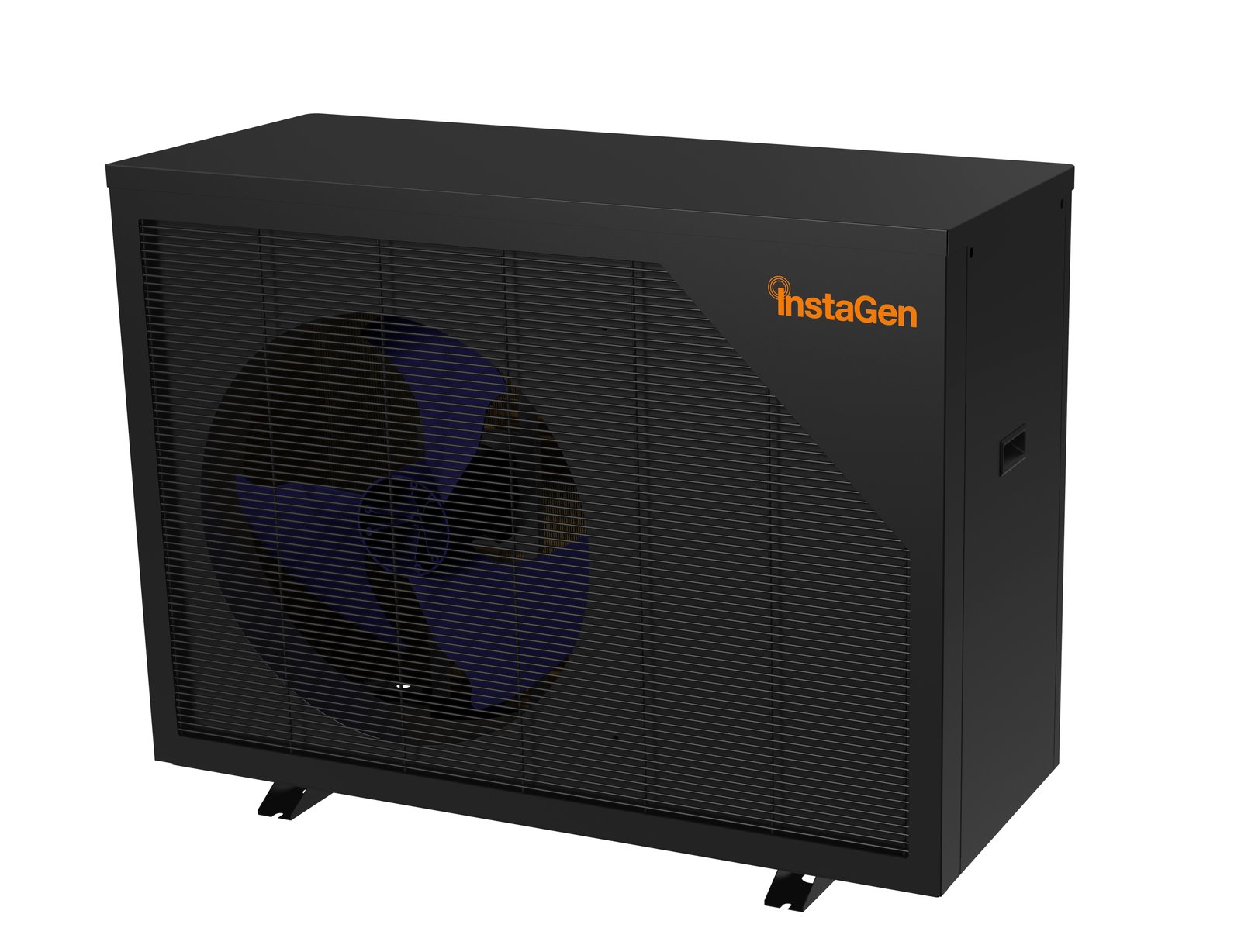

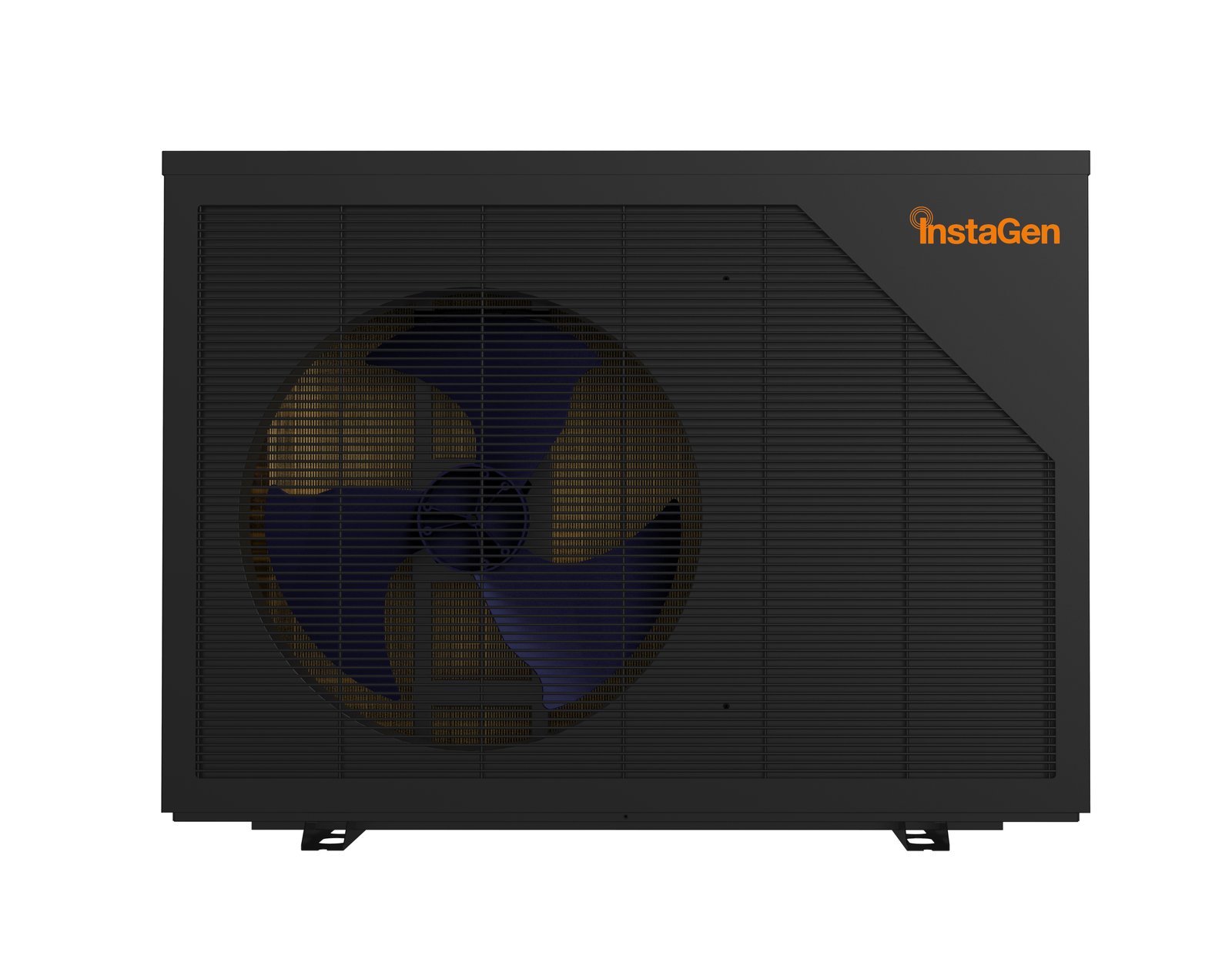

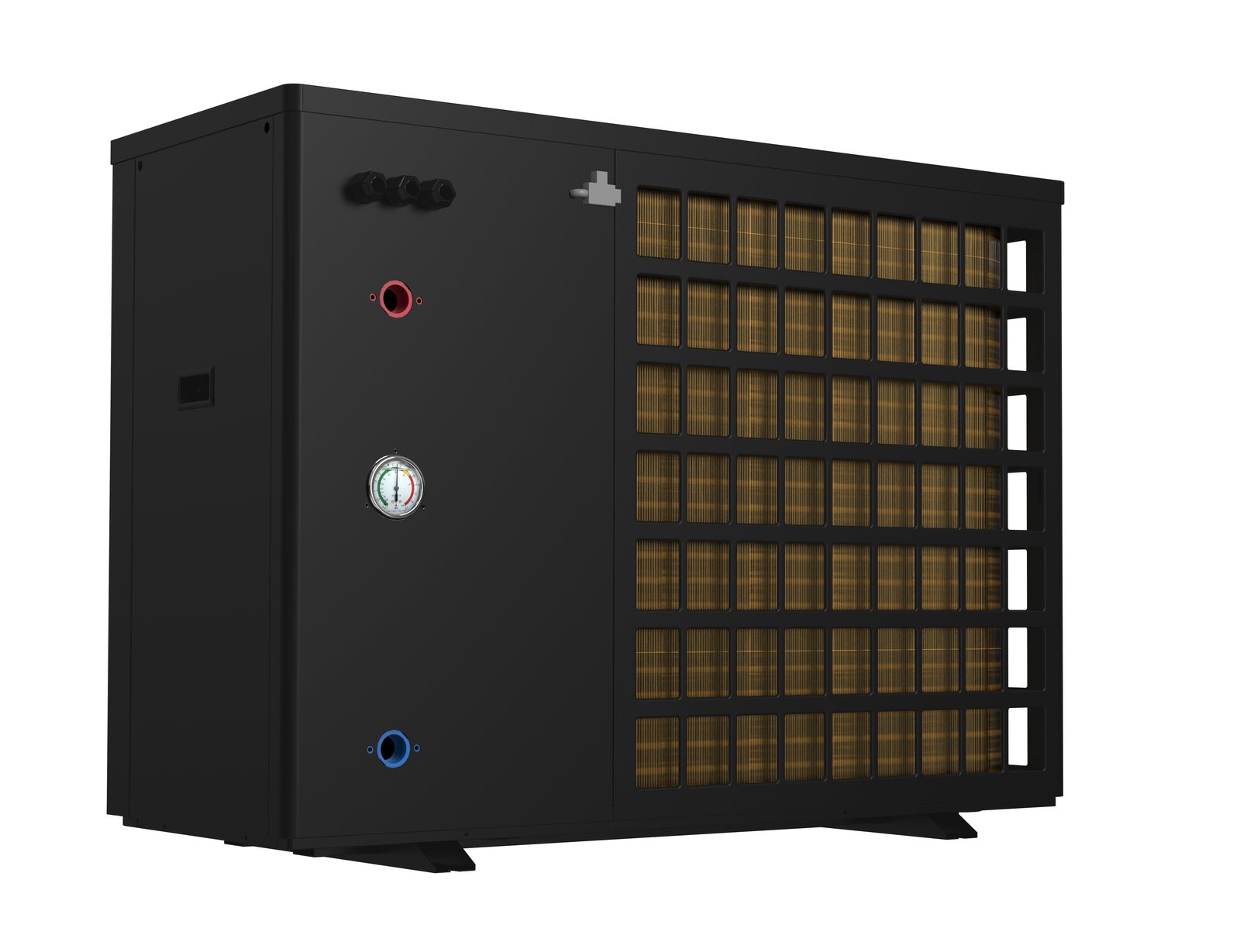

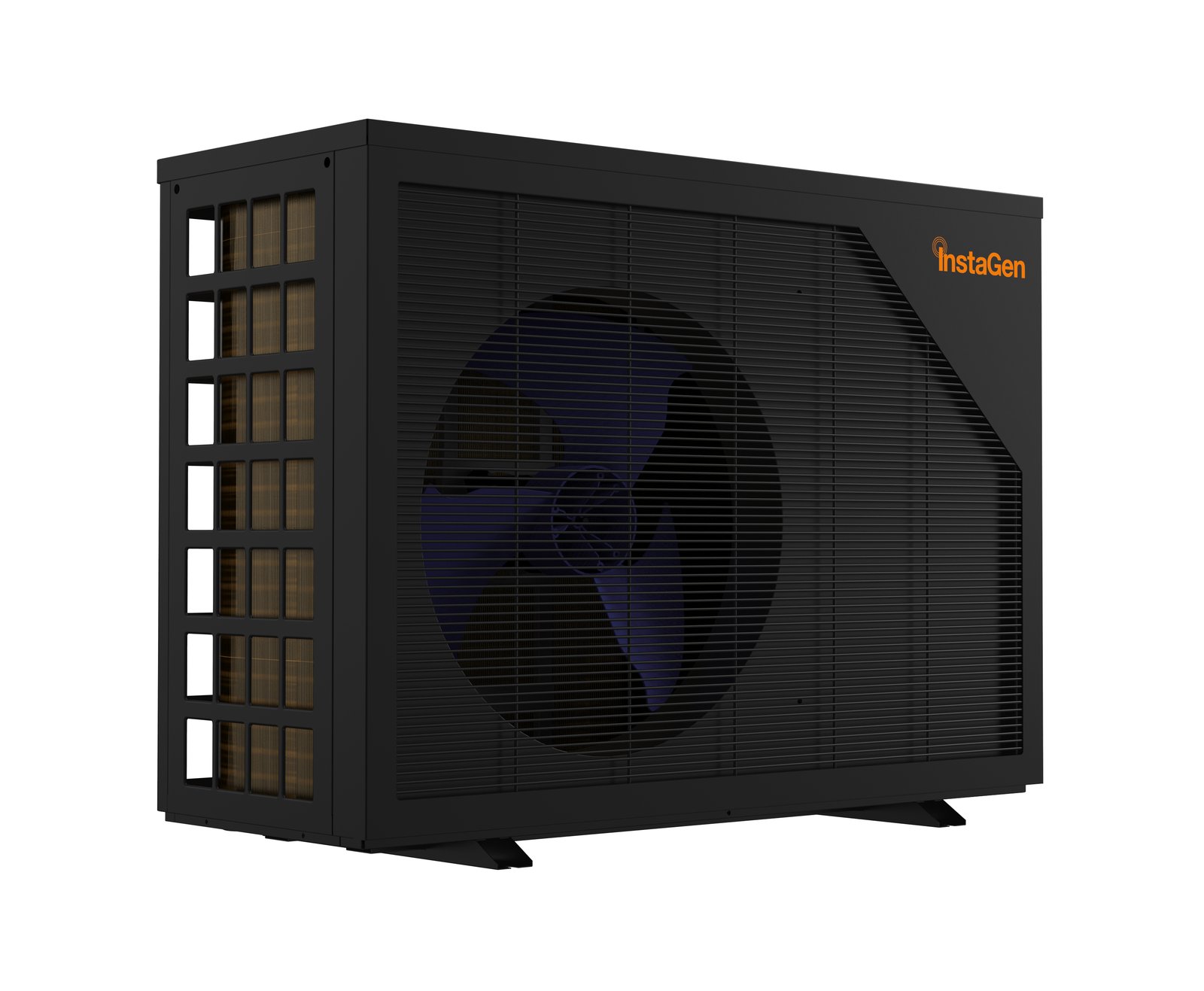

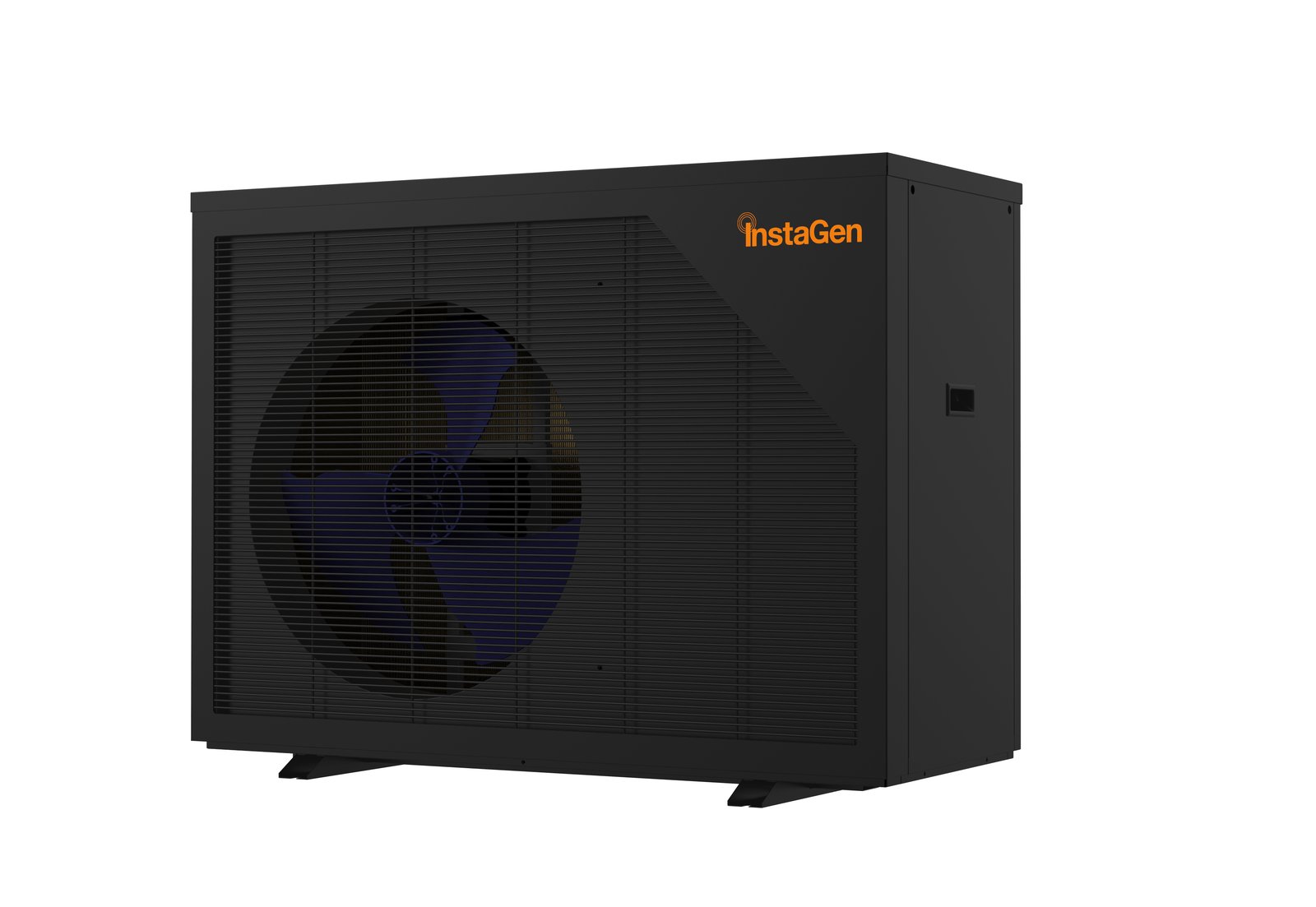

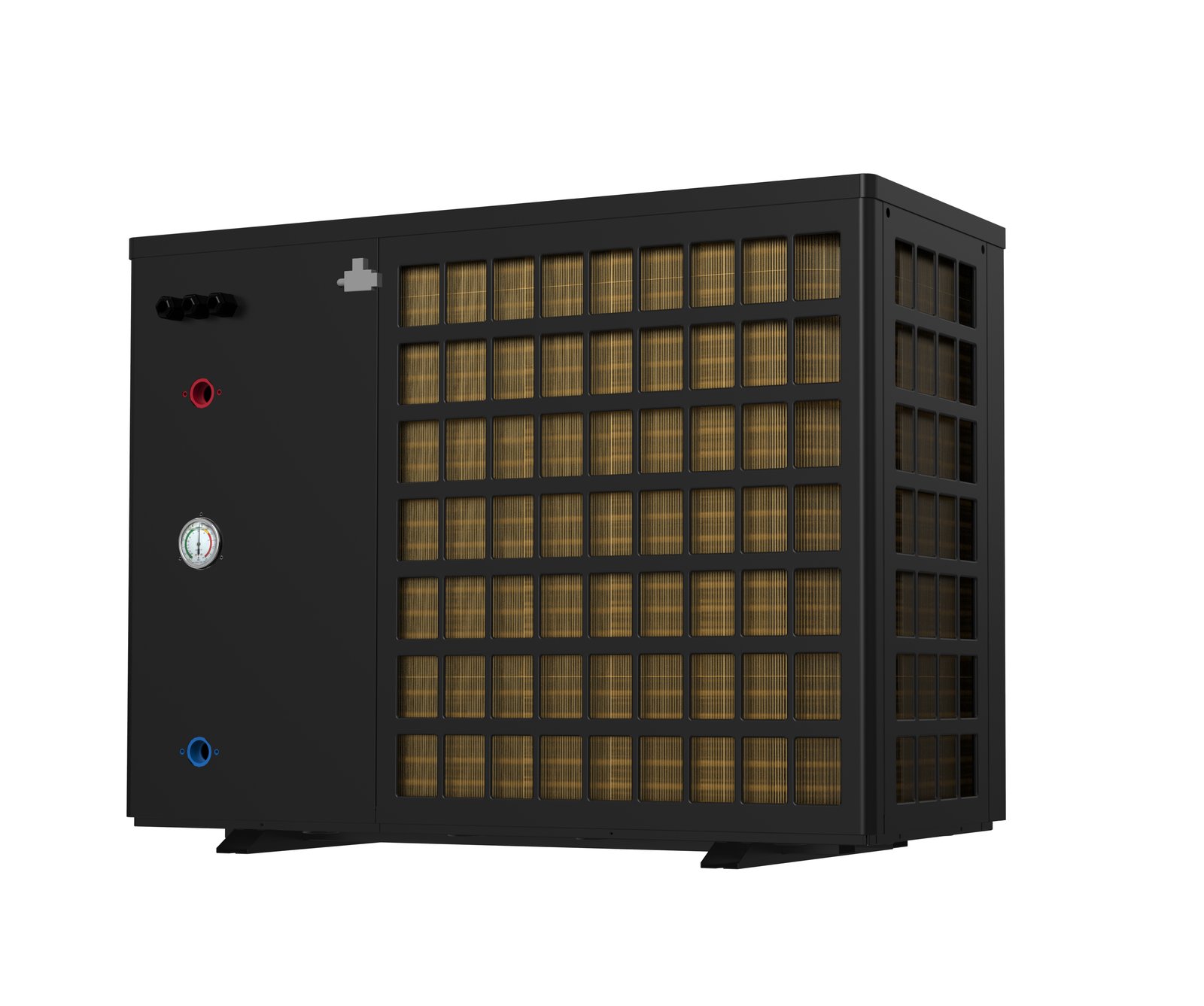

InstaGen IG6-MP1-A1
Specifications and technical data
Air Source (ASHP)ResidentialR2903.3–8.3 kW
| Manufacturer | InstaGen |
|---|---|
| Model | IG6-MP1-A1 |
| Model code | IG6-MP1-A1 |
| Heat pump type | Air Source (ASHP) |
| Application | Residential |
| Refrigerant | R290 |
| Mode | Heating & cooling |
| Heating capacity | 3.3–8.3 kW |
| Max heating output (low temp) | 7.4 kW at A7/W55 |
| COP (heating) | 5.17 at A7/W35 |
| Operating range (air) | -25 to 45 °C |
| Heating flow temperature | 15–75 °C |
| Electrical supply | 220-240V (Single Phase) |
| Cooling capacity | 2.4–5.8 kW |
| Max cooling output (high temp) | 5.8 kW at A35/W7 |
| EER (cooling) | 3.04 at A35/W7 |
| Dimensions (H×W×D) | 820 × 1080 × 460 mm |
| Operational Weight | 112 kg |
| Sound power level | 58 dB(A) (Sound Power LW(A)) |
| Data added | 17/07/2026 |
| Data source | Manufacturer Data Sheet (InstaGen-ASHP-Data-Sheet-July-2026.pdf) |
| MCS certification | ✓ MCS listed — eligible for Boiler Upgrade Scheme (MCS-certified install required) |
| MCS certificate no. | MCS HP0411/01 |
| MCS listing | View on MCS ↗ |
Where to buy (UK)
| Availability | Direct sales from manufacturer: InstaGen |
|---|
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
