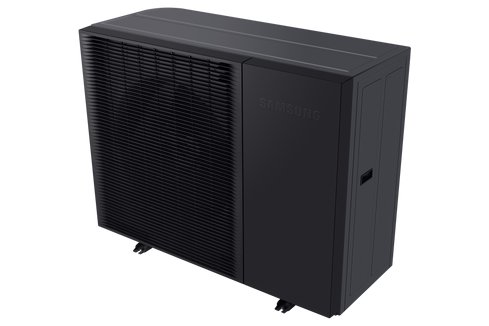

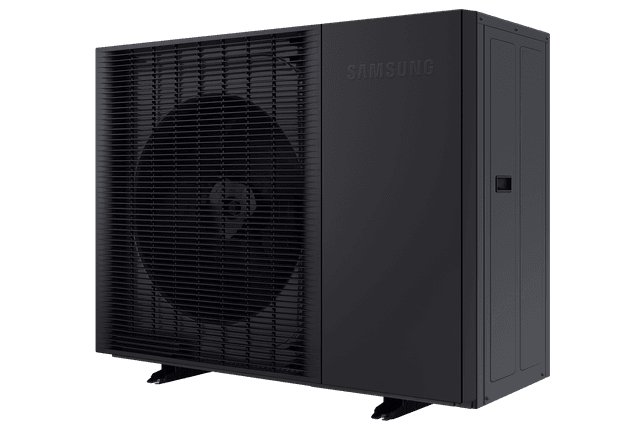

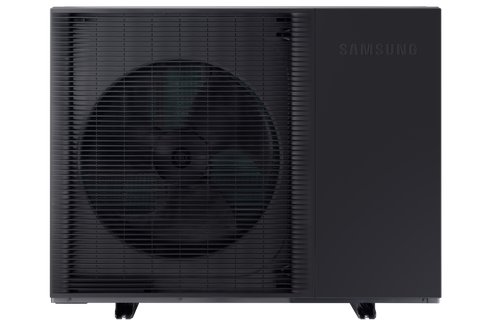

Samsung EHS Mono HT Quiet

Specifications and technical data

Air Source (ASHP)ResidentialR328 kW

Manufacturer	Samsung
Model	EHS Mono HT Quiet
Model code	AE080BXYDEG/EU
Heat pump type	Air Source (ASHP)
Application	Residential
Refrigerant	R32
Mode	Heating & cooling
Heating capacity	8 kW
COP	5 at A7/W35
SCOP	4.46 at W35
EER (cooling)	4.71
Operating range (air)	-30 to 43 °C
Flow temperature	15–70 °C
Dimensions (H×W×D)	1018 × 1270 × 530 mm
Weight	126 kg
Sound power level	56 dB(A) (Sound Power LW(A))
Data added	2026-07-01
Data source	Manufacturer Data Sheet

Notes

Samsung EHS Mono HT Quiet R32 monobloc outdoor heat pump for high-temperature residential heating and cooling.

Cooling capacity 12.0 kW, EER 4.55, cooling power input 2.64 kW. Sound pressure 46 dBA; refrigerant charge 3.3 kg R32. Cooling operating range 10~46°C; heating and DHW -30~43°C. Heating LWT 15~70°C; cooling LWT 5~25°C. MCA/MFA 32.0/35.2 A; cooling/heating current 12.46/11.12 A; airflow 95 CMM. Samsung page states HT Quiet can provide leaving water temperature to 70°C.
