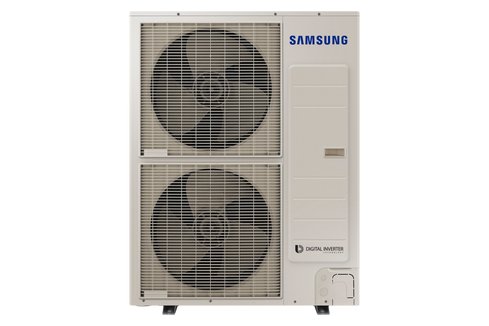

Image courtesy of Samsung · click photo to enlarge

Samsung EHS Split Outdoor R410A

Specifications and technical data

✓ BUS eligibleAir Source (ASHP)ResidentialR410A16.7 kW

Manufacturer	Samsung
Model	EHS Split Outdoor R410A
Model code	AE160AXEDEH/EU
Heat pump type	Air Source (ASHP) All Air Source heat pumps →
Application	Residential All Residential heat pumps →
Refrigerant	R410A All R410A heat pumps →
Mode	Heating & cooling
Heating capacity	16.7 kW
Max heating output (low temp)	12.8 kW at A-7/W55
COP (heating)	4.26 at A7/W35
Operating range (air)	-25 to 35 °C
Heating flow temperature	15–55 °C
Electrical supply	220-240V (Single Phase)
Cooling capacity	16 kW
Max cooling output (high temp)	16 kW at A35/W18
Cooling flow temperature	5–25 °C
EER (cooling)	3.62 at Not stated
Dimensions (H×W×D)	1420 × 940 × 330 mm
Operational Weight	100.5 kg
Sound power level	54 dB(A) (Sound Power LW(A))
Price (unit only)	~£2,573 (checked 2026-08-03)
Data added	2026-07-01
Data source	Manufacturer Data Sheet
Verification	Verified by a human
Boiler Upgrade Scheme	✓ BUS eligible — Listed on the Ofgem BUS Product Eligibility List (24 Sep 2026). Grant also needs an MCS-certified installer and a qualifying system design. Funding guide
PEL certificate no.	MCS HP0227/17
MCS certification	✓ MCS listed
MCS certificate no.	MCS HP0227/17
MCS listing	View on MCS ↗

Free data sheet (PDF) →

Check noise at a neighbour’s window (MCS 020 a) →

View manufacturer page →

Samsung EHS Split Outdoor R410A is a 16 kW air source heat pump, providing heating and cooling, using R410A refrigerant.

Where to buy (UK)

UK Supplier	The Heat Pump Warehouse
UK Supplier	Secon Renewables
UK Supplier	City Plumbing
UK Supplier	Eco Wizard
UK Supplier	The Underfloor Heating Store

✎ Suggest a correction to this data

Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
