Samsung EHS Mono HT Quiet R32
Specifications and technical data
Also known as: AE140BXYDGG/EU & MIM-E03EN, AE140BXYDGG/EU & MIM-E03CN, AE140BXYDGG/EU & AE260RNWMGG/EU, AE140BXYDGG/EU & AE200DNXMPK/EU, AE140BXYDGG/EU & AE200DNWMPK/EU, AE140BXYDGG/EU & AE160DNZMPK/EU, AE140BXYDGG/EU & AE160DNYMPK/EU, AE140BXYDGG/EU & MIM-E03FN
| Manufacturer | Samsung |
|---|---|
| Model | EHS Mono HT Quiet R32 |
| Model code | AE140BXYDGG/EU |
| Heat pump type | Air Source (ASHP) All Air Source heat pumps → |
| Application | Residential All Residential heat pumps → |
| Refrigerant | R32 All R32 heat pumps → |
| Mode | Heating & cooling |
| Heating capacity | 14 kW |
| SCOP (heating) | 4.68 at W35 |
| Heating flow temperature | 15–70 °C |
| Electrical supply | 380-415V (Three Phase) |
| Cooling flow temperature | 5–25 °C |
| Dimensions (H×W×D) | 1000 × 1270 × 530 mm |
| Operational Weight | 137 kg |
| Sound power level | 60 dB(A) (Sound Power LW(A)) |
| Data added | 2026-10-21 |
| Data source | Samsung EHS Mono HT Quiet AE**0BXYD*G/EU datasheet (Midsummer Energy, 11/04/23) |
| Verification | Verified by a human |
| Boiler Upgrade Scheme | ✓ BUS eligible — Listed on the Ofgem BUS Product Eligibility List (24 Sep 2026). Grant also needs an MCS-certified installer and a qualifying system design. Funding guide |
| PEL certificate no. | 011-1W0550_07; 011-1W0550_08; 011-1W0551_04; 011-1W0806_16; 011-1W0806_17; 011-1W0806_18; 011-1W0806_19; 011-1W0806_20; 011-1W0550_7; 011-1W0550_8; 011-1W0551_4 |
| MCS certification | ✓ MCS listed |
| MCS certificate no. | 011-1W0550_07; 011-1W0550_08; 011-1W0551_04; 011-1W0806_16; 011-1W0806_17; 011-1W0806_18; 011-1W0806_19; 011-1W0806_20; 011-1W0550_7; 011-1W0550_8; 011-1W0551_4 |
Check noise at a neighbour’s window (MCS 020 a) →

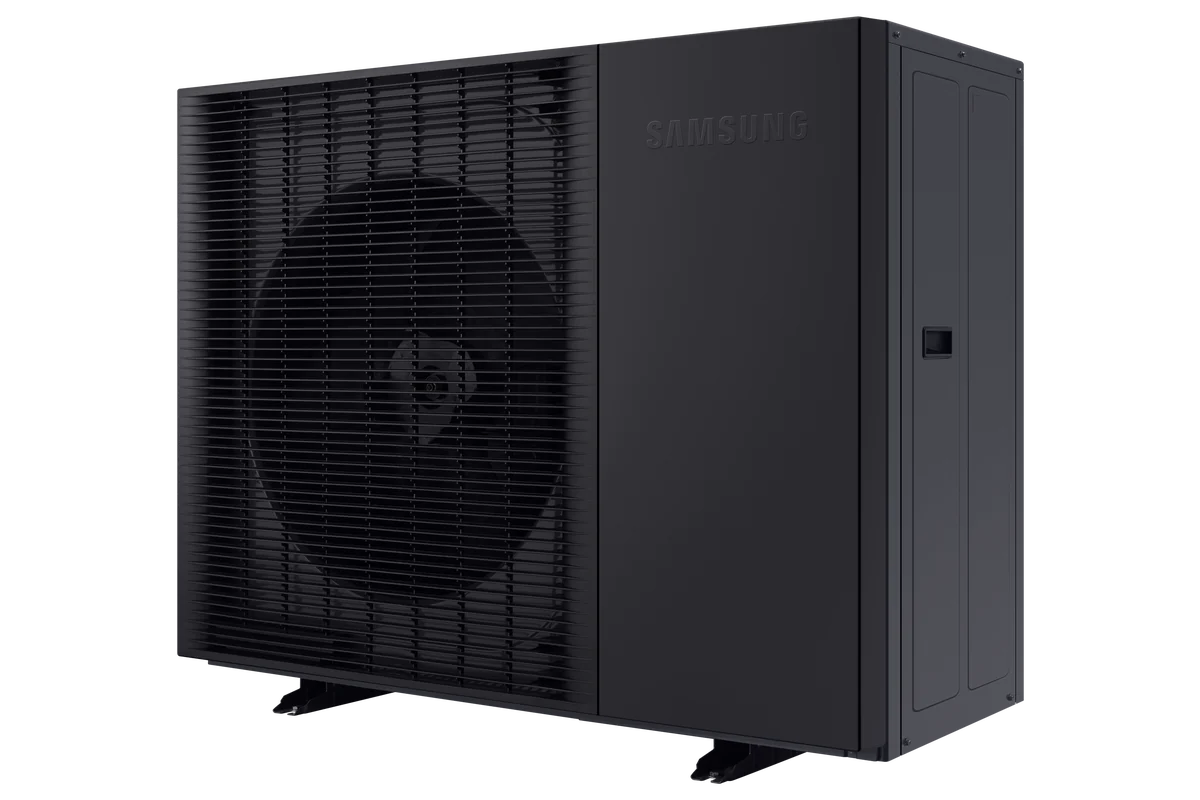

Samsung EHS Mono HT Quiet 14 kW R32 monobloc air-to-water heat pump, flow temperatures up to 70 °C, heating and cooling, three-phase.
Where to buy (UK)
| UK Supplier | The Heat Pump Warehouse |
|---|---|
| UK Supplier | Secon Renewables |
| UK Supplier | City Plumbing |
| UK Supplier | Eco Wizard |
| UK Supplier | The Underfloor Heating Store |
✎ Suggest a correction to this data
Alternatives to consider
Three Air Source (ASHP) heat pumps from other manufacturers closest in capacity to this one.
- Capacity
- 14 kW
- SCOP
- 4.62 (W35)
- Sound power
- 60 dB(A)
- Refrigerant
- R32
- Price
- £3,001.16–£5,678.32
- Capacity
- 14 kW
- SCOP
- 4.6 (W35)
- Sound power
- 64 dB(A)
- Refrigerant
- R32
- Price
- ~£2,555.59
- Capacity
- 14 kW
- SCOP
- 4.8 (W35)
- Sound power
- 64 dB(A)
- Refrigerant
- R290
