Samsung EHS Mono R290 Outdoor Pump Integrated (5.25 kW)

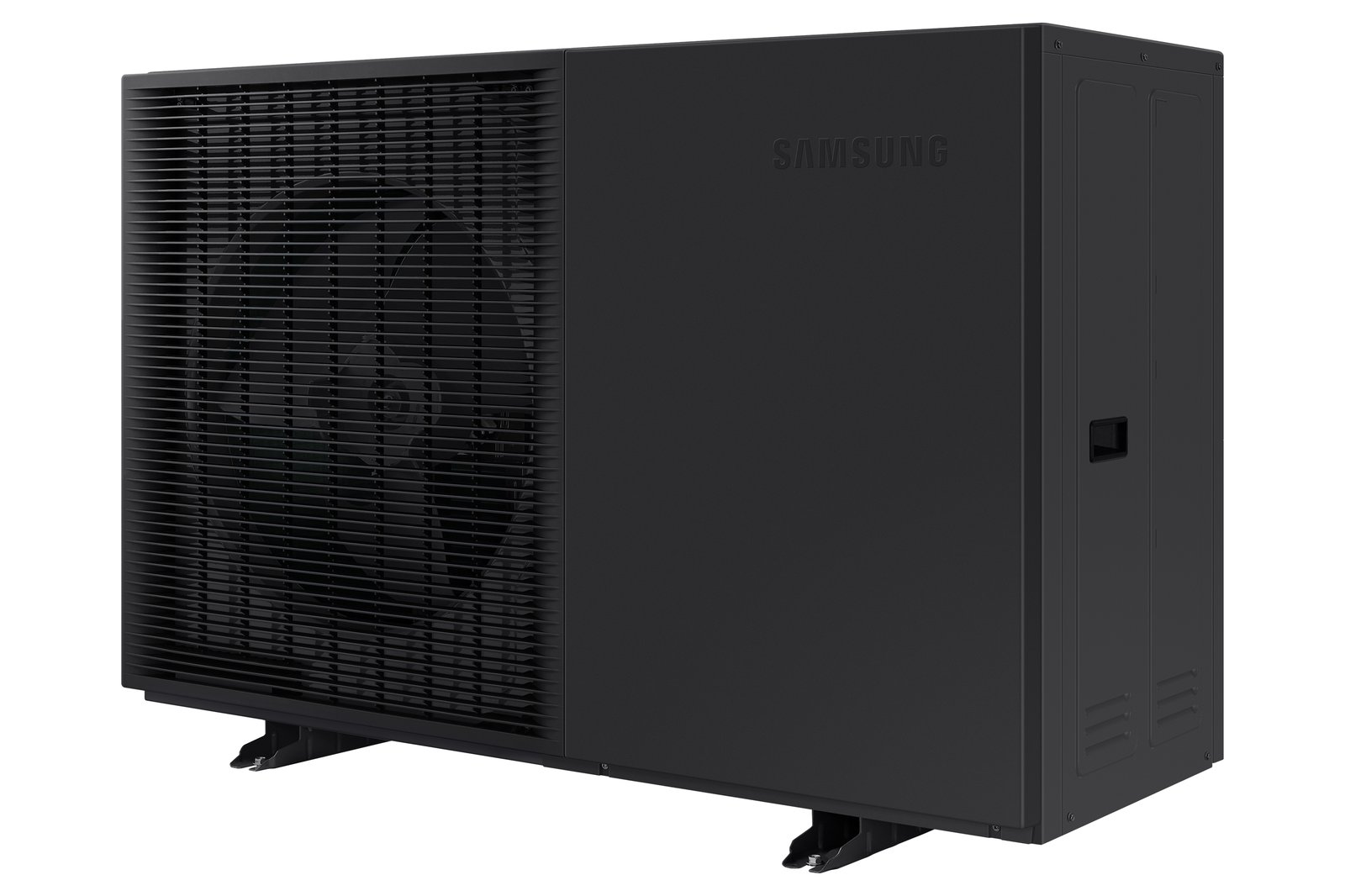

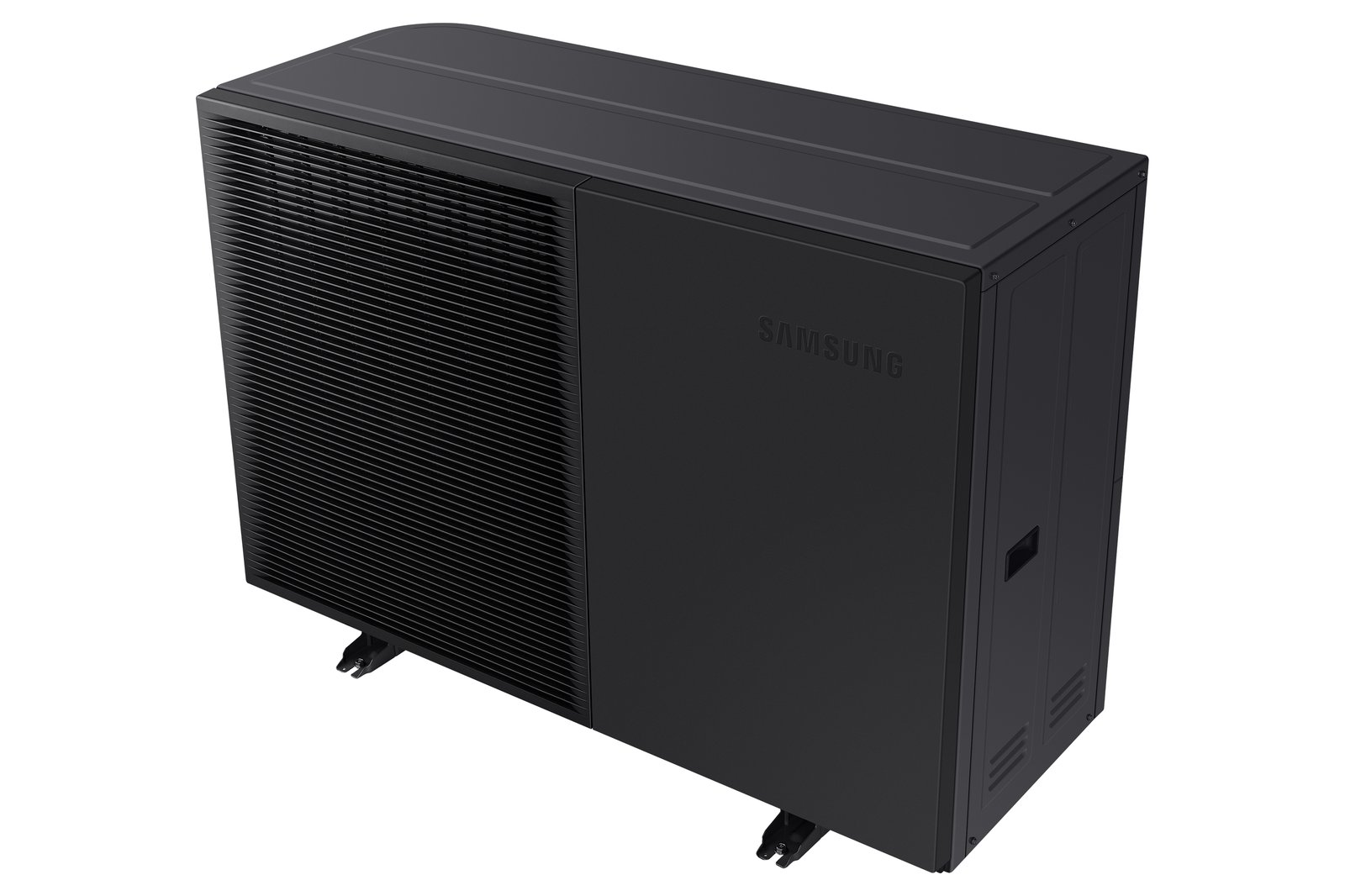

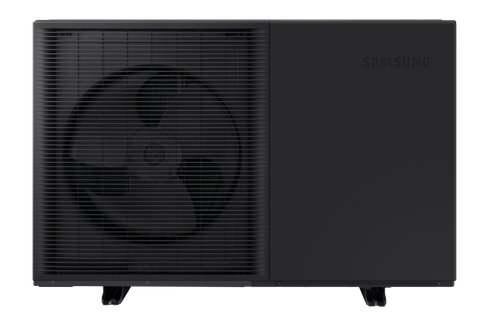

Samsung EHS Mono R290 Outdoor Pump Integrated (5.25 kW) photo 1Samsung EHS Mono R290 Outdoor Pump Integrated (5.25 kW) photo 2Samsung EHS Mono R290 Outdoor Pump Integrated (5.25 kW) photo 3
Image courtesy of Samsung · click photo to enlarge
Samsung logo

Samsung EHS Mono R290 Outdoor Pump Integrated (5.25 kW)

Specifications and technical data

✓ BUS eligibleAir Source (ASHP)ResidentialR2905.25 kW
ManufacturerSamsung
ModelEHS Mono R290 Outdoor Pump Integrated
Model codeAE050CXYBEK/EU
Heat pump typeAir Source (ASHP) All Air Source heat pumps →
ApplicationResidential All Residential heat pumps →
RefrigerantR290 All R290 heat pumps →
ModeHeating & cooling
Heating capacity5.25 kW
Max heating output (low temp)4.67 kW at A-7/W55
SCOP (heating)4.84 at W35
Operating range (air)-25 to 35 °C
Heating flow temperature15–75 °C
Electrical supply220-240V (Single Phase)
Cooling capacity5 kW
Max cooling output (high temp)5 kW at A35/W18
EER (cooling)3.9
Dimensions (H×W×D)850 × 1270 × 500 mm
Operational Weight113 kg
Sound power level55 dB(A) (Sound Power LW(A))
Price (unit only)£2,140–£2,883.96 (checked 28/08/2026)
Data added2026-07-01
Data sourceManufacturer Data Sheet
VerificationVerified by a human
Boiler Upgrade Scheme✓ BUS eligible — Listed on the Ofgem BUS Product Eligibility List (24 Sep 2026). Grant also needs an MCS-certified installer and a qualifying system design. Funding guide
PEL certificate no.011-1W0686_3
MCS certification✓ MCS listed
MCS certificate no.011-1W0686_3
MCS listingView on MCS ↗

Free data sheet (PDF) →

Check noise at a neighbour’s window (MCS 020 a) →

View manufacturer page →

Samsung EHS Mono R290 Outdoor Pump Integrated is a 5 kW air source heat pump, providing heating and cooling, using R290 refrigerant.

Where to buy (UK)

UK SupplierThe Heat Pump Warehouse
UK SupplierSecon Renewables
UK SupplierCity Plumbing
UK SupplierEco Wizard
UK SupplierThe Underfloor Heating Store

✎ Suggest a correction to this data

Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
