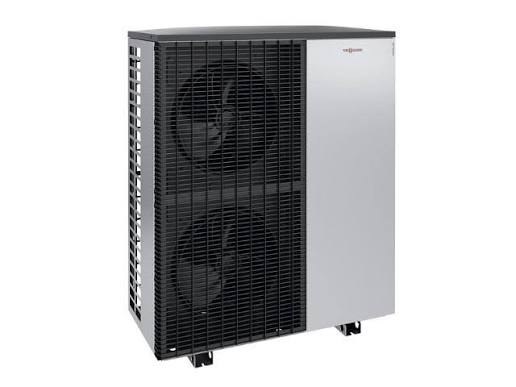

Viessmann Vitocal 200-A
Specifications and technical data
Air Source (ASHP)ResidentialR410A5.5–14.3 kW
| Manufacturer | Viessmann |
|---|---|
| Model | Vitocal 200-A |
| Model code | Vitocal 200-A 201.A16 |
| Heat pump type | Air Source (ASHP) |
| Application | Residential |
| Refrigerant | R410A |
| Mode | Heating & cooling |
| Heating capacity | 5.5–14.3 kW |
| COP (heating) | 4.5 at A7/W35 |
| Operating range (air) | from -10 °C |
| Heating flow temperature | up to 60 °C |
| Power input | 1.92 kW |
| EER (cooling) | 3.3 |
| Dimensions (H×W×D) | 1377 × 1109 × 546 mm |
| Weight | 145 kg |
| Sound power level | 35 dB(A) (Sound Power LW(A)) |
| Data added | 2026-07-02 |
| Data source | Manufacturer Data Sheet |
Notes
R410A monobloc air/water compact heat pump.
A2/W35 and A-7/W35 data also published. Rated cooling capacity A35/W18 9.5 kW. Indoor unit 370 x 450 x 880 mm, 40 kg; AWO-M-E-AC 41 kg. Maximum flow temperature up to 60°C at -10°C.
