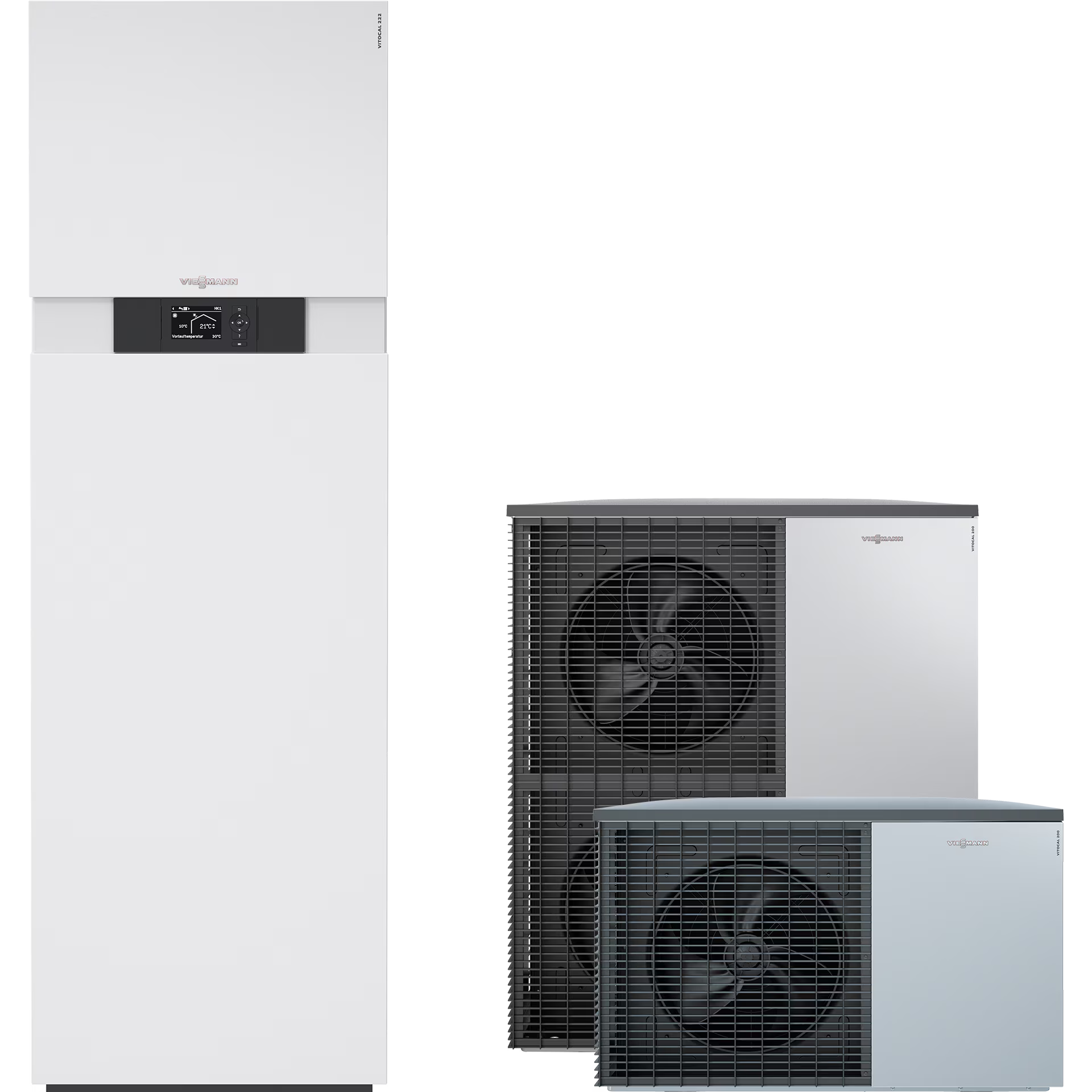

Image courtesy of Viessmann · click photo to enlarge

Viessmann Vitocal 222-A (3–6 kW)

Specifications and technical data

Air Source (ASHP)ResidentialR410A3–6 kW

Manufacturer	Viessmann
Model	Vitocal 222-A
Model code	Vitocal 222-A 221.A06
Heat pump type	Air Source (ASHP)
Application	Residential
Refrigerant	R410A
Mode	Heating & cooling
Heating capacity	3–6 kW
Max heating output (low temp)	3.11 kW at A2/W35
COP (heating)	4.72 at A7/W35
Operating range (air)	from -10 °C
Heating flow temperature	up to 60 °C
Power input	1.02 kW
Electrical supply	220-240V (Single Phase)
Cooling capacity	5.7 kW
Max cooling output (high temp)	5.7 kW at A35/W18
EER (cooling)	4.2 at A35/W18
Dimensions (H×W×D)	753 × 1109 × 546 mm
Operational Weight	102 kg
Sound power level	35 dB(A) (Sound Power LW(A))
Data added	2026-07-02
Data source	Manufacturer Data Sheet
MCS certification	✓ MCS listed — eligible for Boiler Upgrade Scheme (MCS-certified install required)
MCS certificate no.	A AWOT.M.E 221.04
MCS listing	View on MCS ↗

View manufacturer page →

Viessmann Vitocal 222-A is a 6 kW air source heat pump, providing heating and cooling, using R410A refrigerant.
