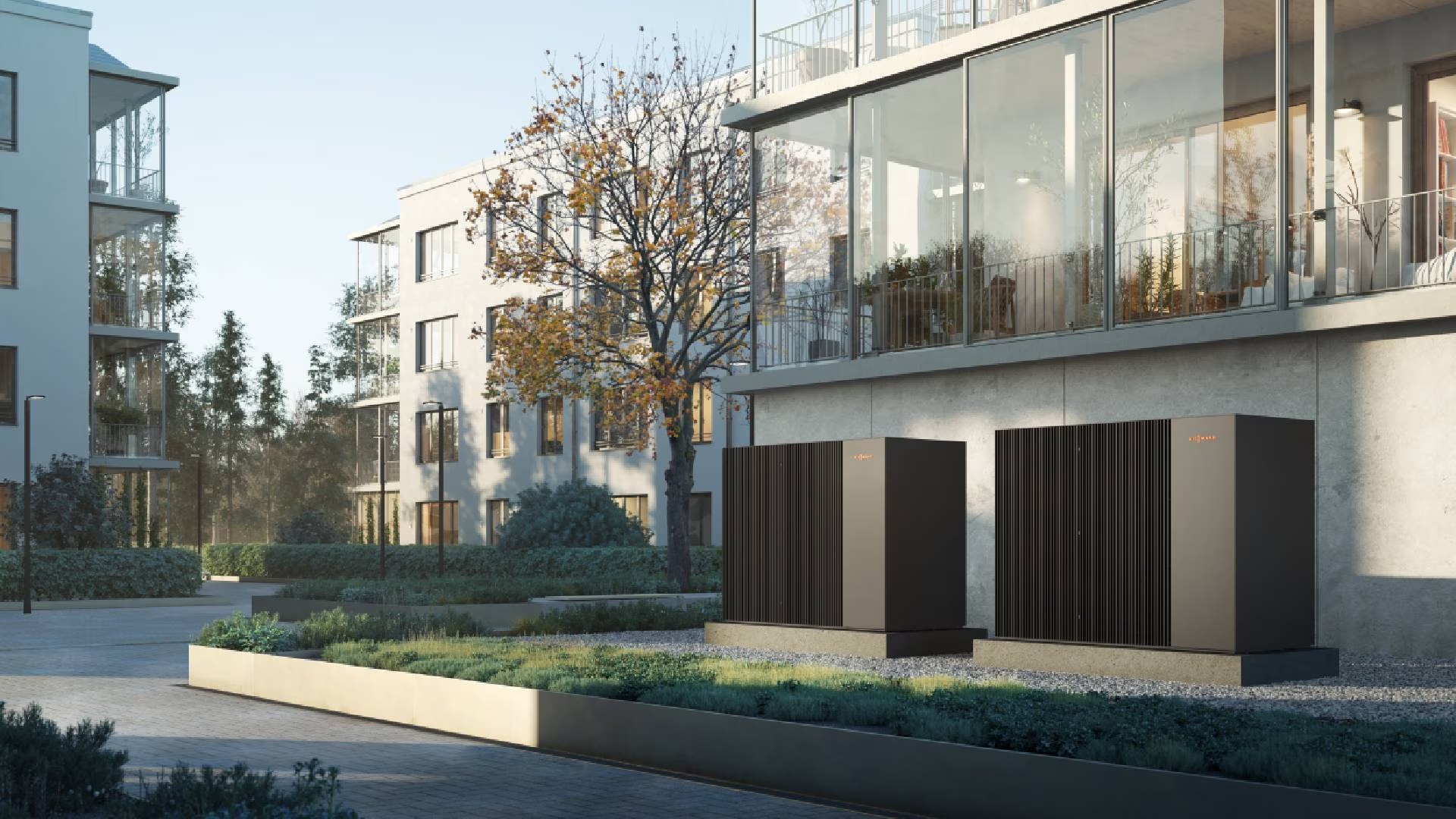

Image courtesy of Viessmann · click photo to enlarge

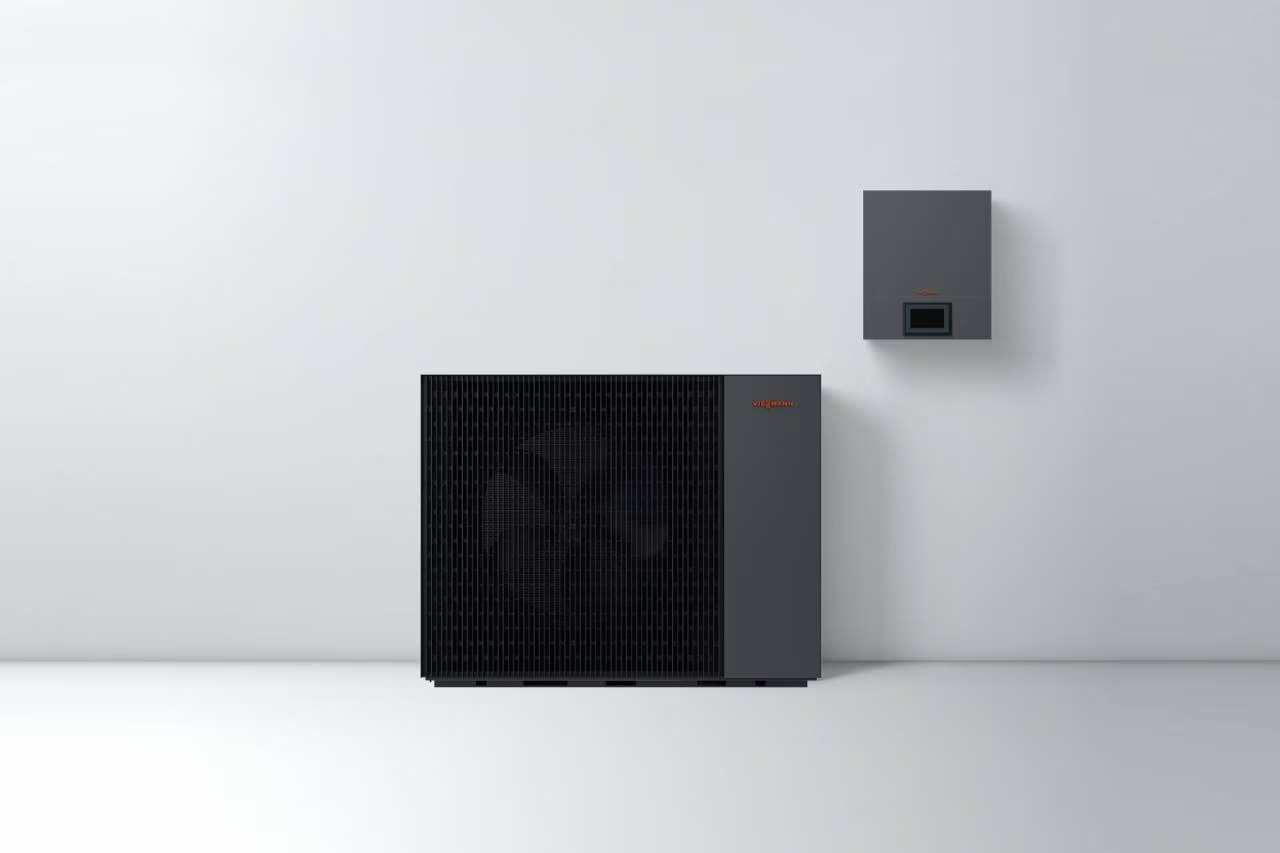

Viessmann Vitocal 250-A PRO
Specifications and technical data
✓ BUS eligibleAir Source (ASHP)CommercialR29039.5 kW
| Manufacturer | Viessmann |
|---|---|
| Model | Vitocal 250-A PRO |
| Model code | AWO-AC-AF 251.A40 |
| Heat pump type | Air Source (ASHP) All Air Source heat pumps → |
| Application | Commercial All Commercial heat pumps → |
| Refrigerant | R290 All R290 heat pumps → |
| Mode | Heating & cooling |
| Heating capacity | 39.5 kW |
| Max heating output (low temp) | 39.5 kW at A7/W35 |
| COP (heating) | 3.8 at A7/W35 |
| Heating flow temperature | up to 70 °C |
| Electrical supply | 380-415V (Three Phase) |
| Cooling capacity | 26 kW |
| Max cooling output (high temp) | 26 kW at A35/W7 |
| Dimensions (H×W×D) | 1570 × 1900 × 940 mm |
| Operational Weight | 550 kg |
| Sound power level | 69.8 dB(A) (Sound Power LW(A)) |
| Data added | 2026-07-02 |
| Data source | Manufacturer Data Sheet |
| Verification | Verified by a human |
| Boiler Upgrade Scheme | ✓ BUS eligible — Listed on the Ofgem BUS Product Eligibility List (24 Sep 2026). Grant also needs an MCS-certified installer and a qualifying system design. Funding guide |
| PEL certificate no. | 011-1W0833_01 |
| MCS certification | ✓ MCS listed |
| MCS certificate no. | 011-1W0833_01 |
| MCS listing | View on MCS ↗ |
Check noise at a neighbour’s window (MCS 020 a) →
Viessmann Vitocal 250-A PRO is a 39.5 kW air source heat pump, providing heating and cooling, using R290 refrigerant.
Where to buy (UK)
| UK Supplier | Secon Renewables |
|---|---|
| UK Supplier | Pirate Heating Supplies |
| UK Supplier | Beet BG |
| UK Supplier | GetPlumb |
| UK Supplier | Solar Trading |
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
