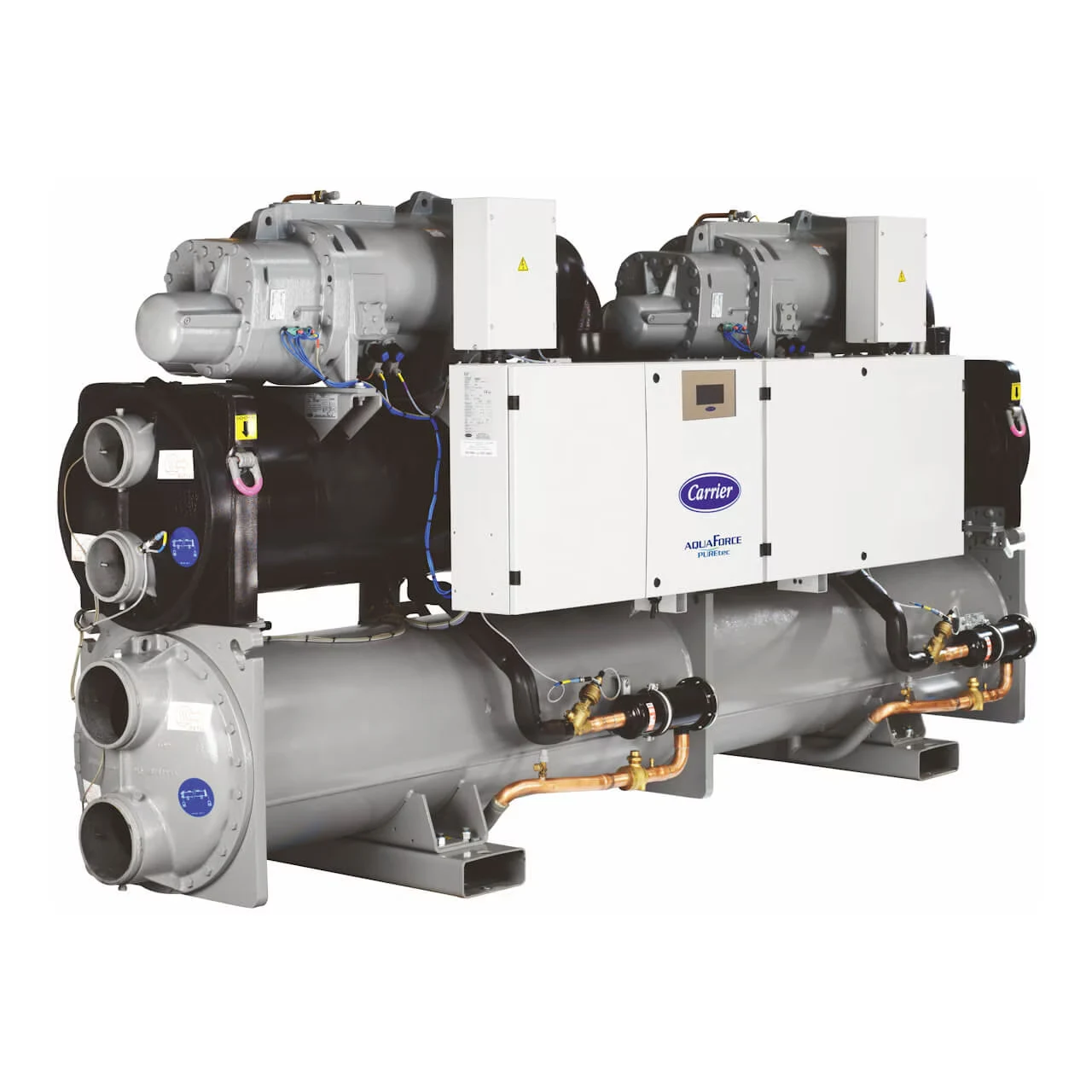

Carrier 30XW-PZE (322 kW)

Specifications and technical data

Also known as: AquaForce 30XW-PZE

Water Source (WSHP)CommercialR1234ze322 kW

Manufacturer	Carrier
Model	30XW-PZE
Model code	30XWHPZE 301
Heat pump type	Water Source (WSHP)
Application	Commercial
Refrigerant	R1234ze
Mode	Heating & cooling
Heating capacity	322 kW
Max heating output (low temp)	315 kW at W10/W55
COP (heating)	6.12 at W10/W35
SCOP (heating)	6.2 at W35
Heating flow temperature	3.3–55 °C
Power input	52.61 kW
Electrical supply	380-415V (Three Phase)
Cooling capacity	375 kW
Max cooling output (high temp)	271 kW at W35/W7
EER (cooling)	5.28 at W35/W7
SEER (cooling)	6.43 at W7
Dimensions (H×W×D)	1567 × 928 × 2724 mm
Operational Weight	2157 kg
Sound power level	93 dB(A) (Sound Power LW(A))
Data added	21/06/2026
Data source	Manufacturer Data Sheet

View manufacturer page →

Carrier 30XW-PZE is a 322 kW water source heat pump, providing heating and cooling, using R1234ze refrigerant.

✓ Manually verified by Heat Pump Database

✎ Suggest a correction to this data

Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
