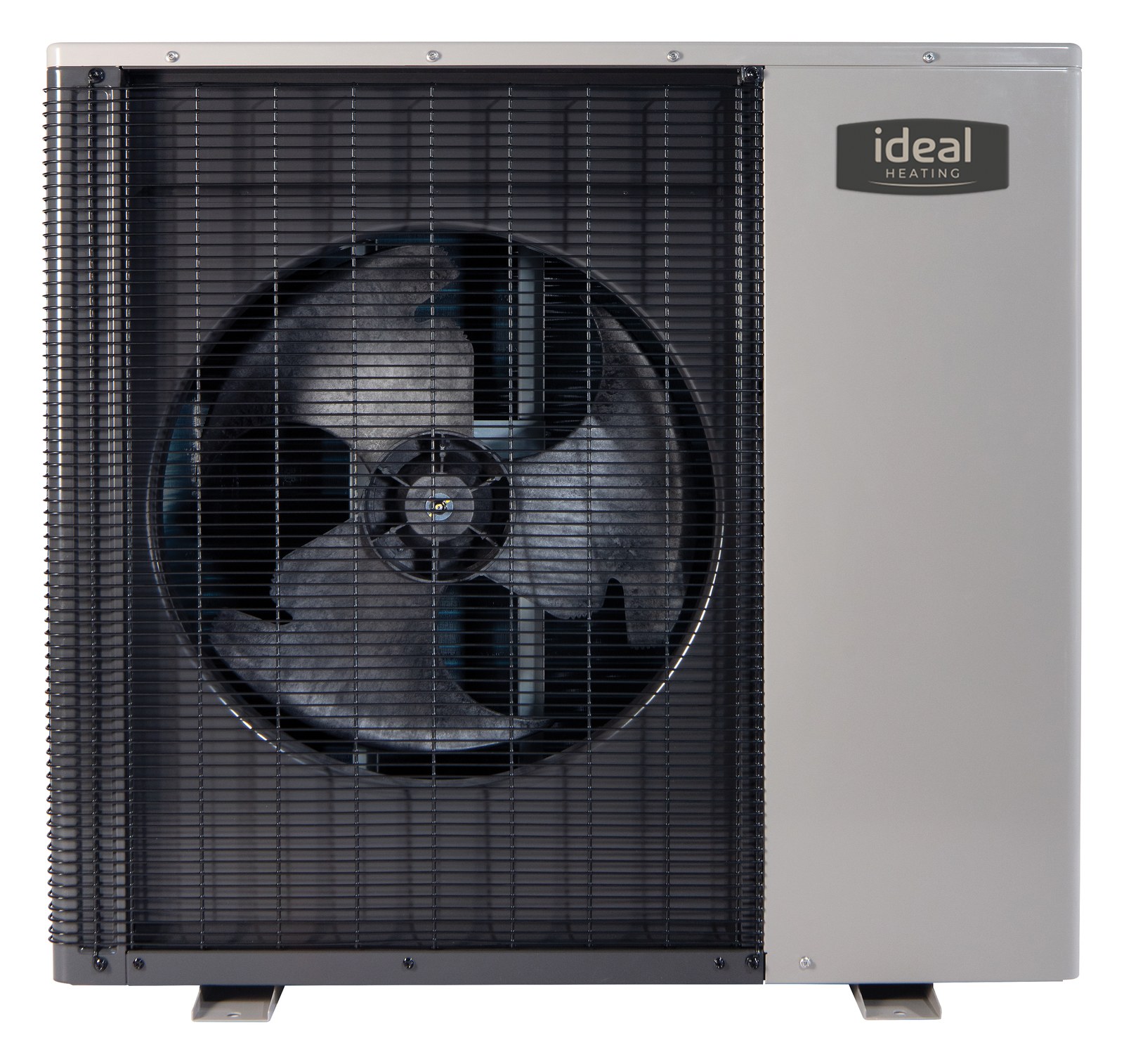

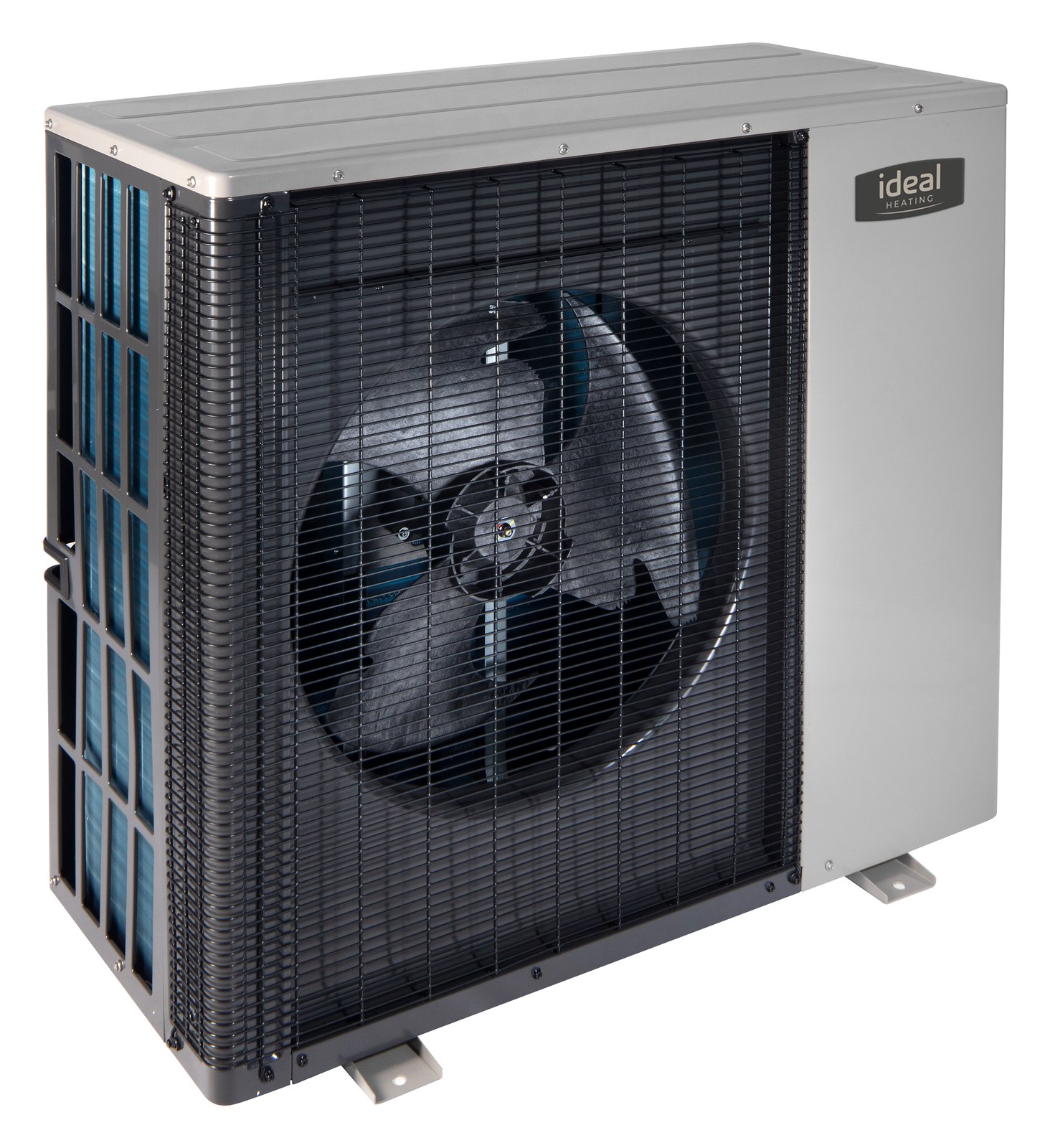

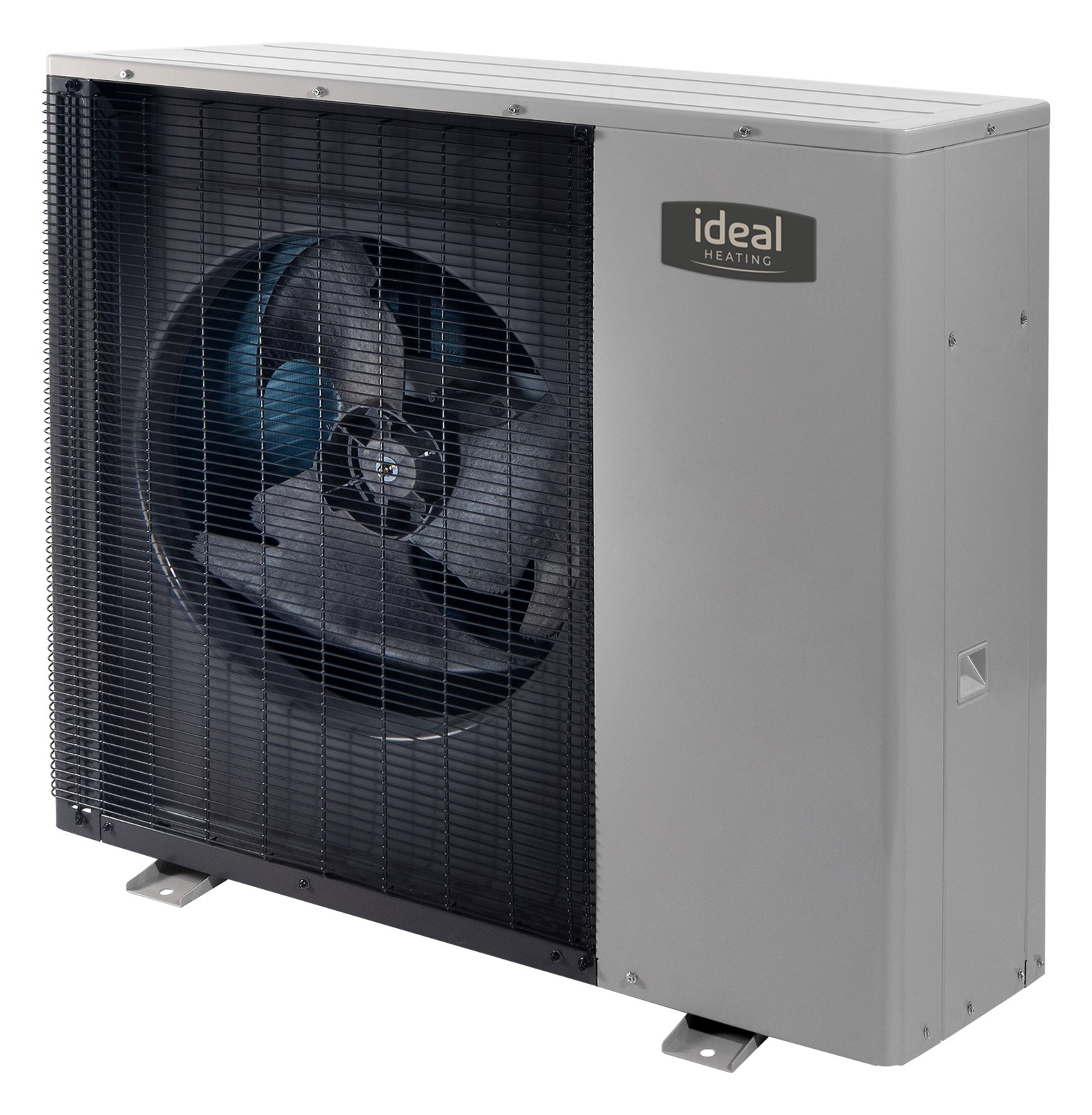

Ideal Heating Logic Air 10kW
Specifications and technical data
Air Source (ASHP)ResidentialR3210.3 kW
| Manufacturer | Ideal Heating |
|---|---|
| Model | Logic Air 10kW |
| Model code | AH750667 |
| Heat pump type | Air Source (ASHP) |
| Application | Residential |
| Refrigerant | R32 |
| Mode | Heating only |
| Heating capacity | 10.3 kW |
| COP | 4.9 at A7/W35 |
| SCOP | 5.19 at W55 |
| Operating range (air) | -24 to 46 °C |
| Flow temperature | up to 55 °C |
| Power input | 2.1 kW |
| Dimensions (H×W×D) | 1008 × 1095 × 518 mm |
| Weight | 110 kg |
| Sound power level | 55 dB(A) (Sound Power LW(A)) |
| Data added | 2026-06-27 |
| Data source | Manufacturer Data Sheet |
Notes
Logic Air monobloc air source heat pump for low-carbon residential heating and domestic hot water.
Logic Air 10kW. Heating A7/W35 capacity 10.3 kW, power input 2.1 kW, COP 4.9. A7/W55 capacity 10.3 kW, power input 3.42 kW, COP 3.01. SCOP 35/55°C 5.19/3.73; ηs 35/55°C 205/146; ErP 35/55°C A+++/A++. R32 charge 1.47 kg. 28 mm heating flow/return connections. Certification EN14511:2018, EN14825:2016, EN12102-1:2022.
Where to buy (UK)
| UK Supplier | Secon Renewables |
|---|
✓ Manually verified by Heat Pump Database
✎ Suggest a correction to this data
Data is compiled from manufacturer sources and may contain errors or gaps. Always confirm specifications with the manufacturer before making decisions.
